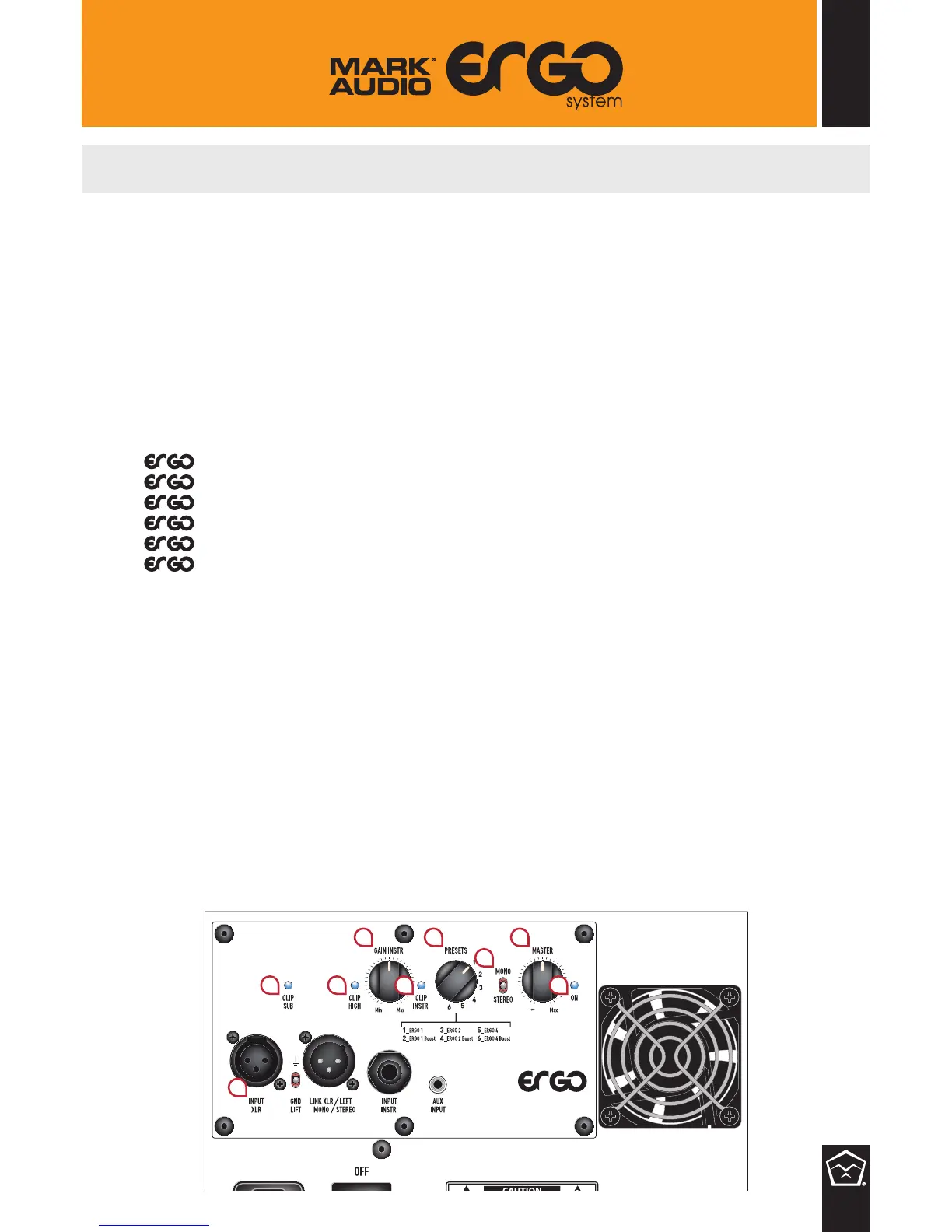

SUBWOOFER CONTROL PANEL – ERGO 802
CLIP SUB (1) and HIGH (2)
The clip LEDs allow you to set the optimal level of the signal sent to the system’s speakers.
To nd the optimal level back off the power amp level (MASTER) so that the LEDs rarely
turn on.
GAIN INSTRUMENT (3)
This knob regulates the gain level of the INSTRUMENT input.
INSTRUMENT CLIP (4)
This clip LED allows you to set the optimal gain level of your signal due to instrument
input.
PRESETS (5)
The selector allows you to choose between 6 different equalization settings, optimized
for the use with the different systems:
System 1 (1)
System 1 with Boost (2)
System 2 (3)
System 2 with Boost (4)
System 4 (5)
System 4 with Boost (6);
MONO/STEREO SWITCH (6)
When a stereo signal is connected to the AUX Input and you’d use two Markaudio system
in STEREO conguration selecting this switch on Stereo mode allows to send one of the
two channel of the stereo signal to the second system via XLR LINK.
Select the switch in MONO in case of only one Markaudio System or if you’d link two
systems in MONO mode..
MASTER LEVEL (7)
This is the MASTER Volume level.
ON (8)
Power status indicator LED.
INPUT XLR (9) XLR Balanced Input.
The XLR 3-pole female jack is electronically balanced (hot pole: #2). You can use
unbalanced sources only if your cables have pole 3 jumpered to pole 1.
Important: when powering up, turn on your sound source (CD player and mixer, for
example) before turning on the MarkAudio cabinets. When powering off, turn the cabinets
off rst.
