DESCRIPTION AFTER-HEATER CONNECTION
Available types:
Article code Capacity Power consumption Tube diameter Min. airow
5997460 1 kW 4.4 A Ø 200 mm 170 m
3
/h
5997461 2 kW 8.8 A Ø 250 mm 270 m
3
/h
5997462 3 kW 13.2 A Ø 350 mm 520 m
3
/h
Installation of a after-heater on an ERV
1. Secure the heater in the outgoing airow from the ERV (Supply)
2. Note the direction of airow, indicated by an arrow on the heater.

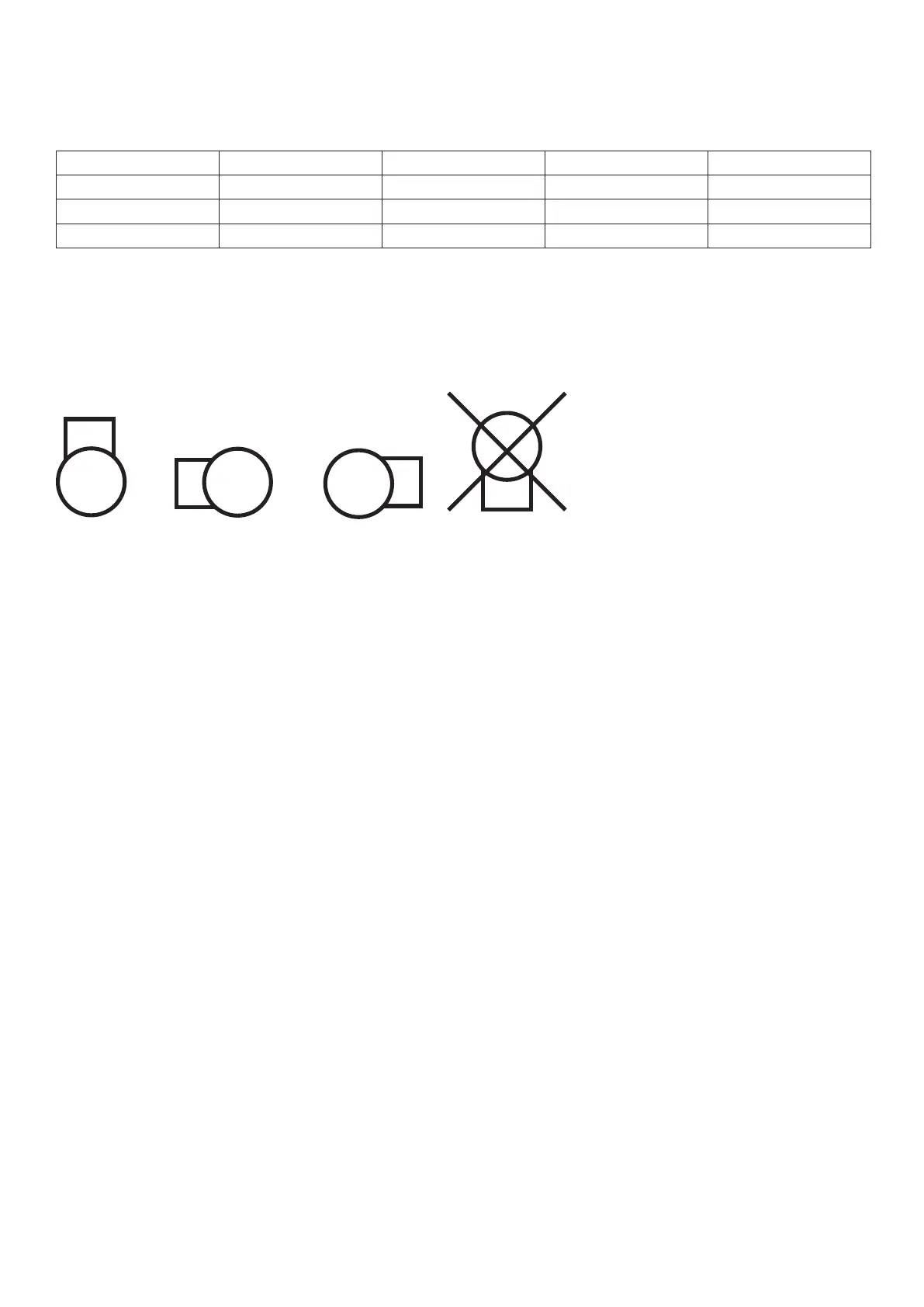

3. Position the heater as shown in the icons below:
(electrical connection box downwards not allowed due to operation maximum thermostat)
4. Place the supplied temperature sensor after the heater in the duct in the air ow.
Distance: 3 times the pipe diameter. Place the probe in the center of the tube.
