4
1
2

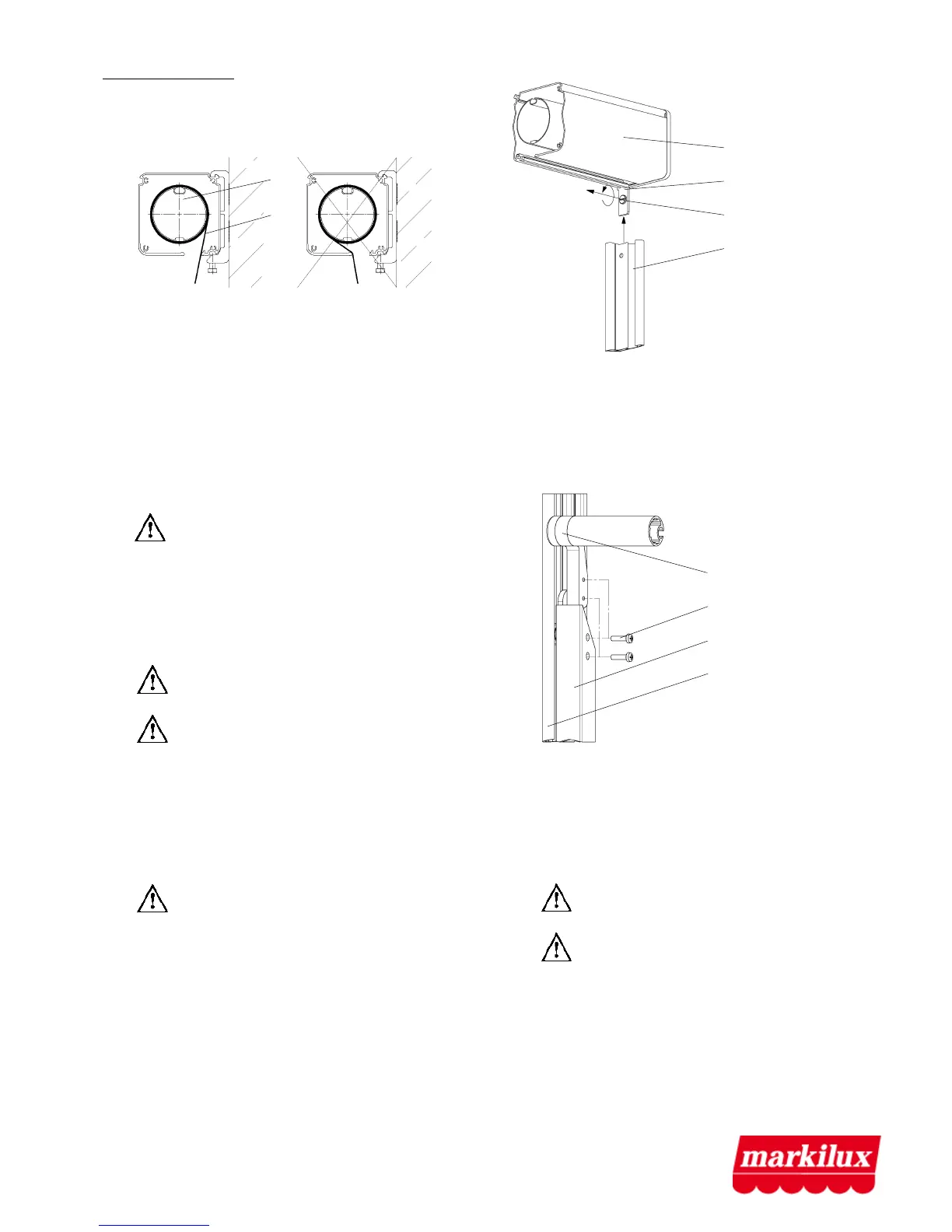

Sense of rotation of the fabric roller during the
retraction process:
CORRECT! WRONG!
1 = fabric roller
2 = fabric
When the awning is extended, at least half a turn of
the fabric has to remain on the fabric roller as secu-
rity! Never set the end position of the motor in such
a way that the fabric unwinds completely.
We cannot assume any responsibility for damages
resulting from wrong settings.
4. Mounting / suspension of awning (single
unit)
4.1 Remove protective cover and check individual
parts.
Attention: There is tension on the slide
mechanisms! Do not yet remove the tubular
foil.
4.2 Mark the position of the rails on the mounting
surface, mark drillings on the undersurface and
the angled guide rails (only for reveal mount-
ing) and make drillings.
Attention: Observe the drilling type for
niche mount.
Attention: The angled guide rails
have to be mounted parallel to each other and
at a right angle to the cassette (measure
drillings diagonally).
4.3 For units with interior operation:
Mark drillings for drive pin and console on the
drive side according to the supplied template
and drill hole.
Attention: The inside laying is pivoted for
tension-free connection with the drive rod..
adjustment range to horizontal level:
about 0° downwards
about 30° upwards
4.4 Before mounting the mini-awning it has to be
assembled partly:
Slide the angled guide rails into the provided
anchorages at the casing (lateral cover) and
unscrew the flat-head screw so that it.
4.5 Screw the mini-awning in its fixation points in
the angled guide rails to the undersurface.
4.6 Extend awning fabric and and fix downpipe
bracket to the slide mechanism. Afterwards re-
tract the awning fabric again until it is taut.
4.7 Remove the foils from the slide mechanisms
and extend the mini-awning.
4.8 Fix the fabric guide tube to the slide mecha-
nism. For this the drop-arms have to be
pressed in direction of the rails so that there is
no tension on the fabric.
Attention: The awning fabric has to be
guided from behind the fabric guide tube..
Attention: The guide tube bracket with the
guide tube has to point in direction of the
fabric towards the back.
casing
lateral covers
flat-head screw
guide rail
