2

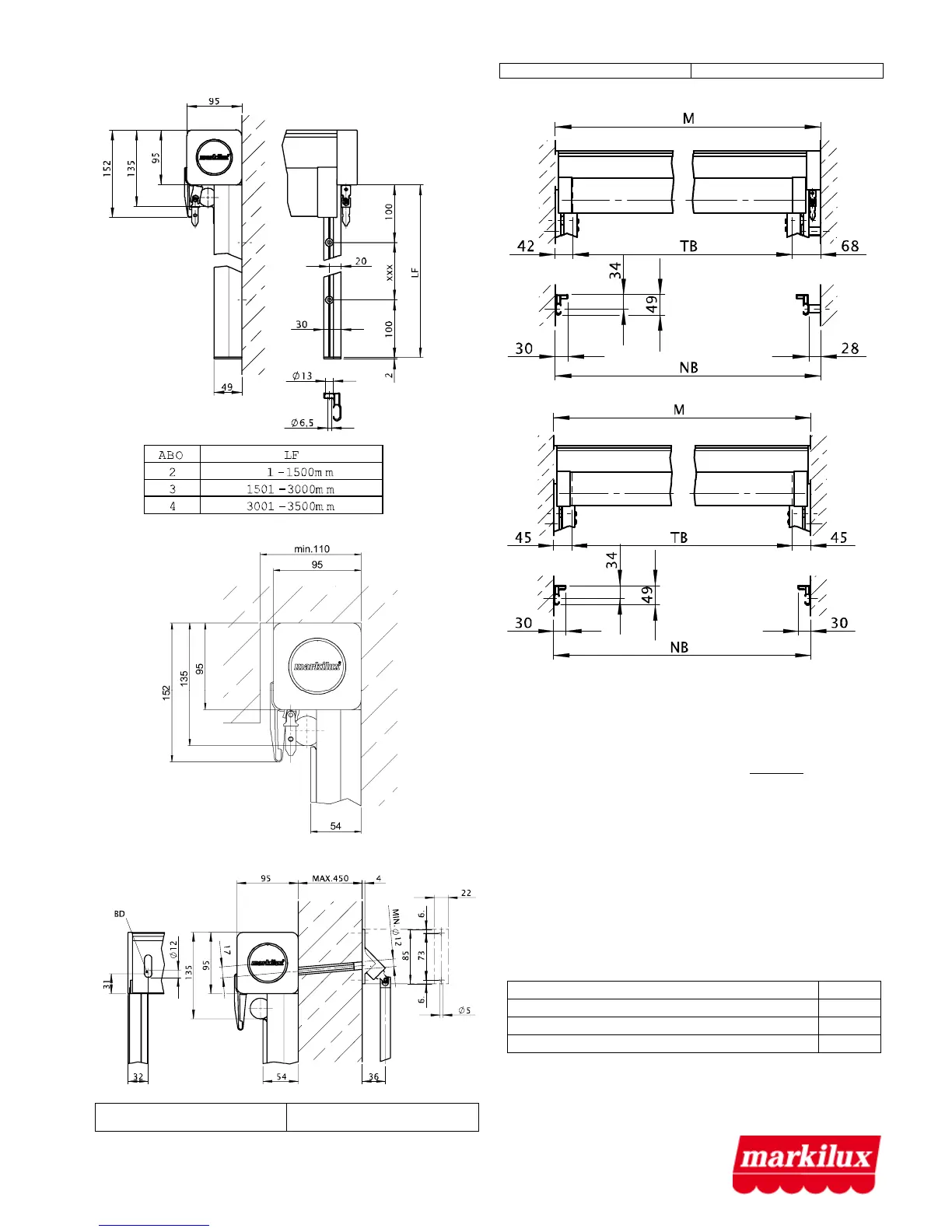

Wall mount
Niche mounts
Wall mount with interior operation
BD = drilling horizontal lead-
through
M = awning width
NB = niche width
TB = fabric width
Niche mount drive resp. motor
2. Recommendations and information
about
mounting the rails
This mini-awning was delivered without mounting
bolts, as different undersurfaces require different
types of mounting material.
The mounting materials have to be designed in
such a way that they divert the resulting forces
safely into the mounting undersurface. A calculated
proof of the forces at the mounting screws based
on 70 N per m² awning fabric is required.
Depending on the subsurface (e.g. steel carrier,
wood etc.), different mounting systems have to be
used.
Maximal screw sizes for mounting:
oval-head screws M6x...
slotted pan-head screws 6.3x...
particle board screws 6.0x...
wood screws 6.0x...
The angled guide rails are already drilled for wall
mounting. If a reveal mounting is requested, addi-
