7

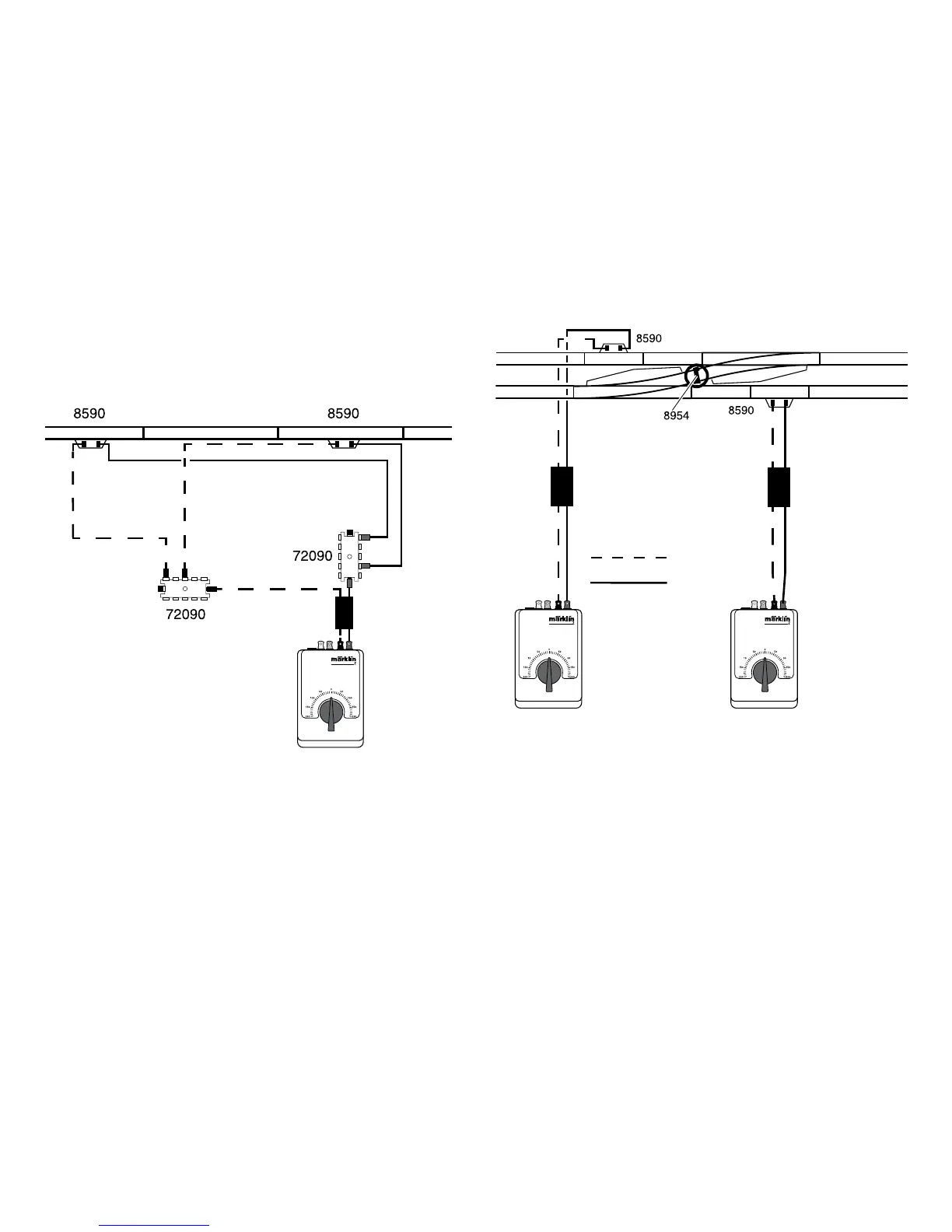

Several feeder Tracks
Onmediumsizeandlargerlayoutspowermustbefedtothe
trackatseveralpoints.
Several track circuits
Inordertobeabletocontrolseverallocomotivesseparate-
ly,thelayoutmustbedividedintoseveraltrackcircuitsby
installingrailinsulators(8954).Eachtrackcircuithasitsown
Transformerwithatleastonefeedertrack.Pleasebesure
toobserveatalltimesthesafetyprecautionsgivenabove
whenusingseveraltransformers.
red
brown
Installingthe8954
insulatedrailjoiners
Connecting Lights or Solenoid Accessories
Modelrailroadlightsorsolenoidaccessoriessuchasturn-
outorsignalmechanismsareconnectedtotheconstant10
voltACcurrentoutputonatransformer.Allofthetransfor-
mersdescribedintheseinstructionshaveapairofterminals
forthisconnection(yellow+greyterminalclips).
Modelrailroadlightsinbuildingsand/orstreetlightsare
connecteddirectlytotheyellowterminalclipandgrey
terminalclipontheTransformer.
