13

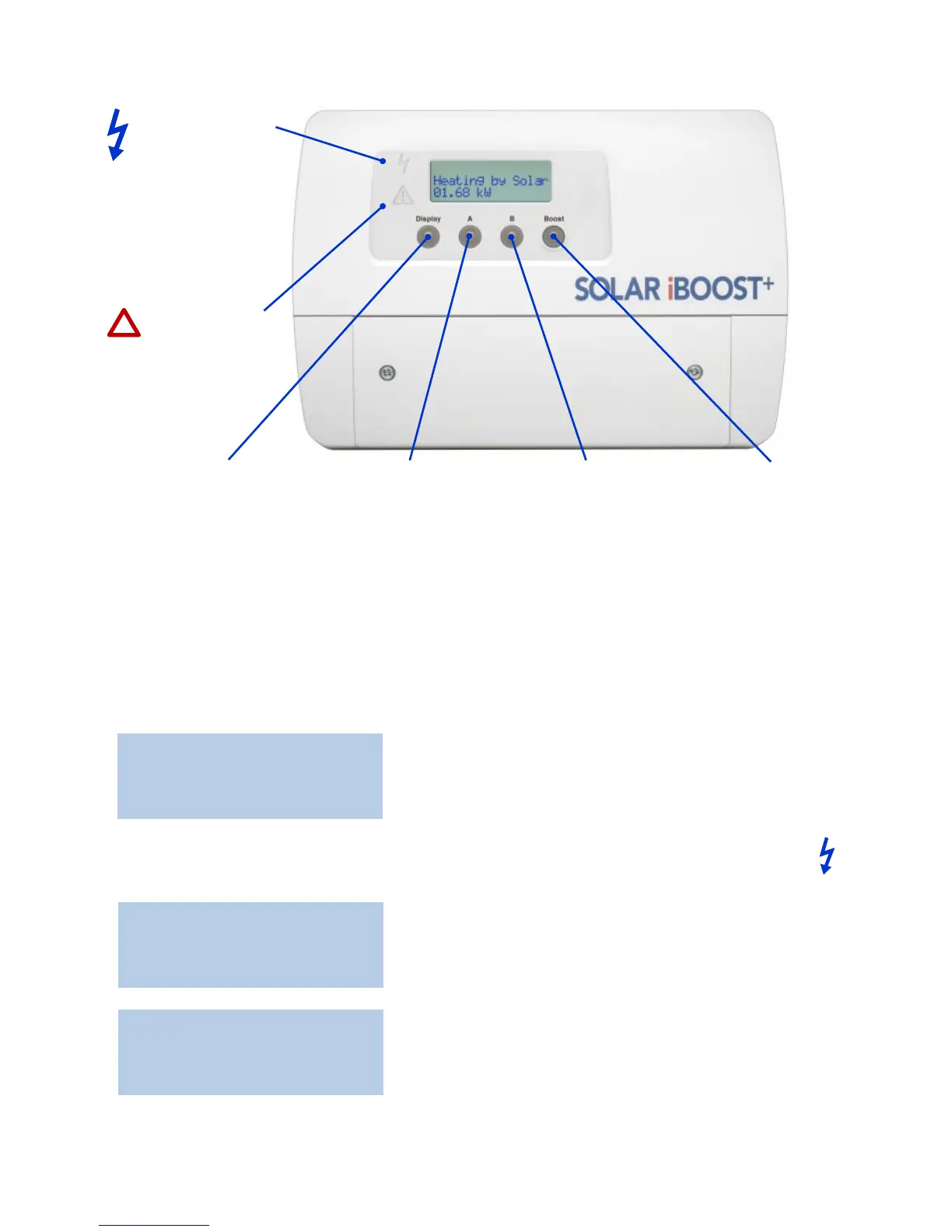

User Operation
Display
Each press
moves through
the Display Cycle
(see Display
Cycle)
B
Enables the
sender pairing
process (see
Pairing the
Sender)
A
Enables
programming
mode (see
Programming)
Boost
Provides a Boost
of Hot Water (see
Manual Boost)
Indicates a
problem with
the unit when lit (see
Trouble Shooting)
Normal Operation
Heating by Solar
01.45 kW Htr1
Water Tank
HOT
Water Heating
OFF
Solar iBoost+ is diverting energy to the hot water tank.
The instant value of energy being diverted is shown
together with an indication of the immersion heater
currently being supplied (if two heaters are connected
will switch between Heater 1 and 2).
When energy is diverted the blue symbol flashes:
Shown when the unit is attempting to divert energy to
the immersion heater but tank has reached maximum
temperature and switched off.
Flashes when
energy is being
diverted to the
immersion heater.
Symbol is permanently
lit when any boost
function is on
These messages will be overridden when other functions such as timed or manual boost
are active.
During normal operation the unit will show one of the following displays:
There is no excess generation for the Solar iBoost+ to
divert to the hot water tank.
