Marmitek IR CONTROL 8 - Contents of the Package; Installation

2. CONTENTS OF THE PACKAGE
3. INSTALLATION
1. STATUS Connection for a STATUS power adapter (not supplied)
2. POWER Connection for the POWER power adapter (supplied)
3. (INPUT) Connection for max. 3 IR receiver(s) (1 x supplied)
4. (EMITTERS 1 till 4) Connection for max. 4 IR Extension cables with each 2 IR LEDs.
(2 x supplied)
5. Fastening holes for stable assembling of the IR Module on a smooth underground.
4 © MARMITEK
V+
G
ST
IR
1
2
3
4

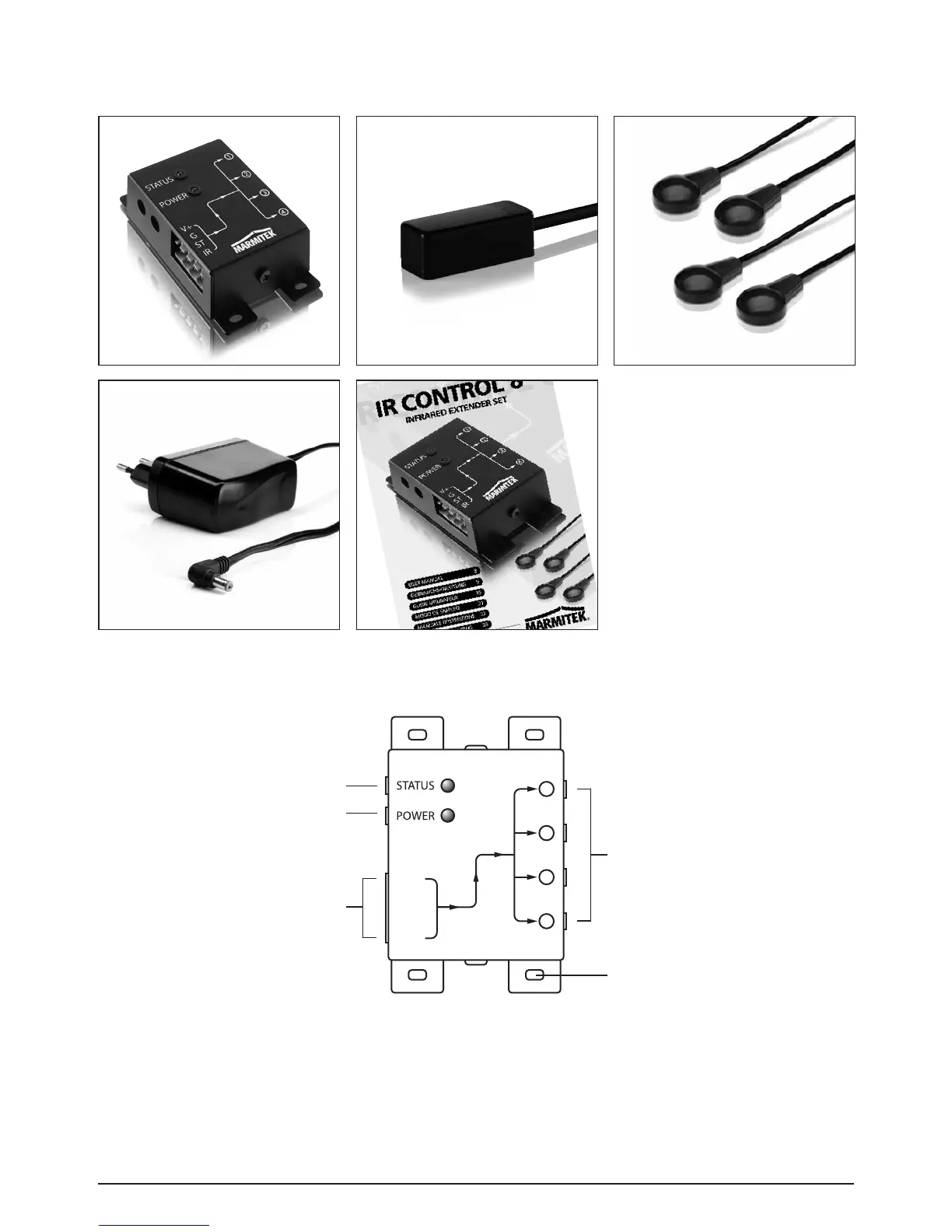

A. 1 x IR Module
B. 1 x IR Receiver
C. 2 x IR Extension cable
with 2 IR LEDs
D. 1 x Power adaptor
E. 1 x Manual
AB C
DE
Picture 1
1
2
3
4
5
