Inserting the Stencil
Board
Natural oil board, with a thickness of .015" (0.38 mm), is recommended for use with 1"
(25.4 mm), 3/4" (19.05 mm), and 1/2" (12.7 mm) machines and for use with Marsh
Fountain Roller, Fountain Brush or Spray Inks. Use Lightweight oil board .007" (0.18 mm)
with 1/4" (6.35 mm) machines. For information on Marsh inks, please call your Marsh
distributor or Marsh Company and order the Marsh Inks Technical Information Catalog
(part number P-2920). To insert the oilboard, refer to the following steps and Figure B.
1. Move the release lever to the right. This drops the lower feed roller assembly and
allows space for the insertion of the oilboard.
2. Position the oilboard so that the top edge covers the punch center lines and then
align the bottom edge of the oilboard with the appropriate guide line. See Figure B.
The left edge of the oilboard may align with the left side of the guide line markings.
If you need a wider left margin you may align the left edge of the oilboard with one
of the punch center lines. See Figure B.
3. When the oilboard is in position, push the release button. The release lever snaps
back to its original position and raises the lower feed rollers to secure the stencil
board.

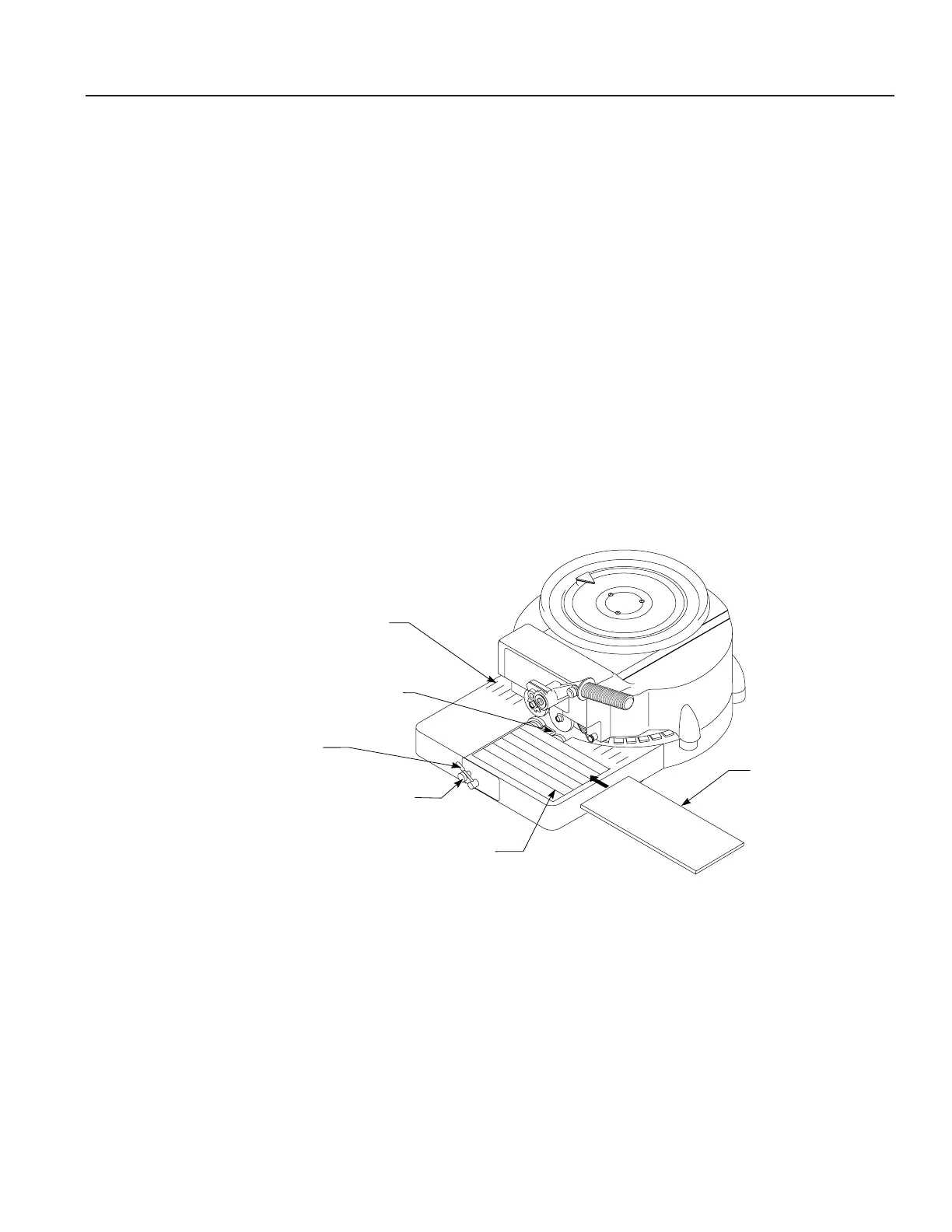

Figure B
Figura B
Release Lever
Levier de dégagement
Palanca de liberación
Oilboard
Carton huilé
Cartulina de estarcido
Guide Lines
Repères de positionnement
Líneas de guía
Lower Feed Roller Assembly
Ensemble des rouleaux d’alimentation inférieurs
Conjunto de rodillos de avance inferiores
Punch Center Lines
Repères de centrage de la découpe
Líneas centrales de punzonado
Release Button
Le bouton de dégagement
El botón de libe-ración
