8CODE100 & CODE100H Service Manual
BOOK-80010-01 | M3390.054

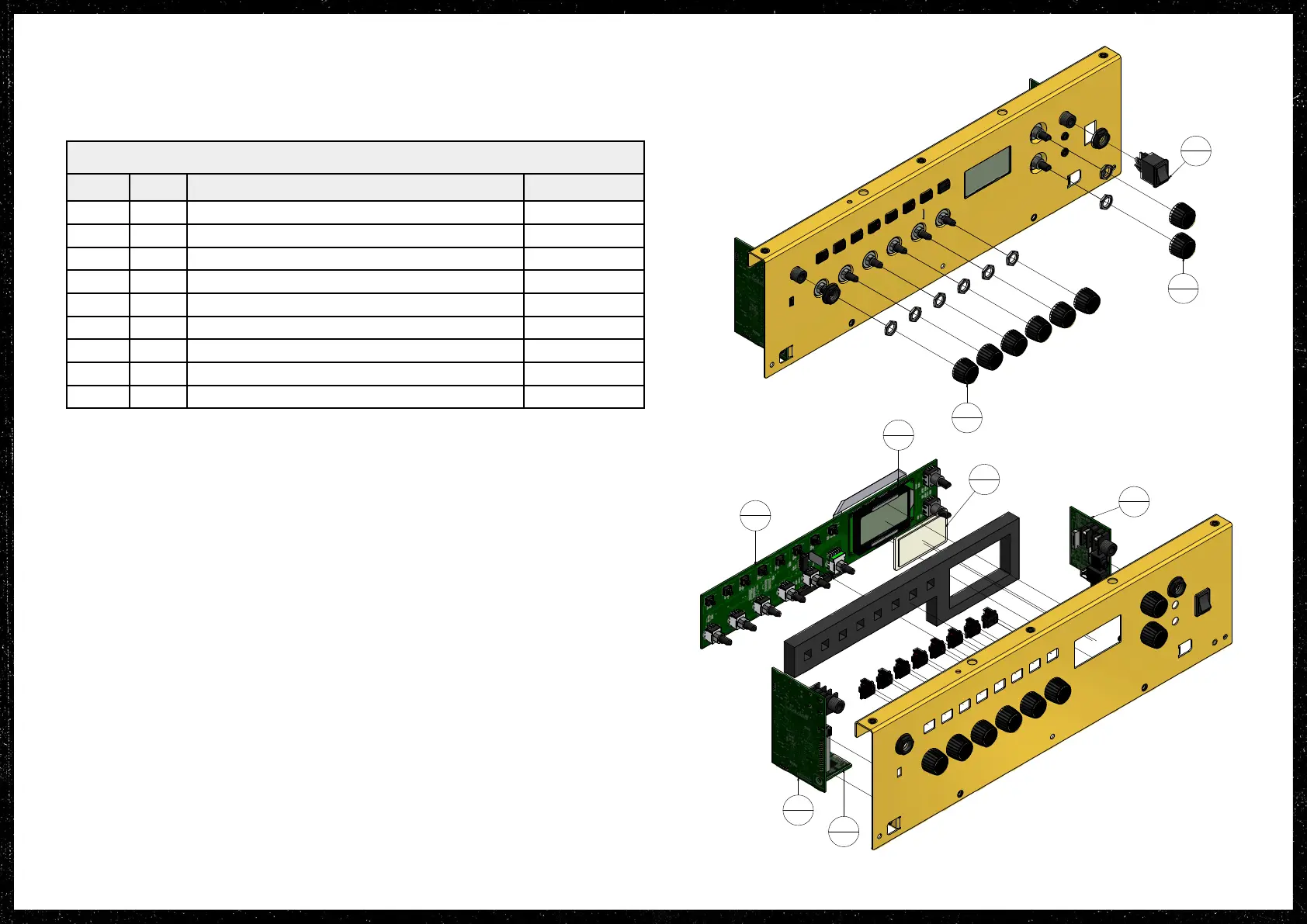

AMP ASSEMBLY
PARTS LIST
ITEM QTY DESCRIPTION STOCK NO.
2 1 LCD WINDOW LENS LCDW-00002
3 1 POWER SWITCH PS8A REF. TABLE 6
4 1 FRONT PANEL PCB PCBA-90049
5 1 BIG LCM WITH FFC LCDD-00002
15 6 BROWN BODY, GOLD CAP KNOB REF. TABLE 4
16 2 BROWN BODY, GOLD CAP KNOB, ENCODER REF. TABLE 4
17 1 FS HEADPHONE PCB PCBA-90008
18 1 DSP PCB PCBA-90033
19 1 BLUETOOTH PCB PCBA-90034
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
SHEET
1
OF
2
DRAWN
CHECKED
QA
MFG
APPROVED
MPoderys
03/03/2020
DWG NO
MD116D100-10-00 FOR SERVICE MANUAL
TITLE
SIZE
D
SCALE
REV
1
15
6
16
2
3
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
SHEET
2
OF
2
DRAWN
CHECKED
QA
MFG
APPROVED
MPoderys
03/03/2020
DWG NO
MD116D100-10-00 FOR SERVICE MANUAL
TITLE
SIZE
D
SCALE
REV
1
19
1
18
1
4
1
5
1
2
1
17
1
To Next Page
