ADORN USER GUIDE V1.0
ADORN USER GUIDE
ADORN Ceiling Deployment
Hole Cut-outs
ADORN ACS-40TS 197mm (7.75”) diameter
ADORN ACS-55TS, ACS-55T 222mm (8.74”) diameter
Hole cut-out templates are supplied with each speaker.

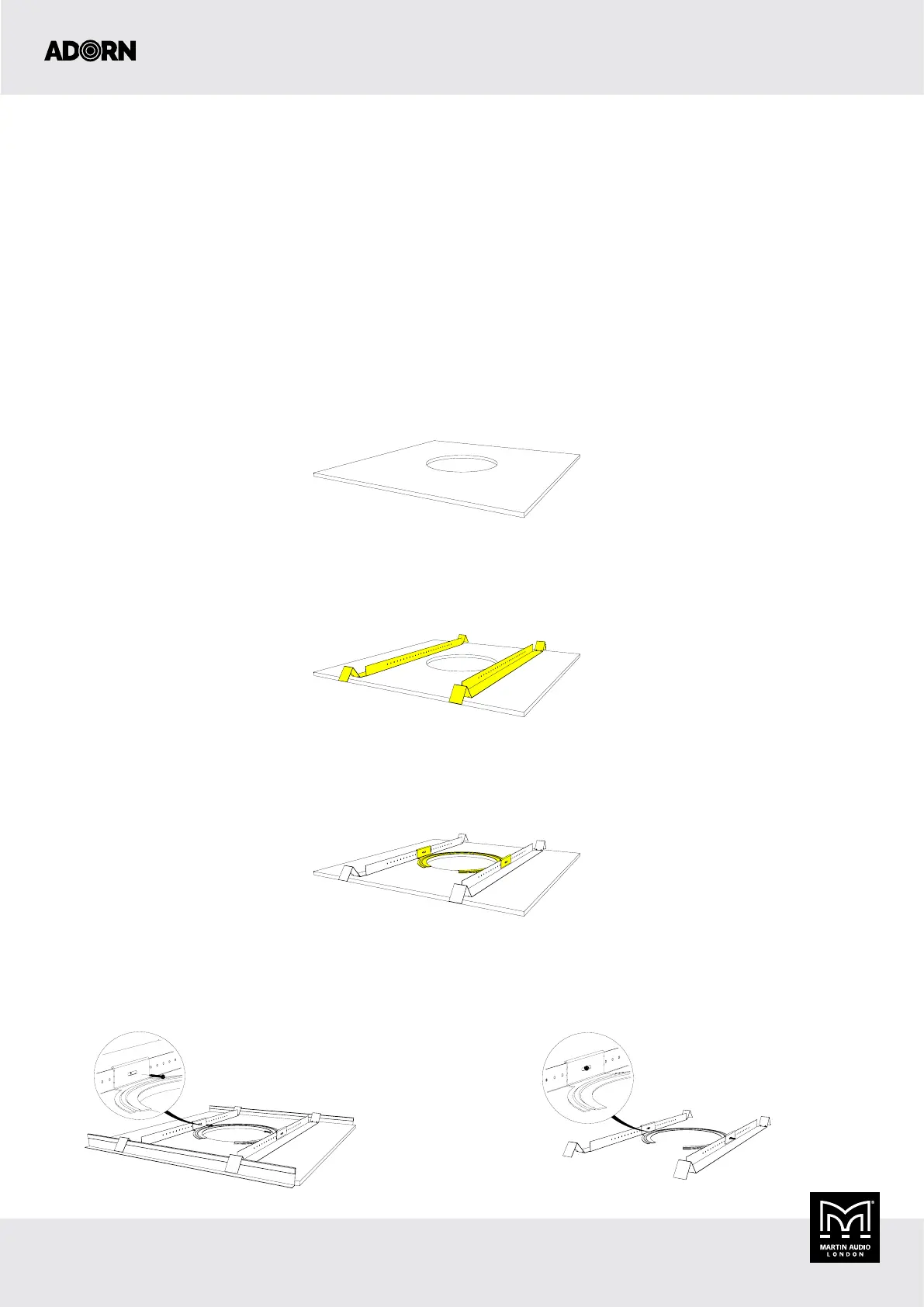

Suspended Ceilings
The tile rails and C bracket are intended to be used with suspended/false ceilings.
First, remove the ceiling tile and cut the required hole in the centre of the tile.
Place the tie rails either side of the hole orientate as shown ensuring that the ends align with the edge of the tile.
Place the C-bracket in position over the hole with the clips hooked over the rails. Make sure the bracket is aligned accurately with the hole.
Screw the C-Bracket in place with the screws provided screwing from the hole side through to the rails. This will make it easier to access
the screws if any adjustment is required one the tile and supporting brackets are in the ceiling.
