ADORN Pendant Deployment
ACP-55T

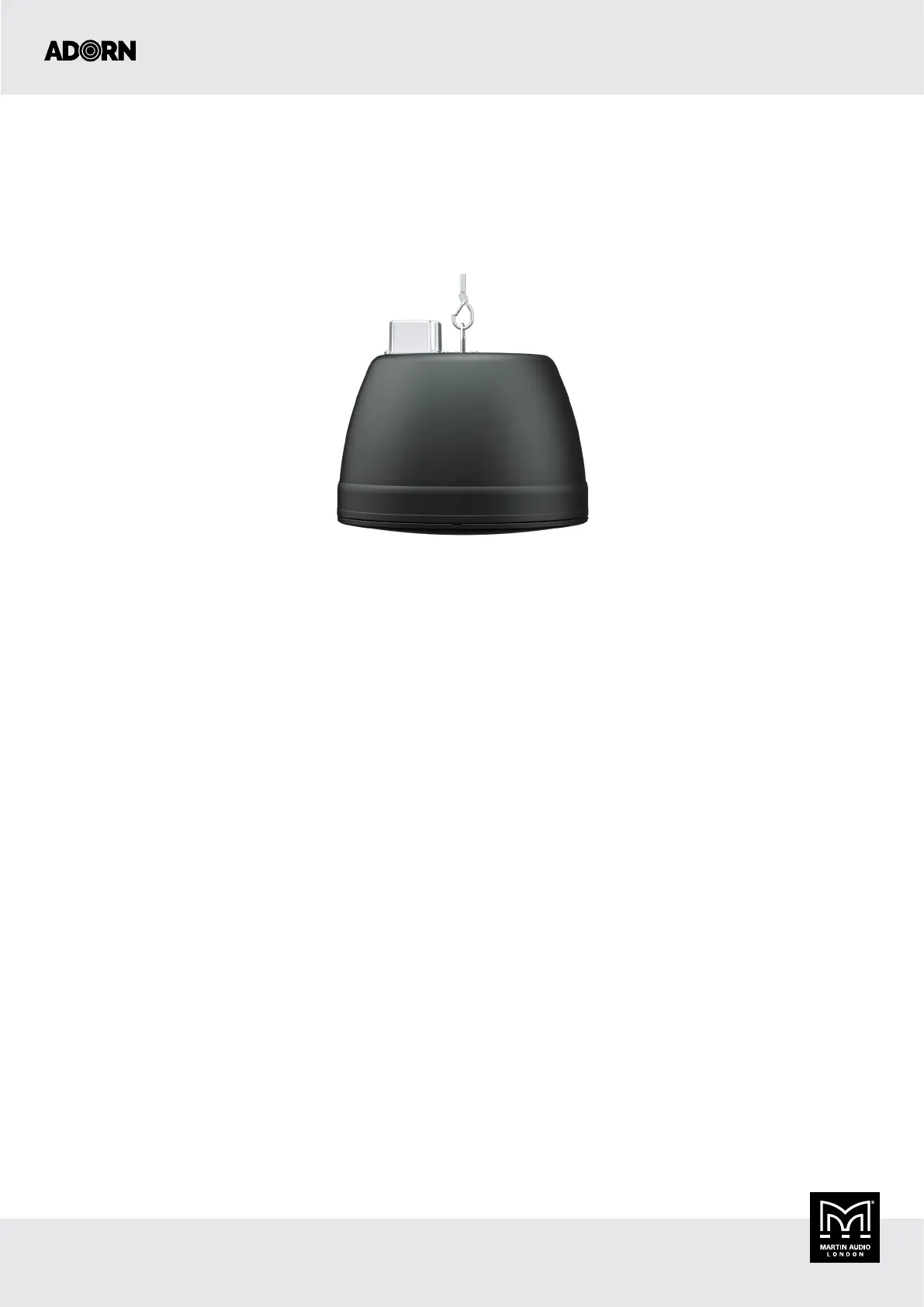

The ACP-55T is designed to be suspended in free space from a single point. The mounting tab on the top of the enclosure is used to attach
the speaker to the means of suspension, wire rope or similar. The fixings used to attach the speaker must be rated for flown applications
and have a safe working load that exceeds the weight of the ACP-55T.
Fitting the grille
The grille can be fitted before suspending the ACP-55T if the required electrical configuration is known; - low impedance or the specific
70v and 100v line tap. The grille is a simple bayonet fitting. Locate the lugs on the underside of the grille and position on the ceiling
speaker. Rotate approximately 5° and it will be fixed in place. It can be removed by rotating anticlockwise should any maintenance or
adjustment be required.
Important safety information
• Martin Audio ADORN ceiling speakers must be installed by experienced installation personnel using all accessories appropriate to the
ceiling construction
• The installer must check with all relevant local, national and international electrical, fire and building safety authorities to ensure that
all regulations are being complied with
• Every ADORN ceiling speaker must be fitted with a steel safety wire between its rear can safety tag and a suitable overhead supporting
structure independent of the ceiling to provide secondary safety support in the event of damage to the ceiling
• When installed in an air handling space the steel cover plates must be sealed to the loudspeaker back cans with firestop putty or a
suitable alternative to ensure plenum tight enclosure of the electrical connections.
