Martin Audio BlacklineX SERIES User Manual


 
 

BlacklineX USERGUIDE
BlacklineXUserGuideV1.0 9

…………

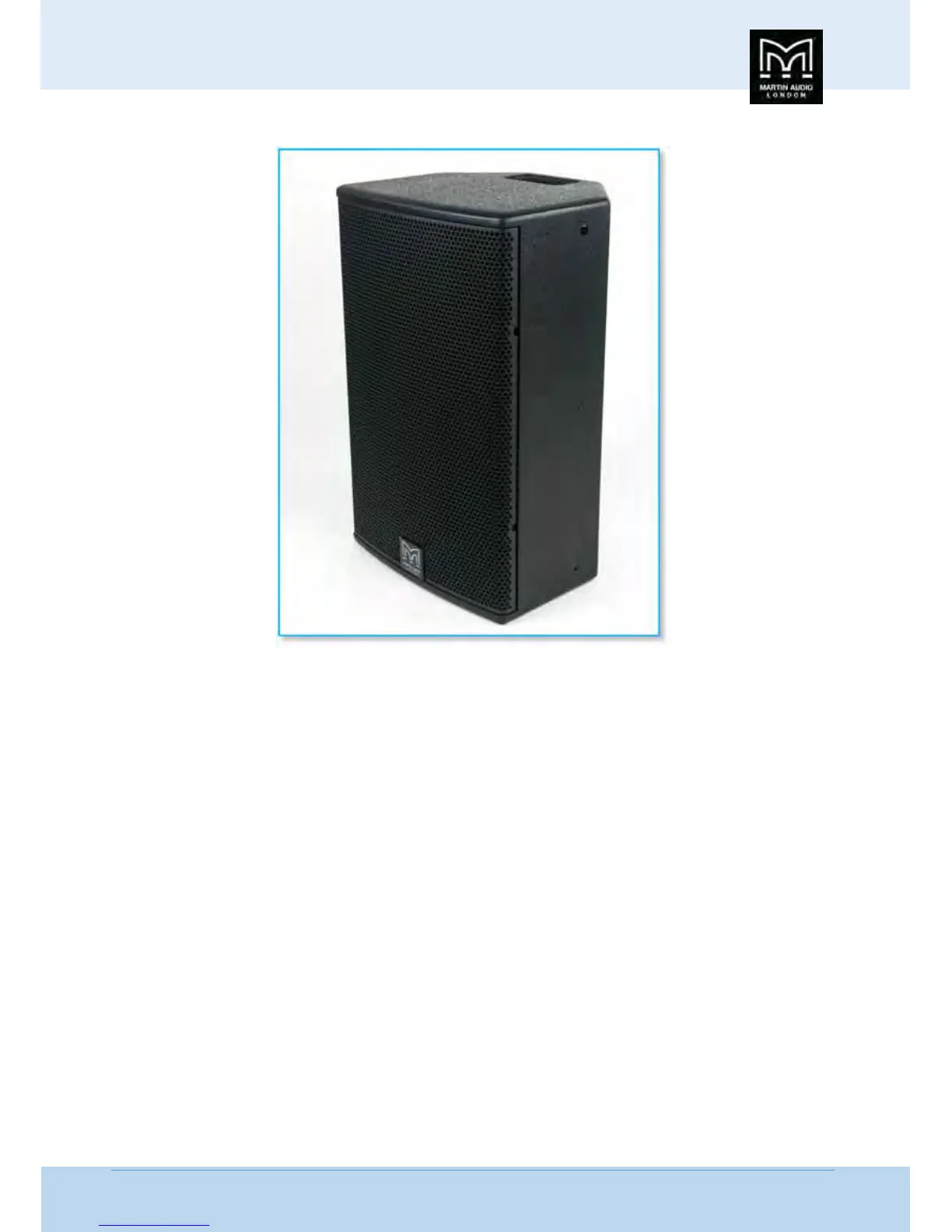

X10

TheX10isahighperformance yetverycompacttwo‐waypassiveloudspeakersystemwhichutilisesa10”(250mm)/2.5”(63mm)
voicecoilLFdriveranda1”(25mm)exitHFcompressiondriverwitha1.4”(35mm)polyimidediaphragm.Therotatable90°x
50°HFhornhasequalhorizontalandverticalmouthd
imensionsfordirectivitycontrolinbothplanes.
WithamaximumSPLof124dB@1m,itisuniquelyplacedtomeettheforegroundrequirementsofmusicbarsandclubsthat
require upfront sound levels  from a very compact enclosure. Use with a BlacklineX Series subwoofer will enable the X10 to
operateassma
lldancefloororsoundreinforcementsystemthatisremarkablypowerfulforitssize,aswellasbeingextremely 
portable.
The X10 is constructed from birch/poplarplywood and fitted with a screw‐free steel grille, M8 inserts  for a  wall bracket and
eyeboltsuspension,plusapole‐mountsocket.
TheX10maybeusedwithorwi
thoutasystemcontroller.Fordemandingapplications,MartinAudiorecommendsaDX0.5system
controllerconfiguredtoperformEQandlimiterfunctions.The DX0.5mayalsobeusedtoconfiguresystemsforadditionalsub‐
basscabinets–e.g.X10+X115orX118
