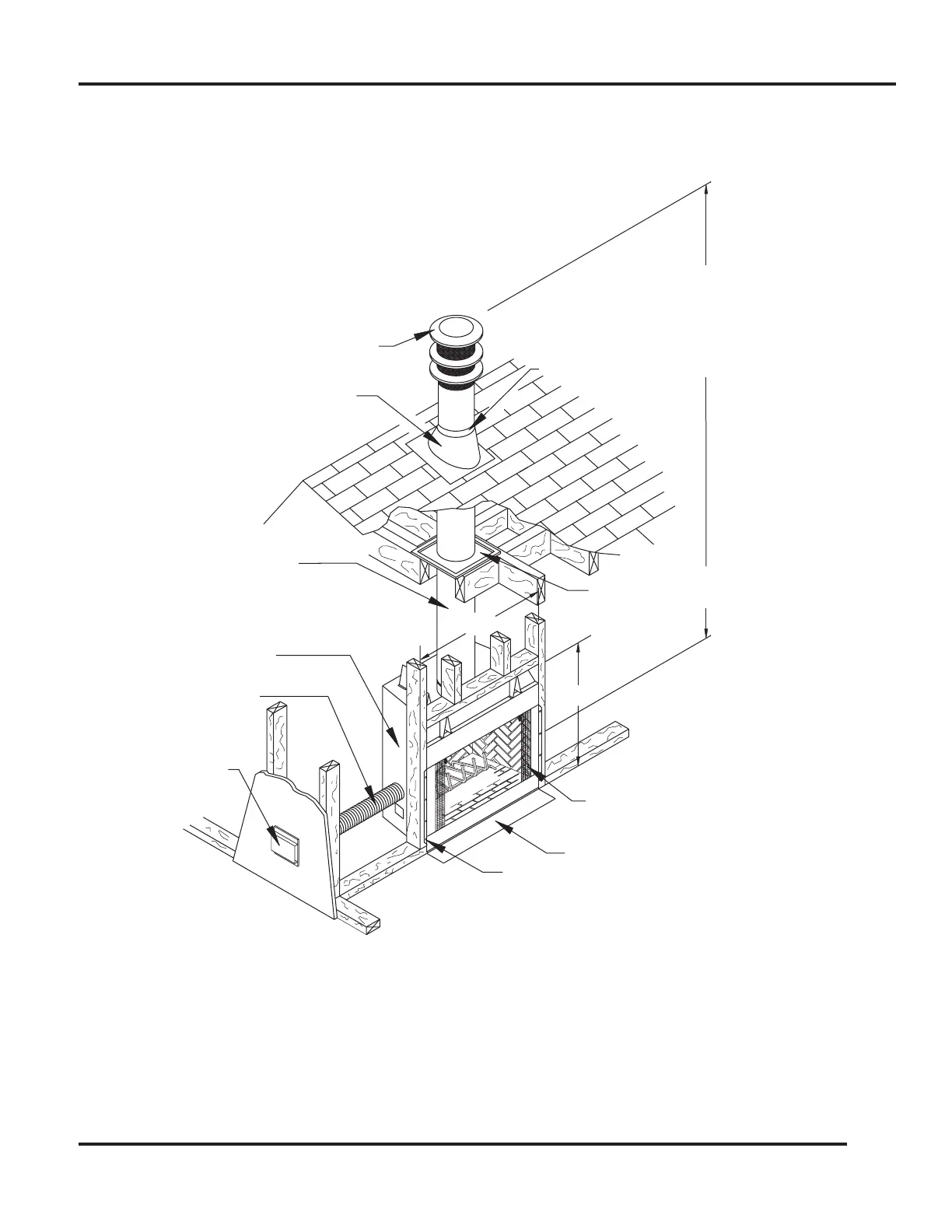

CLEARANCES
FIGURE 1
RESIDENTIAL INSTALLATION
58"
58"
MAINTAIN 2" MIN. AIR SPACE
MAINTAIN 2" MIN. AIR SPACE
BETWEEN CHIMNEY AND
BETWEEN CHIMNEY AND
COMBUSTIBLES
COMBUSTIBLES
L12 (1' PIPE)
L12 (1' PIPE)
L18 (11/2' PIPE)
L18 (11/2' PIPE)
L36 (3' PIPE)
L36 (3' PIPE)
L48 (4' PIPE)
L48 (4' PIPE)
FLUE OUTLET HEIGHT
18 FT=MIN. HEIGHT (NO OFFSETS)
18 FT=MIN. HEIGHT (NO OFFSETS)
24FT=MIN. HEIGHT (2 30
24FT=MIN. HEIGHT (2 30
˚ ELBOWS)
ELBOWS)
30 FT=MIN. HEIGHT (4 30
30 FT=MIN. HEIGHT (4 30
˚ ELBOWS)
ELBOWS)
86FT=MAX. HEIGHT (CHIMNEY SUPPORT
86FT=MAX. HEIGHT (CHIMNEY SUPPORT 
EVERY 25 FT)
EVERY 25 FT)
FIRESTOP MODEL LF-FS-2
FIRESTOP MODEL LF-FS-2
(REQUIRES 17x17 FRAMING)
(REQUIRES 17x17 FRAMING)

60"
60"
STORM COLLAR
STORM COLLAR
MODEL LC CHIMNEY CAP
MODEL LC CHIMNEY CAP
ROOF FLASHING
ROOF FLASHING
MODEL 612
MODEL 612
CAUTION:
CAUTION:
DO NOT RESTRICT SIDE AIR
DO NOT RESTRICT SIDE AIR
INLET VENTS WITH SURROUND
INLET VENTS WITH SURROUND
OR TRIM MATERIALS
OR TRIM MATERIALS
GALVANIZED METAL STRIP
GALVANIZED METAL STRIP
NAIL TO FRAMING MEMBERS
NAIL TO FRAMING MEMBERS
SB6000
SB6000
FIREPLACE MODEL
FIREPLACE MODEL
FLEXIBLE DUCT TYPE
FLEXIBLE DUCT TYPE
FP-4-U
FP-4-U
COMBUSTION AIR 
COMBUSTION AIR 
ASSEMBLY
ASSEMBLY
NOTE: IF MODEL WSB60 GLASS DOORS ARE TO BE USED, NON-COMBUSTIBLE TRIM
ATTACHED TO THE FACE OF THE FIREPLACE MUST NOT EXTEND OVER THE SCREEN
COVER AT THE TOP OF THE FIREBOX OPENING. THE SCREEN COVER WILL HAVE TO 
BE REMOVED BEFORE MODEL WSB60 GLASS DOORS CAN BE INSTALLED. NON-
COMBUSTIBLE TRIM MUST NOT EXTEND OVER EACH SIDE OF THE FIREPLACE INTO 
THE FIREBOX OPENING TO AVOID INTERFERENCE WITH INSTALLATION OF THE
MODEL WSB60 GLASS DOORS.

