10 Connections and Control Settings
This setup is recommended if your Dynamo will be used in
a 2-channel only system.
Signal Connection (see figure 10):
1 Connect the left and right outputs of your preamplifier
to the left and right inputs of the Dynamo using quality
RCA interconnects.
2 Connect the left and right outputs of your Dynamo to
the left and right inputs of your amplifier using quality
RCA interconnects.
Recommended Control Settings (see figure 3):
1 Set the controls as recommended on page 6.

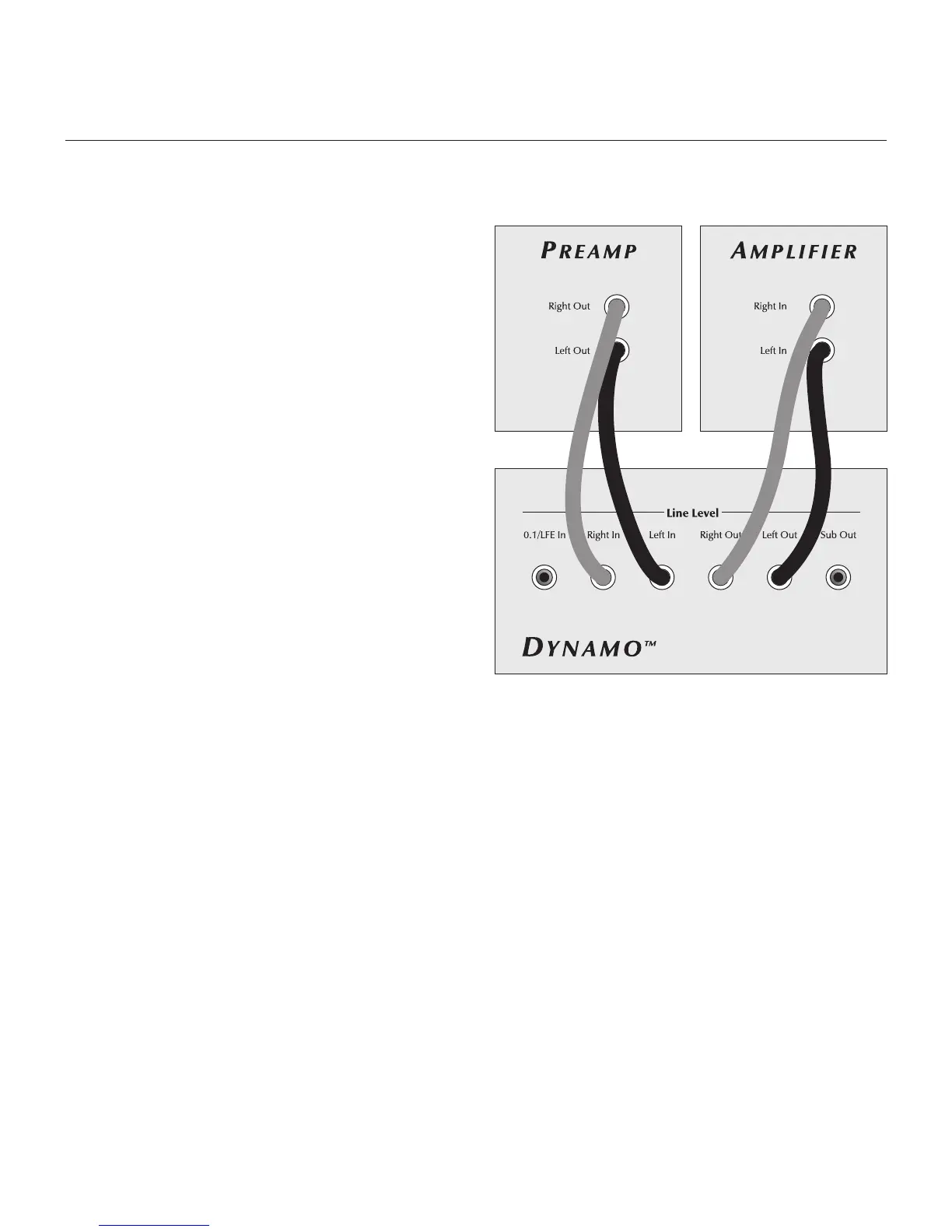

Figure 10. Signal connection for 2-channel mode with 2-channel output.
2-Channel Mode With 2-Channel Output
