INSTALLING ON A WALL
Note: This speaker is mountable in either a hori-
zontal or vertical orientation. Horizontal mounting
requires the use of two shoulder bolts and two wall
brackets. Vertical mounting requires the use of only
one shoulder bolt and mounting bracket.
Note: These instructions assume the mounting
surface is standard wood frame and sheet rock
construction. If you wish to mount to another type
of surface, consult a bonded contractor.
Required.tools.(not.supplied):
• Ruler
• Level
• Electric drill and 1/4” and 1/8” drill bits
• Phillips screwdriver
Horizontal.Install.Required.hardware.(included):
• (1) Installation template
• (2) Wall brackets
• (4) 1-inch Phillips sheet metal screws
• (4) Sheet rock anchors
• (2) Shoulder bolt
• (2) Wall pads
Vertical.Install.Required.hardware.(included):
• (1) Installation template
• (1) Wall brackets
• (2) 1-inch Phillips sheet metal screws
• (2) Sheet rock anchors
• (1) Shoulder bolt
• (2) Wall pads
1 Screw shoulder bolt(s) into the back of the
speaker.
Note:.HORIZONTAL installation requires the
use of TWO shoulder bolts (fig. 5A).
Note:.VERTICAL installation requires the use of
ONE shoulder bolt (fig. 5B).
.

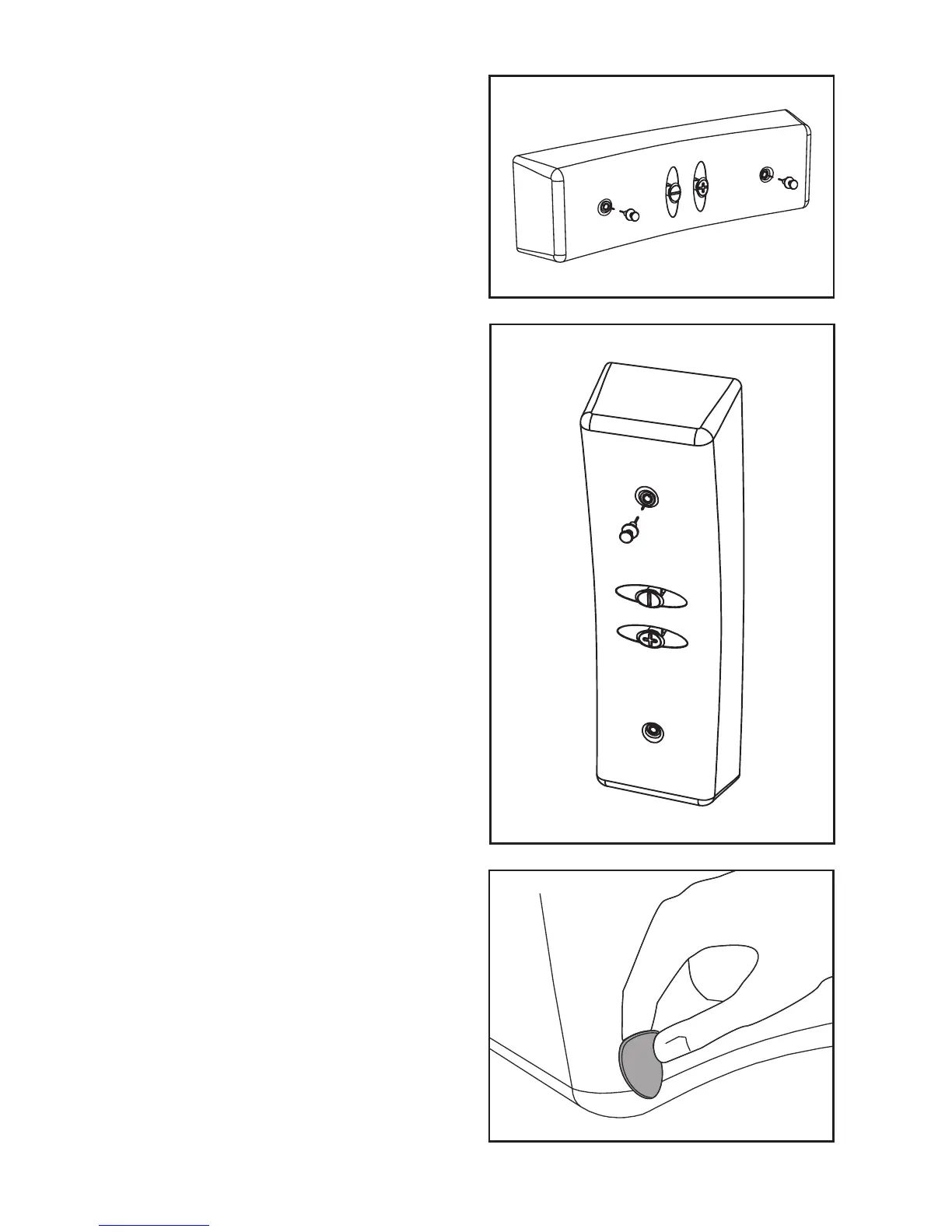

Fig. 5A
Fig. 6
Fig. 5B
To Next Page
