Note: This speaker is not magnetically shielded
and therefore should not be placed directly beside
or atop a CRT television.
BREAK IN
Allow approximately 72 hours of break-in at 90
dB (moderate listening levels) before any critical
listening.
INSTALLING ON A WALL
Note: This speaker is mountable in either a hori-
zontal or vertical orientation.
Note: These instructions assume the mounting
surface is standard wood frame and sheet rock
construction. If you wish to mount to another type
of surface, consult a bonded contractor.
Required tools (not included):
• Ruler
• Level
• Electric drill and 1/4” and 1/8” drill bits
• Phillips screwdriver
Required hardware (included):
• (1) Installation template
• (1) Wall bracket
• (3) 1.5-inch Phillips screws
• (3) Sheet rock anchors
1 Locate mounting location using a level and the
installation template.
2 Mark the pilot hole locations.
3 Drill the pilot holes using a 1/8-inch drill bit. If
a pilot hole DOES NOT hit a stud, widen that
pilot hole using a 1/4-inch drill bit and install
a wall anchor at that location (fig. 3).
WARNING! Turn your amplifier
off before making or breaking any
signal connections!
These speakers are designed with easy-to-use push-
style binding posts that accept bare wire or pins
(fig. 2). Assign the same color to the (+) and (–) ter-
minals on both the speaker and the amplifier. Make
certain that all connections are tight.
WARNING! Installation other
than that described in the body of
this document requires specific
documentation from MartinLogan.

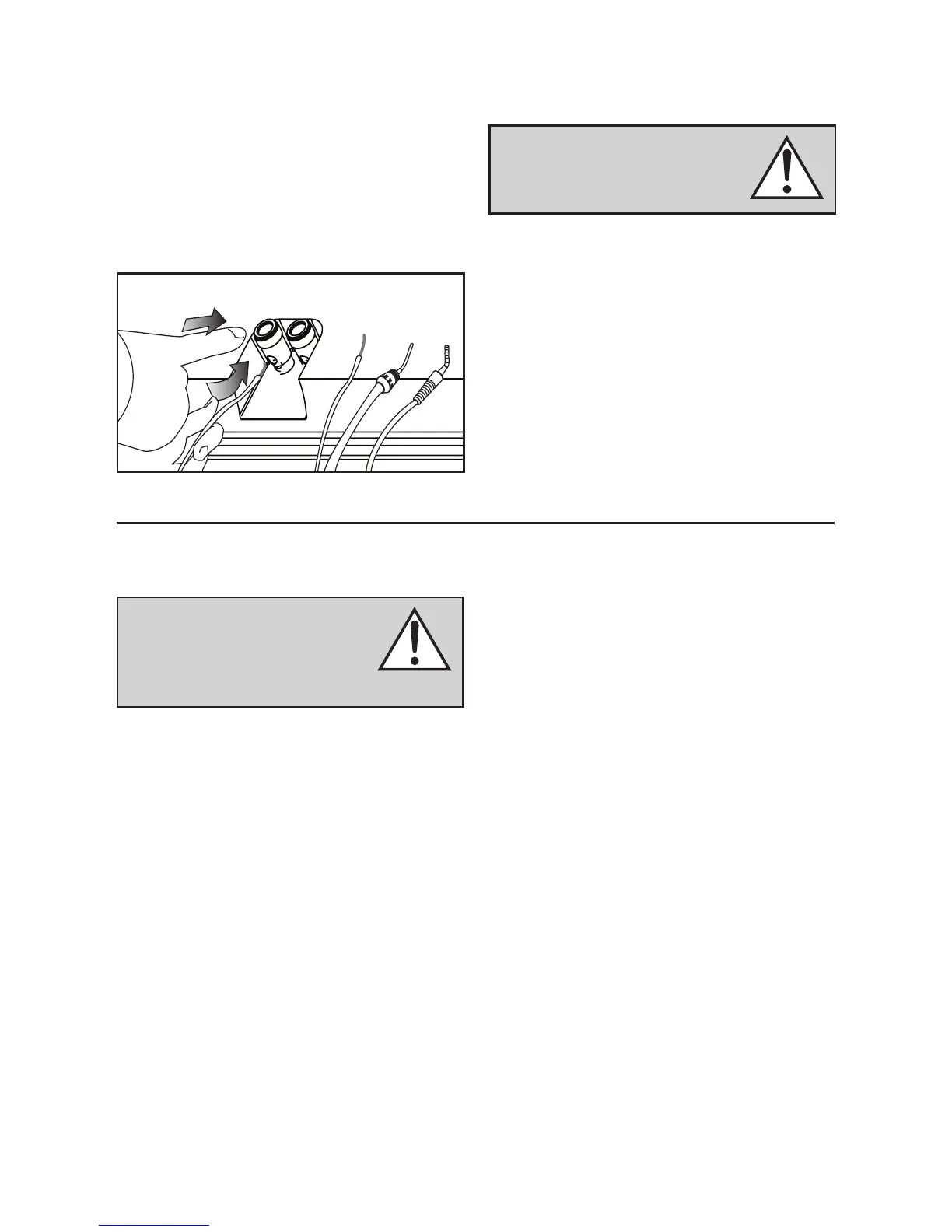

Fig. 2
