5
4 Using the 1.5-inch Phillips screws, mount the
wall bracket(s) as shown (fig. 3).
5 Hang the speaker, guiding the wall mount bolts
into the keyholes.
INSTALLING THE HORIZONTAL STANDS
Required tools (not included):
• Phillips screwdriver
Required hardware (included):
• (2) #8 - 3/4-inch Phillips screws
• (2) Horizontal stands
1 Using a Phillips screwdriver and a #8 x 3/4-
inch screw, attach both horizontal stands to the
back of the speaker (fig. 4).
2 Turn the bolts in the horizontal stands to level
the speaker or to adjust the angle (fig 4).
INSTALLING THE VERTICAL STAND
Required tools (not included):
• Phillips screwdriver
• 4mm Allen tool

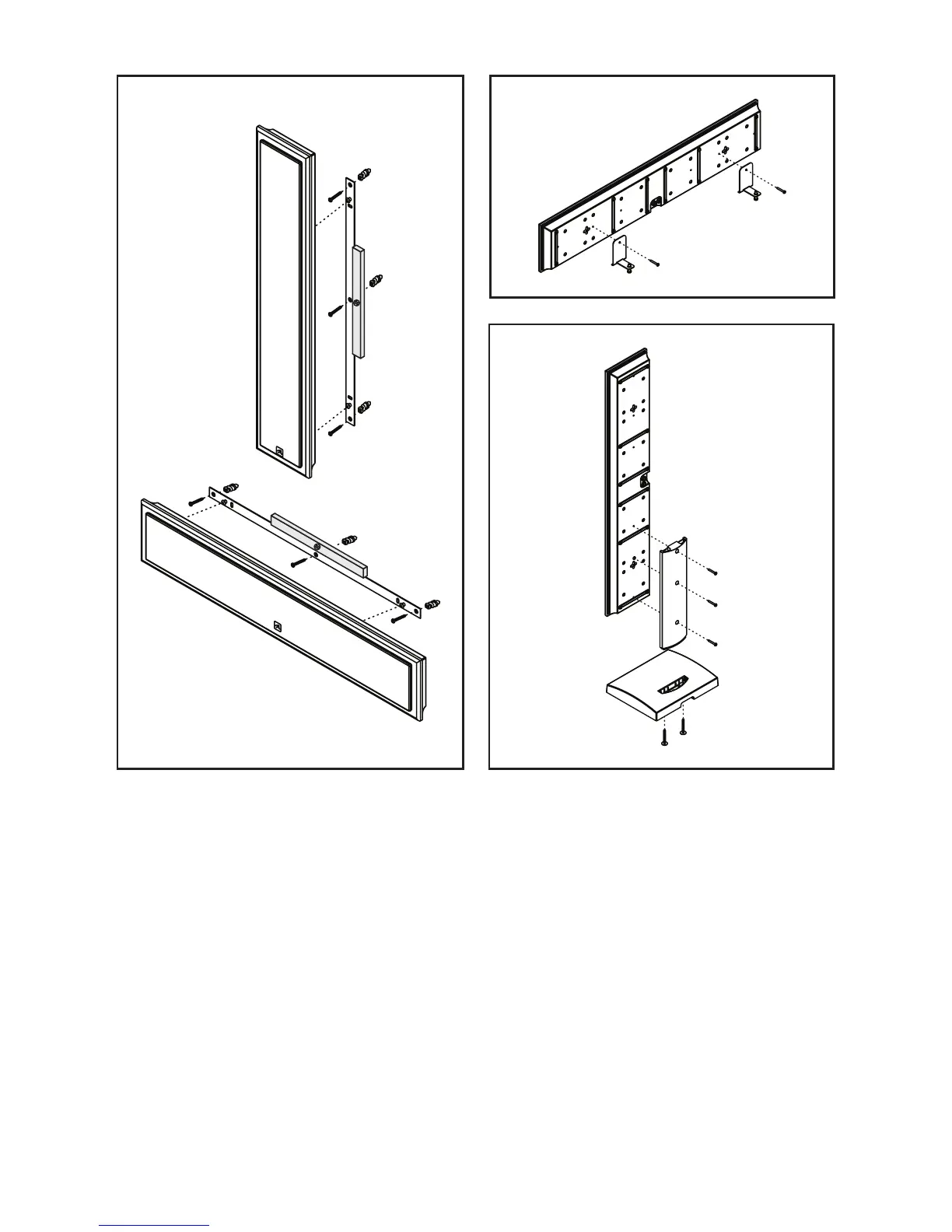

Fig. 3 Fig. 4
Fig. 5
To Next Page
