Assembly
Blower Pipes Installation

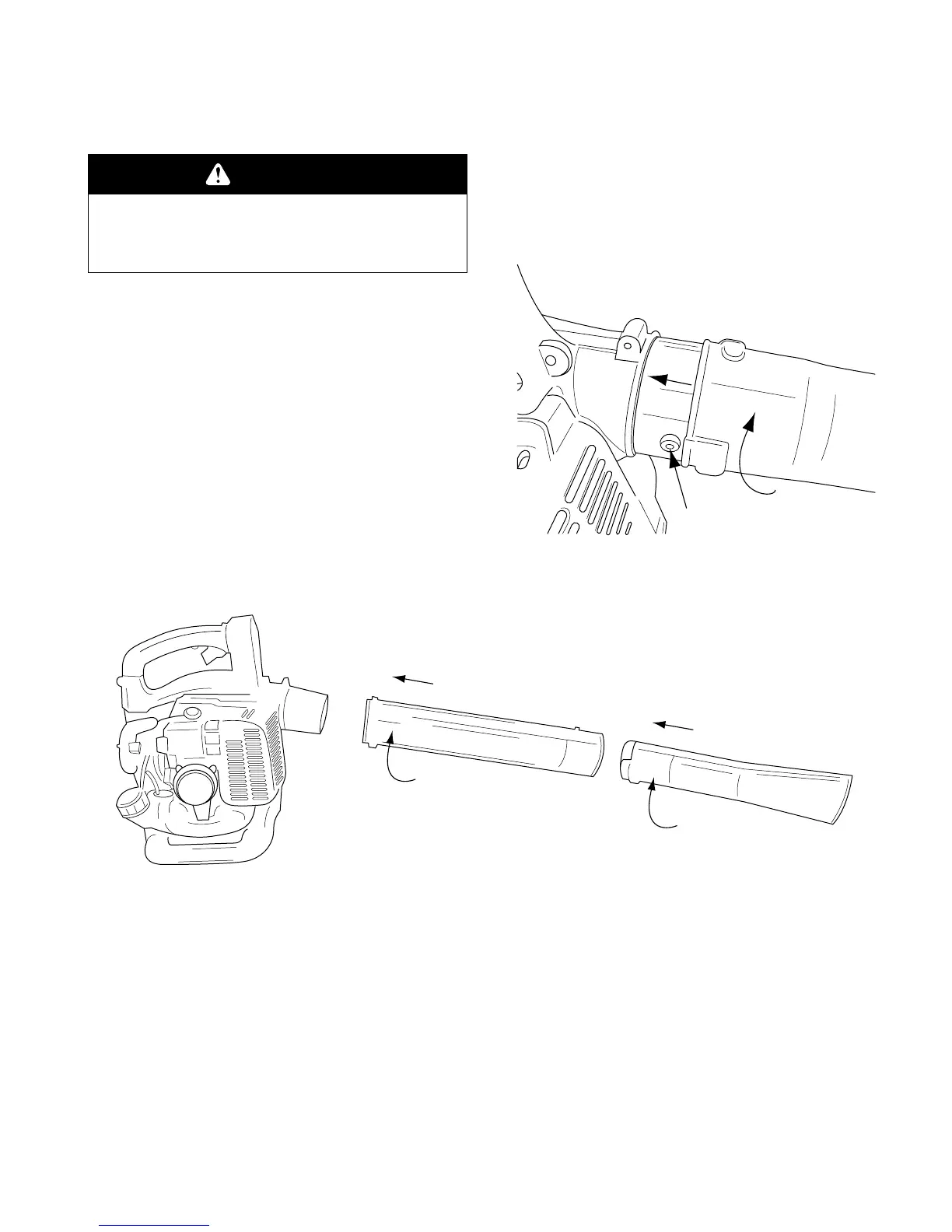

1. Align groove in pipe A with pegs on blower hous-
ing and slide pipe A on to housing.
2. Rotate pipes A clock wise to lock it into place.
3. Align groove in pipe B with pegs on pipe A and
slide pipe B until proper position.
4. Rotate pipe B clockwise to lock it into place.
— 12 —
1
WARNING
Stop the engine before installing or remov-
ing blower pipes.
Peg
2
13
24
