Maruyama BL85 - BL85 Specifications; Assembly Instructions

The MARUYAMA BACKPACK POWER BLOWER comes with an Owner's / Operator's Manual.
Assembly and attachment of the throttle lever bracket and blower pipes are required.
ASSEMBLY INSTRUCTIONS

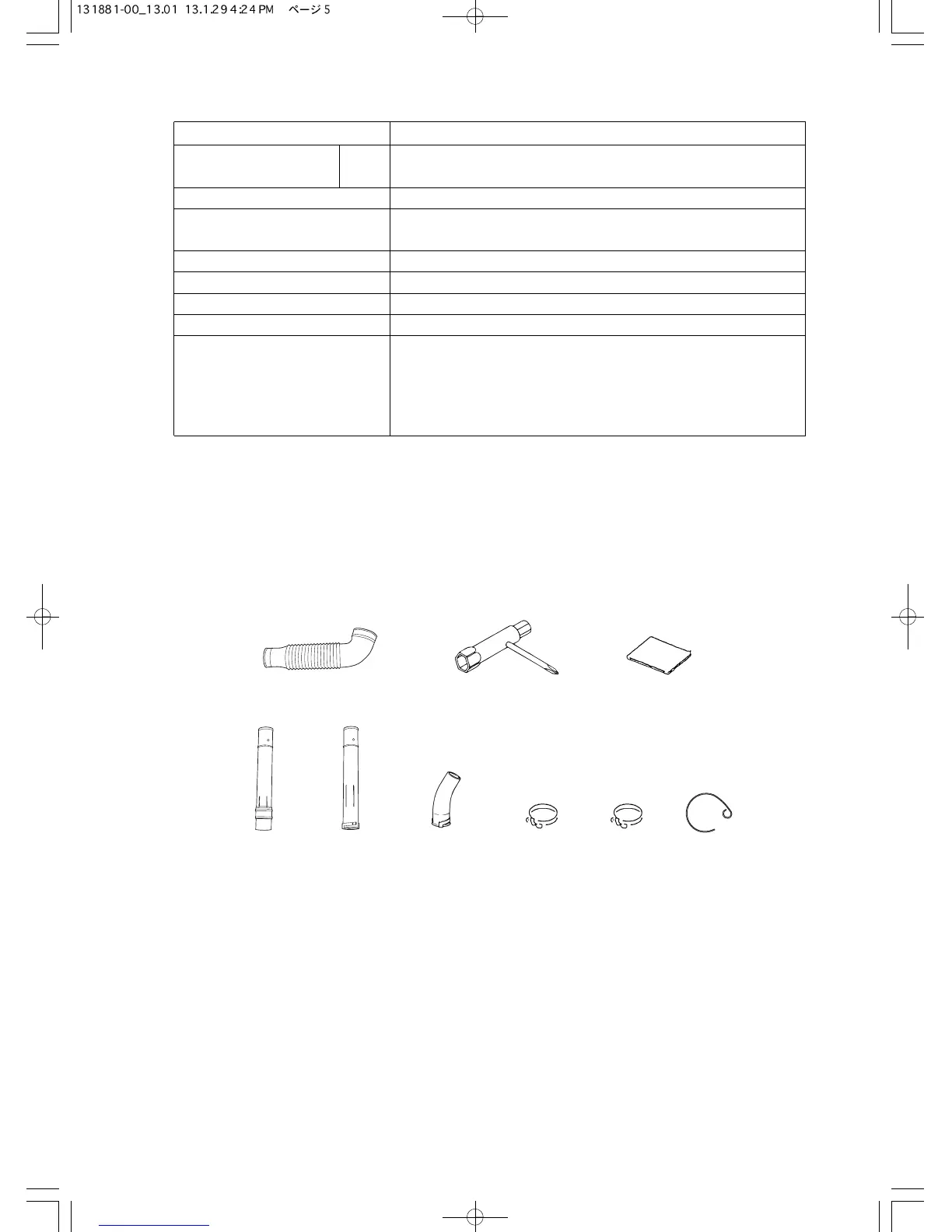

STEP #1) Locate and identify all the components (see sketch).
STEP #2) Prepare the flat head screwdriver Using the BANDS, connect the FLEXIBLE PIPE to
the blower, and the SWIVEL PIPE to the flexible pipe (see sketch page 5).
STEP #3) Assemble the STRAIGHT PIPE, BENT PIPE, and FAN-BLOW HEAD, then connect
them to the swivel pipe (see sketch page 5).
STEP #4) Slide handle over swivel pipe and tighten retainer knob. (see sketch page 5).
SPECIFICATIONS
Models
Dimensions L x W x H Standard
Dry Weight
Engine Type
Displacement
Ignition System
Carburetor
Fuel Tank Capacity
Fuel Mixture:
14.4 x 19.1 x 20.1 in.
(365 x 485 x 535 mm)
BL85
21.1 lbs. (9.6 kg)
Kawasaki/2-Stroke Air cooled
TK65 for EPA
64.7 cc
Electric
All position diaphragm
0.5 gal (2.0 lit)
50:1
Using Maruyama 50:1
2-Cycle Engine Oil or any quality 2-cycle engine oil designed
for use in air-cooled, high performance 2-cycle engines.
— 4 —
English
BANDS(S)
4.0 in.
FLEXIBLE PIPE OPERATOR'S
MANUAL
BOX SPANNER
SWIVEL
PIPE
STRAIGHT
PIPE
BANDS(S)
3.2 in.
BENT PIPE
CLAMP
