16

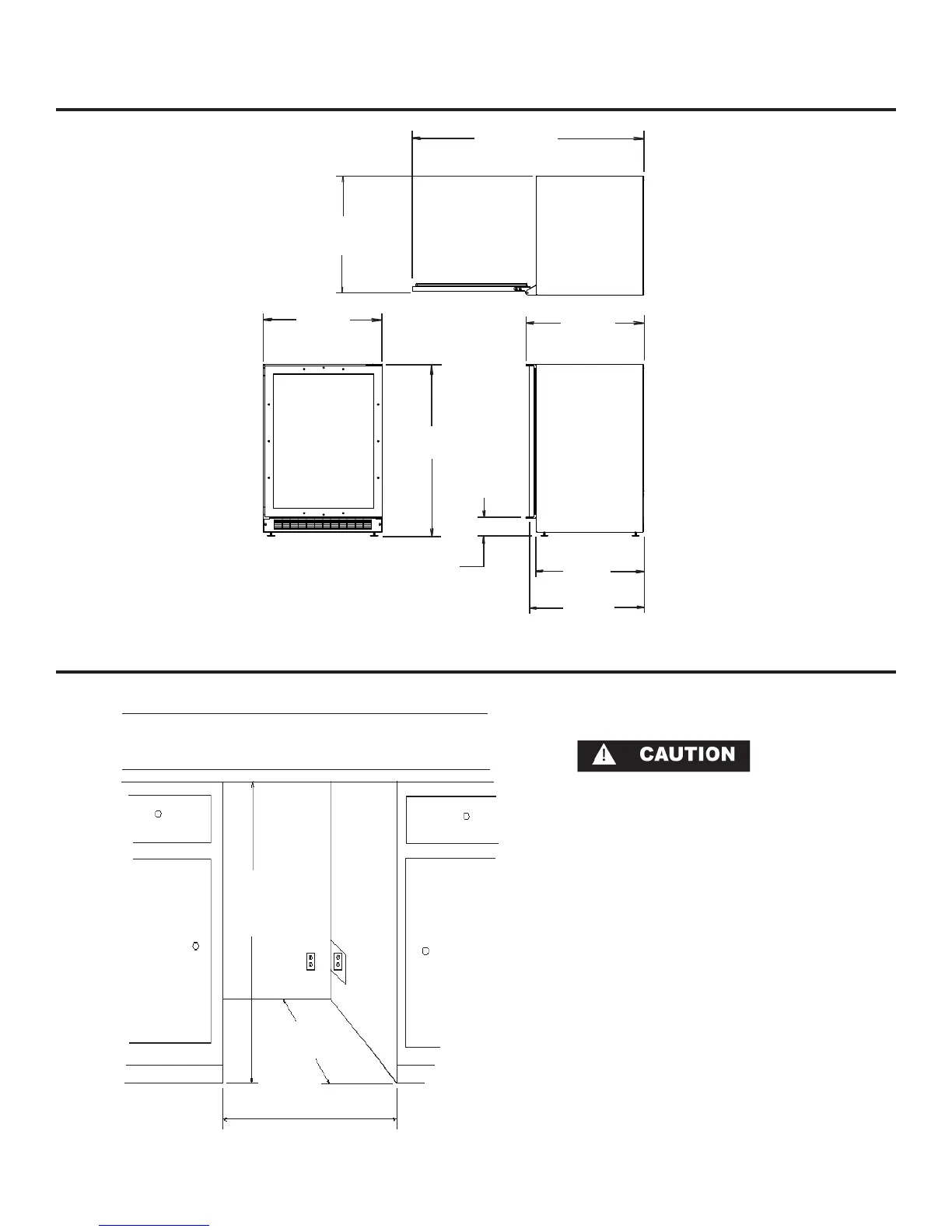

Recommended Rough In Opening for 6SDZE Glass Overlay Door
DIMENSIONS FOR 6SDZE GLASS OVERLAY DOOR
24” (61.1 cm)
*24” (61 cm)
standard cabinet
depth
34-1/2”
(87.6 cm)
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 136 lbs. (61.8 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
46-1/4”
(117.48cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
21-9/16”
(54.76cm)
22-29/32”
(58.19cm)
23-19/32”
(59.92cm)
23-1/32”
(58.5cm)
