FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS

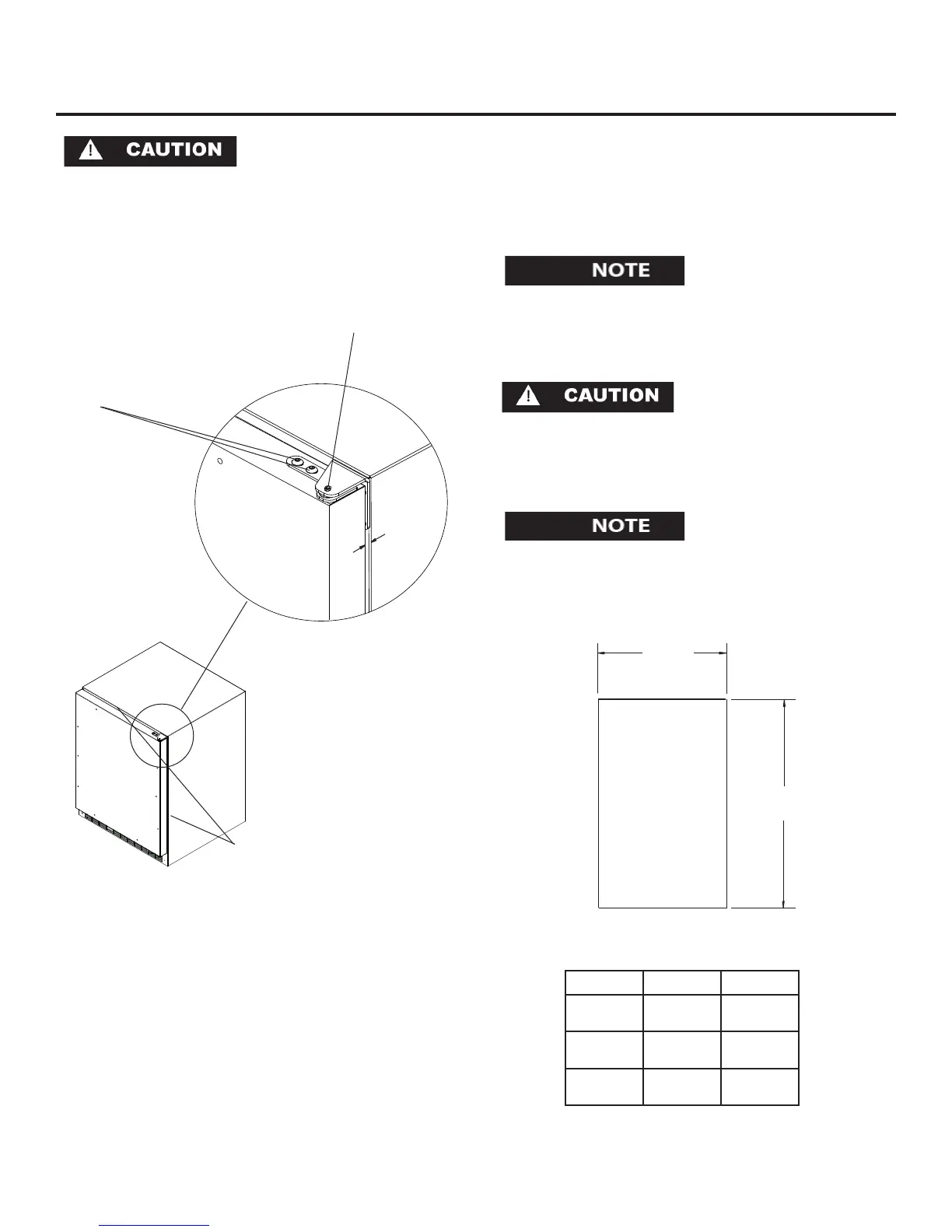

Step 1: Verify door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the
hinge adapter brackets to the door and adjusting the
door side to side. Use a 5/32” allen wrench for this pro-
cedure. (See Figure 5 below).
Figure 6
Hinge adapter screws loos-
en these to adjust door, on
the top and bottom of the
door
Top hinge pin
remove to remove
the door.
Door must be
parallel to top
and sides of
refrigerator
Step 2: Remove door
Remove the top hinge pin from the hinge with an 1/8”
allen wrench. Remove the door by angling the top of the
door outward and lifting the door off the bottom hinge.
(See detail in Figure 6).
Step 3: Remove gasket
Lay the door on its front being careful not to scratch it.
Remove the door gasket by peeling up and out of the
channel.
Step 4: Cut overlay panel
Depending on the wine cellar model cut the overlay panel
to the dimensions shown. Use Figure 7 and Table A for
solid door models or use Figure 8 and Table B for glass
door models.
H
W
Front of
overlay
panel
Figure 7
For overlay with lock option panel thickness to be
3/4” (19mm) maximum to 5/8” (16mm) miniumum.
17
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
For the door closer to work properly it is necessary to
maintain a minimum space of 9/32” (7mm) between the
door and cabinet flange as shown . This space can be
adjusted by adjusting the top and bottom hinge adapters.
9/32”
(7mm)
Model W H
3SWCE
14-5/8”
(37.13cm)
30-5/16”
(76.99cm)
6SWCE
23-5/8”
(59.99cm)
30-5/16”
(76.99cm)
6SDZE
23-5/8”
(59.99cm)
30-5/16”
(76.99cm)
Table A
Solid Door Models
