Marvel MLNP115-IS01A - Cutout & Product Dimensions

13

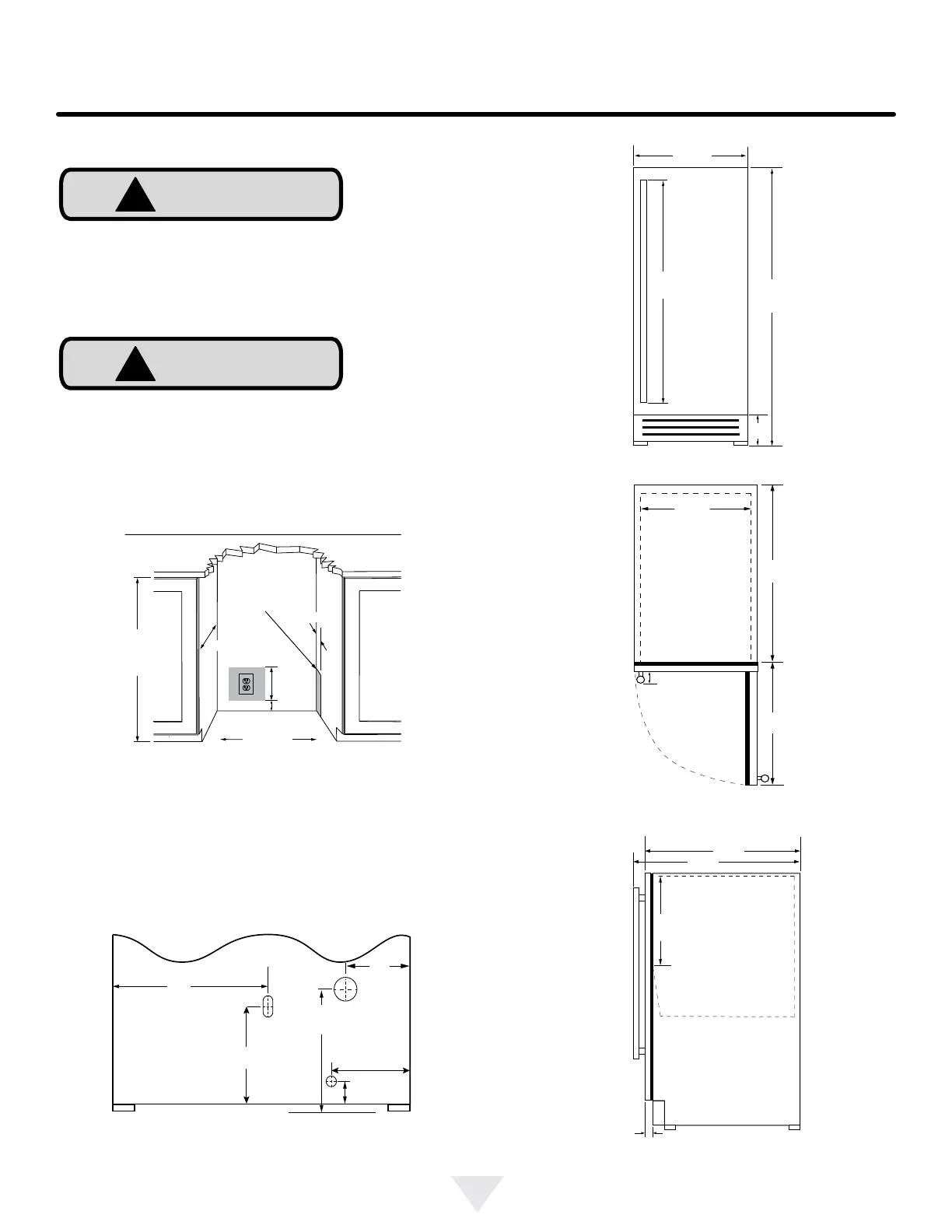

CUTOUT & PRODUCT DIMENSIONS
PREPARE SITE
Your product has been designed for either free-standing
or built-in installation. When built-in, your unit does not
require additional air space for top, sides, or rear. However,
the front grille must NOT be obstructed, and clearance is
required for an electrical connection in the rear.
Unit can NOT be installed behind a closed cabinet door.
If you would like to align the face of the unit with other
adjacent cabinet doors, you may need to alter the wall just
behind the drain connection on the unit to accommodate
the drain.
CUTOUT DIMENSIONS - MSNP115
*15" cutout width may be sufcient if opening is exact and square.
PRODUCT DIMENSIONS
REAR
!
CAUTION
!
CAUTION
1 1⁄₂" (38 mm)
7"
(178 mm)
15 1⁄4"*
(387 mm)
34 1⁄₄"
(870 mm)
to
35 1⁄₄"
(889 mm)
Preferred location
for electrical outlet
is in an adjacent
cabinet.
24"
(610 mm)
5⁄8"
(16 mm)
Figure 26
2”
(51 mm)
4”
(102 mm)
Water Line
Drain
7 ½ ”
(191 mm)
3 ⁄ ”
(80 mm)
4”
(102 mm)
7 ½ ”
(191 mm)
Power Cord
6 ft (183 cm)
Figure 27
FRONT
TOP
SIDE
14 ⁄”
(379 mm)
3 ½”
(89 mm)
28”
(711 mm)
34”
to 35”
(863 mm
to
889 mm)
1 ⁄”
(48 mm)
11 ⁄”
(291 mm)
15 ½”
(394 mm)
20 ⁄”
(525 mm)
10 ⁄”
(260 mm)
23”
(584 mm)
25”
(635 mm)
1 ½“ (38 mm)
Figure 28
Figure 29
Figure 30
