11
Drain
This model comes equipped with a factory installed drain
pump.
CONNECT DRAIN LINE
Failure to connect water supply or drain line connections
properly can result in personal injury and property damage.

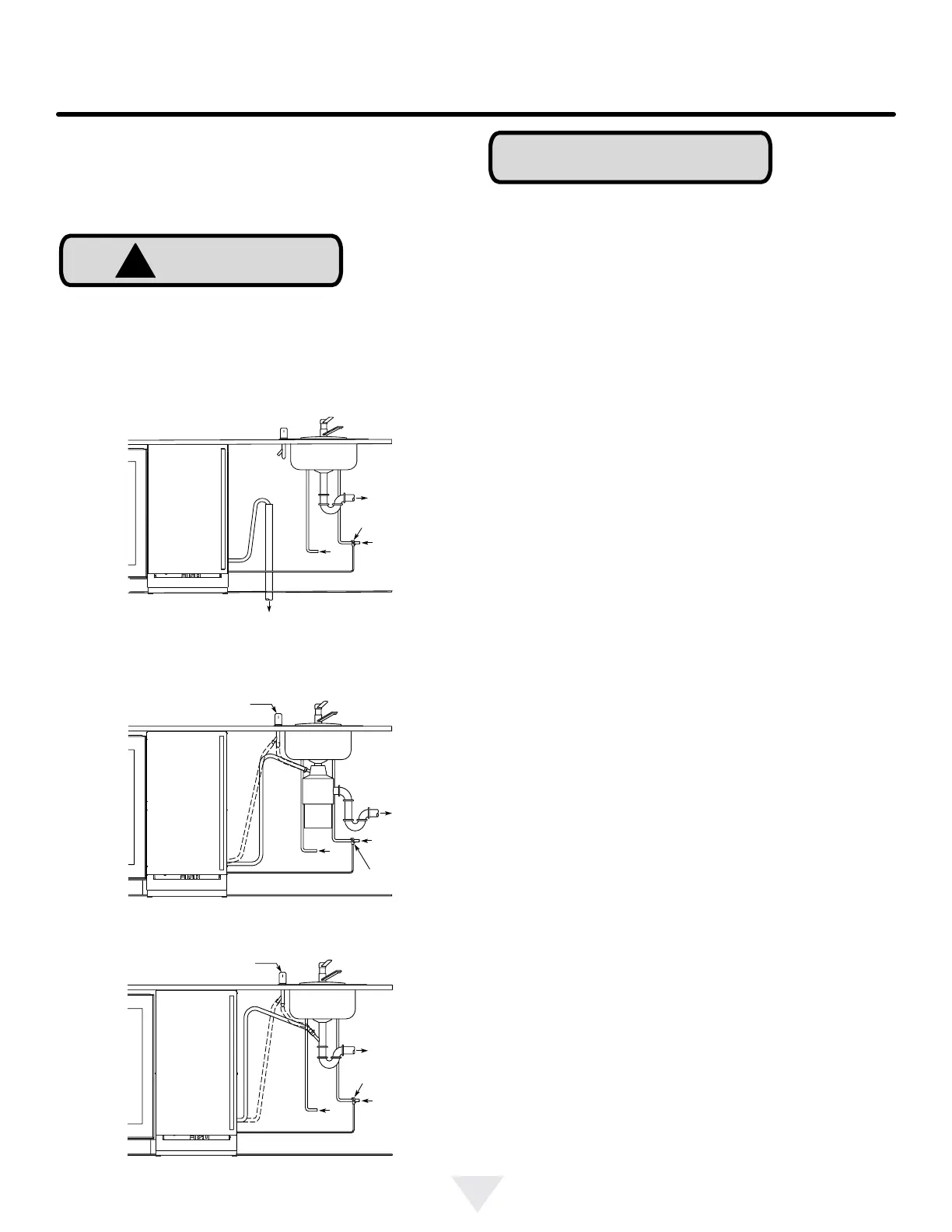

See below for typical installations requiring a drain pump.
Stand Pipe
Disposal Assembly
Y-Branch Tail Piece
INSTALLING THE DRAIN PLUMBING
!
CAUTION
NOTE
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Figure 21
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Disposal Assembly
P60 Pump Required
Figure 22
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
P60 Pump Required
Figure 23
The maximum lift for the drain pump is 10 feet. This must be
done as close to the rear of the unit as possible.
