Mas Grup
19

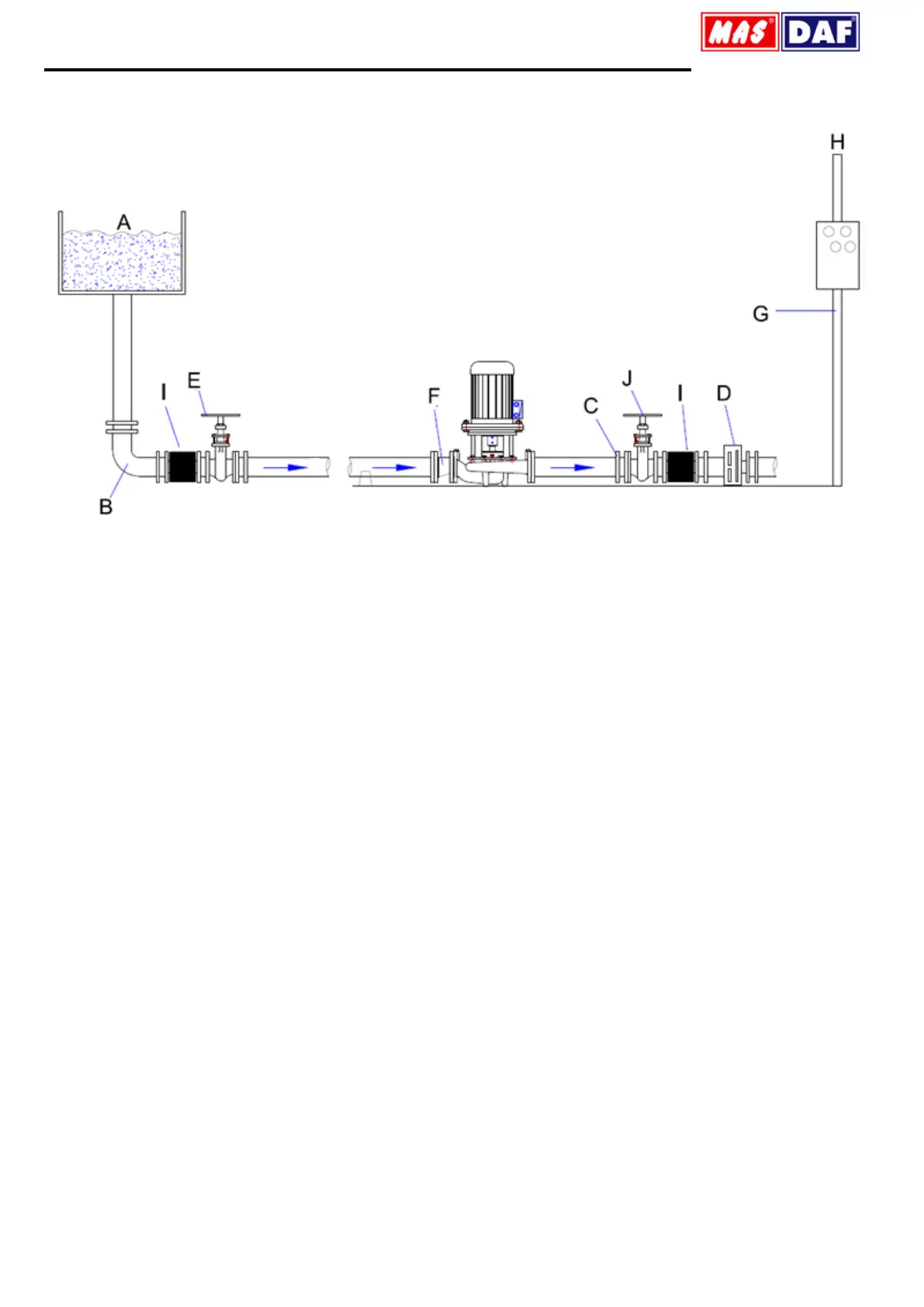

15. SAMPLE PLUMBING
Figure 6: Sample Plumbing
A. Tank
B. Large radius elbow
C. Adapter
D. Non-return valve
E. Suction valve
F. Reducer
G. Electrical connection
H. Insulated cable
İ. Compensator
J. Discharge valve
