16. INM SECTIONAL DRAWING AND PARTS LIST (WITHOUT COUPLING)

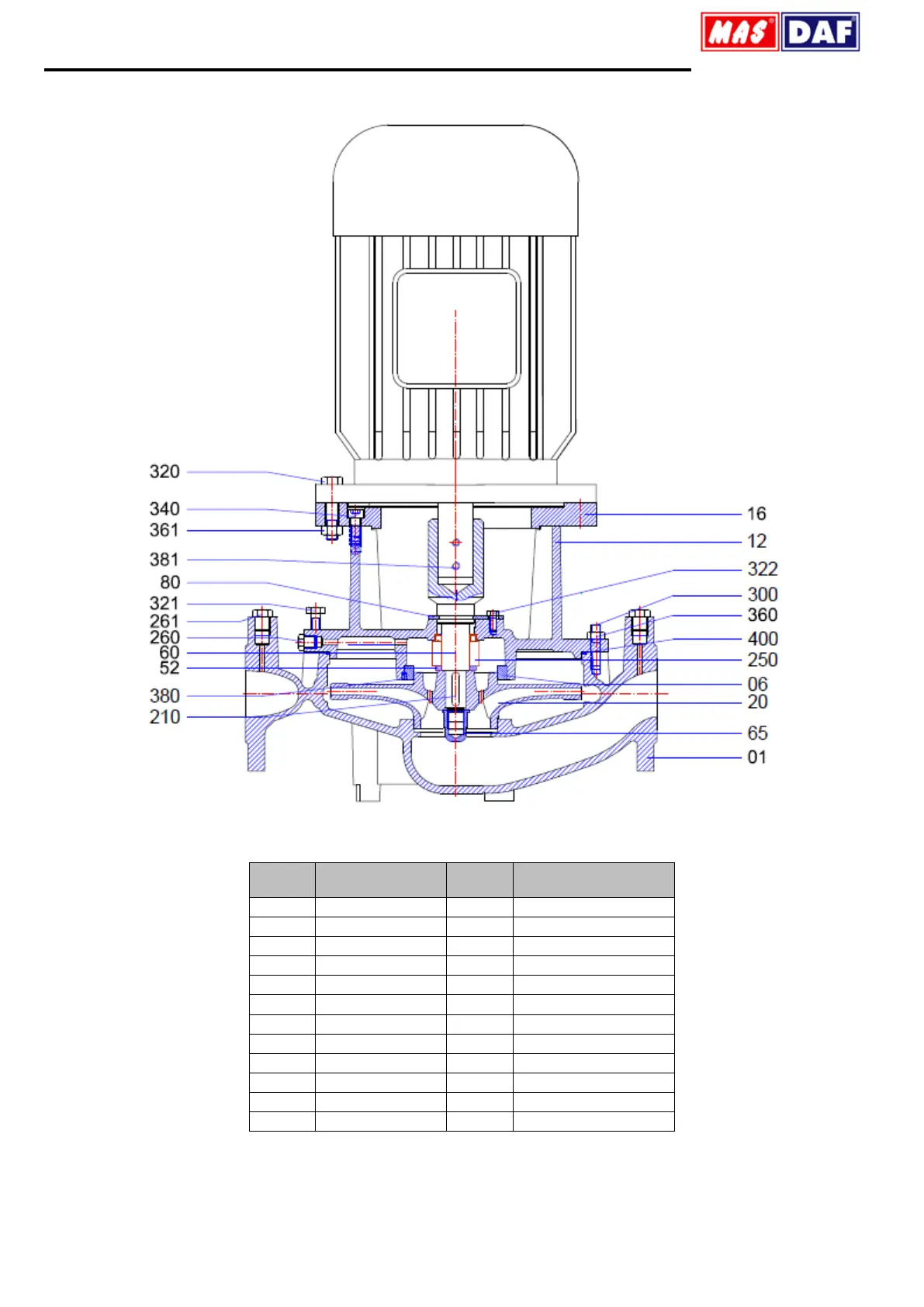

Figure 7: INM Sectional Drawing (without coupling)
Part No
Part Name
Part No
Part Name
01
Pump Casing
261
Pipe Plug, Pressure Gauge
06
Wearing Ring
300
Stud, Pump Casing
12
Adapter
320
Hex Bolt
16
Motor Flange
321
Hex Bolt
20
Impeller
322
Hex Bolt
52
Mechanical Seal Ring
340
İmbus Bolt
60
Pump Shaft
360
Nut
65
Impeller Nut
361
Nut
80
Shackle
380
Set-Screw
210
Key, Impeller
381
Set-Screw
250
Mechanical Seal
400
O-Ring
260
Pipe Plug, Adapter
500
Motor
Table 7: INM Sectional Part List (without coupling)
