MAS DAF INM Series User Manual

Mas Grup
21
INM SECTIONAL DRAWING AND PARTS LIST (WITH COUPLING)

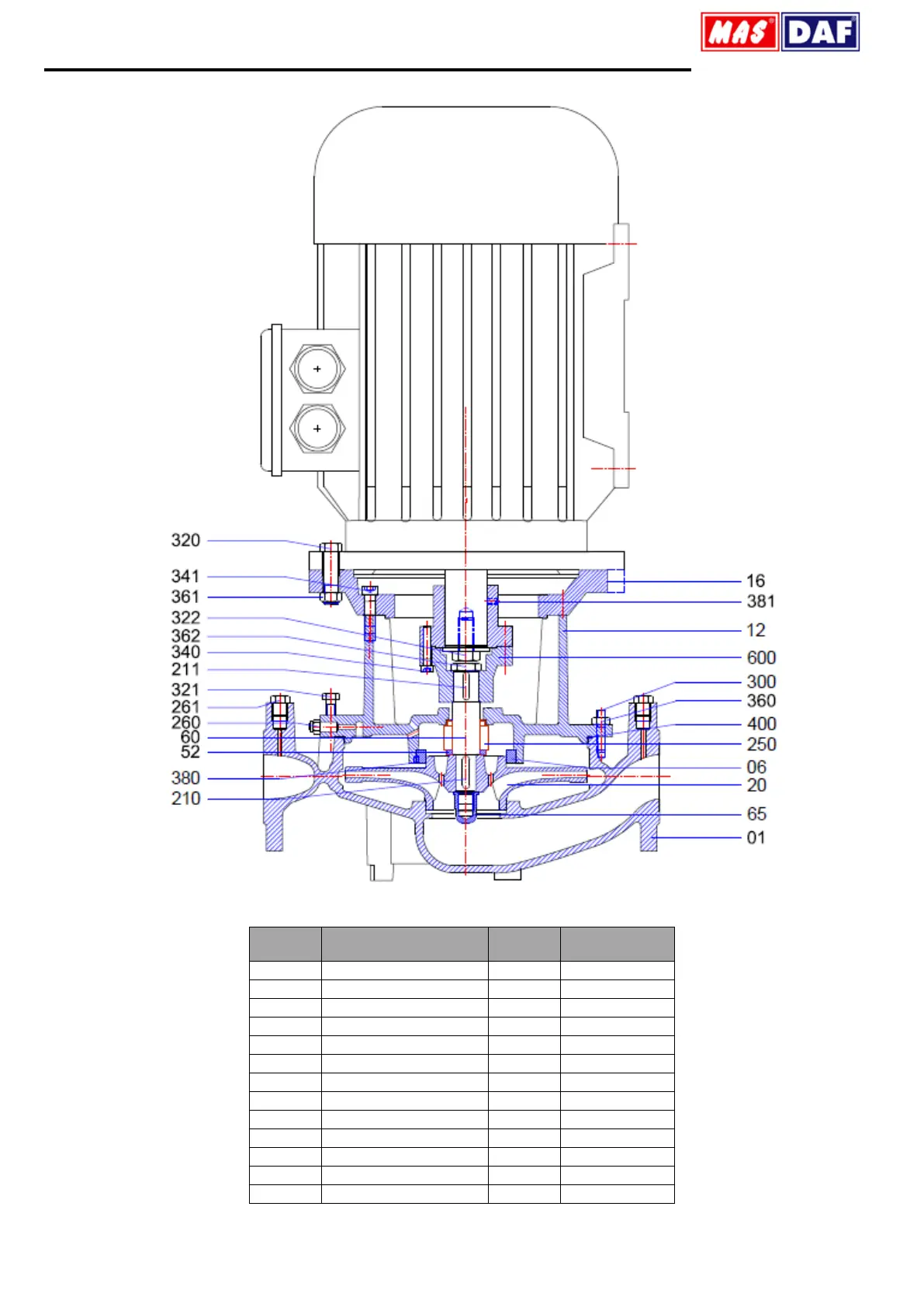

Figure 8: INM Sectional Drawing (with coupling)
Part No
Part Name
Part No
Part Name
01
Volute casing
300
Casing stud
06
Wear Ring
320
Hex Bolt
12
Adapter
321
Hex Bolt
16
Motor Flange
322
Hex Bolt
20
Impeller
340
Imbus Bolt
52
Mechanical Seal Ring
341
Imbus Bolt
60
Shaft
360
Nut
65
Impeller nut
361
Nut
210
Key, Impeller
362
Nut
211
Kama, coupling
380
Setscrew
250
Mechanical Seal
381
Setscrew
260
Solid plug
400
O-Ring
261
Drain plug
600
Rigid coupling
Table 8: INM Sectional Part List (with coupling)
