MAS DAF INM Series User Manual

Mas Grup
22
INL SECTIONAL DRAWING AND PARTS LIST

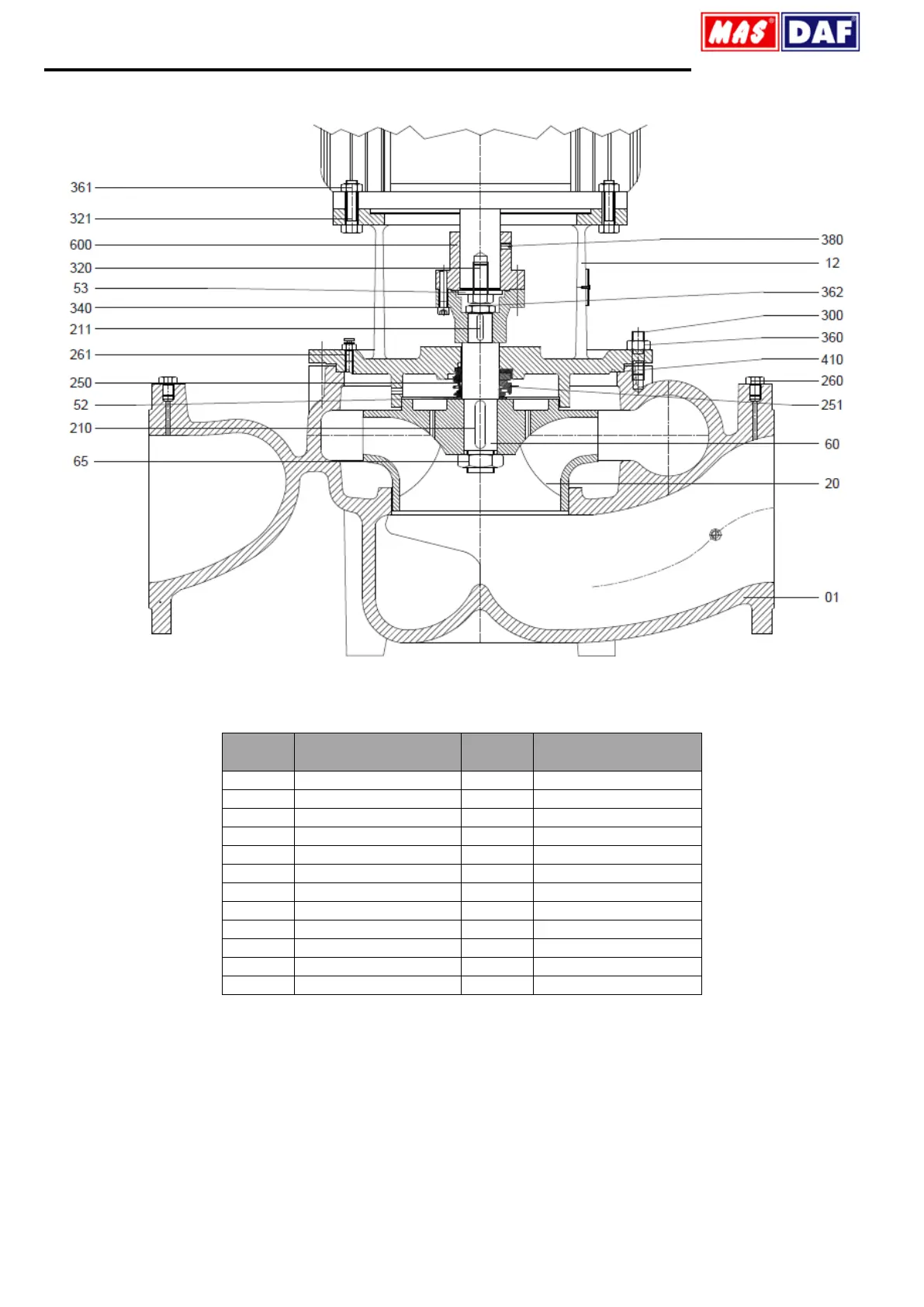

Figure 9: INL Sectional Drawing
Part No
Part Name
Part No
Part Name
01
Volute casing
261
Slud (Adapter)
12
Adapter
300
Casing stud
20
Impeller
320
Hex Bolt (Coupling)
52
Mechanical Seal Ring
321
Hex Bolt (Adapter)
53
Coupling Front Bush
340
Imbus Bolt (Coupling)
60
Shaft
360
Nut (Casing)
65
Impeller nut
361
Nut (Adapter)
210
Key, Impeller
362
Nut (Coupling)
211
Key, Coupling
380
Setscrew
250
Mechanical Seal
410
Cylinder Head Gasket
251
Mechanical Seal
600
Rigid Coupling
260
Slud (casing)
Table 9: INL Sectional Part List
