MAS DAF INM Series User Manual

Mas Grup
23
17. INM DRAWING FOR DISMANTLING (WITHOUT COUPLING)

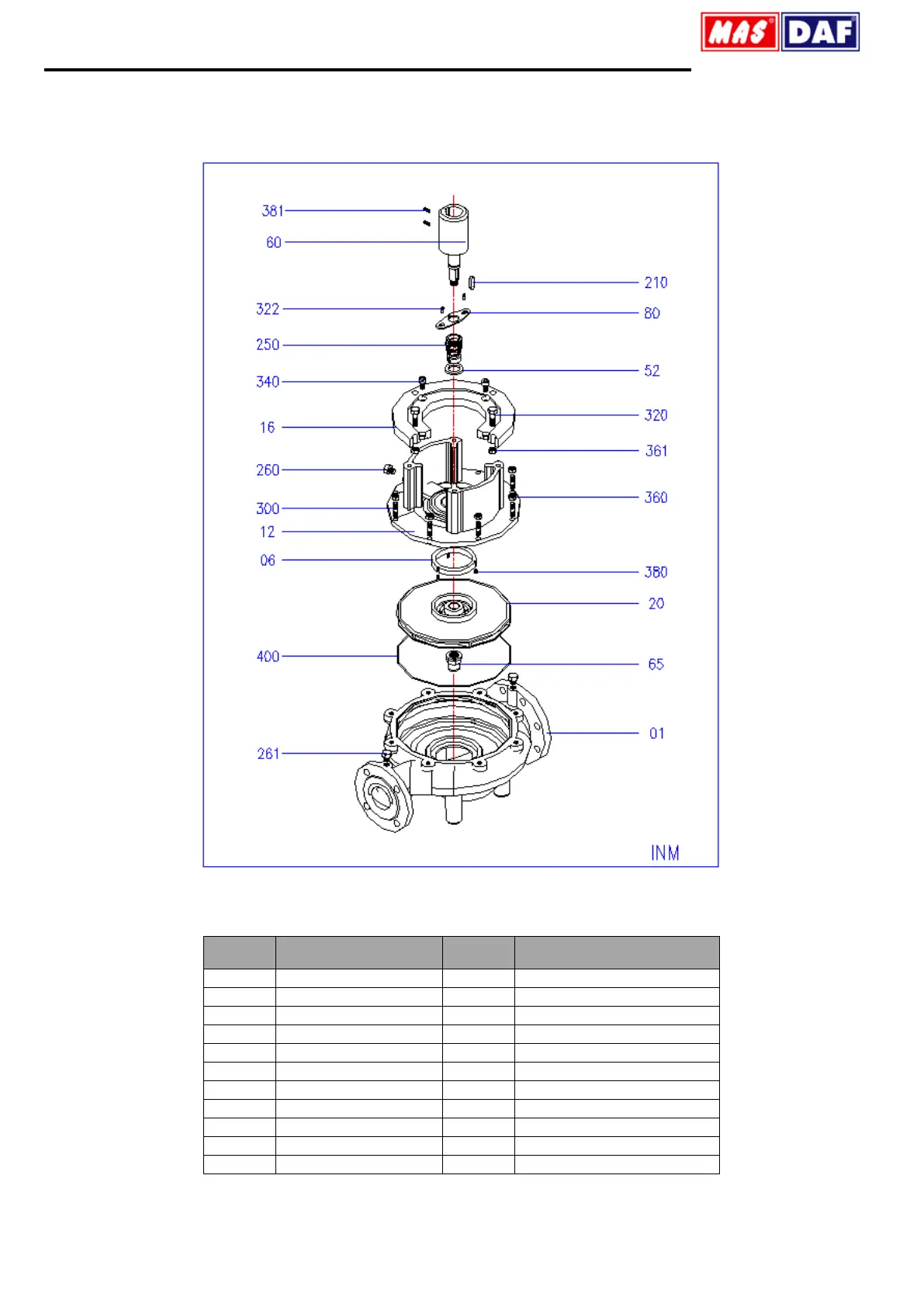

Figure 10: INM Drawing For Dismantling (without coupling)
Part No
Part Name
Part No
Part Name
01
Volute Casing
260
Pipe Plug, Adapter
06
Wear Ring
261
Pipe Plug, Pressure Gauge
12
Adapter
300
Stud, Volute Casing
16
Motor Flange
320
Hex Bolt
20
Impeller
322
Hex Bolt
52
Mechanical Seal Ring
340
İmbus Bolt
60
Pump Shaft
360
Nut
65
Impeller Nut
361
Nut
80
Shackle
380
Setscrew
210
Key, Impeller
381
Setscrew
250
Mechanical Seal
400
O-Ring
Table 10: INM Drawing For Dismantling Part List (without coupling)
