5. Gearshift Indicator
This indicator will show the current gear where the motorcycle is. There are
all 4 gears. The 4 number indicators will be lit in turn on shifting. However,
when the gear shifter is set in the neutral mode, they will extinguish, but
only neutral indicator (N) is lit.
6. High beam indicator lamp
When the head light is in high beam, the indicator is lit.
7. Trip mileage recorder
Indicates the distance traveled on a day or a partial area.
8. Indicator neutral mode
Lights in neutral.
9. Engine light
If this indicator light comes on at the meter, it is necessary to go to an
authorized Mash dealer to make a diagnosis.
Ignition switch

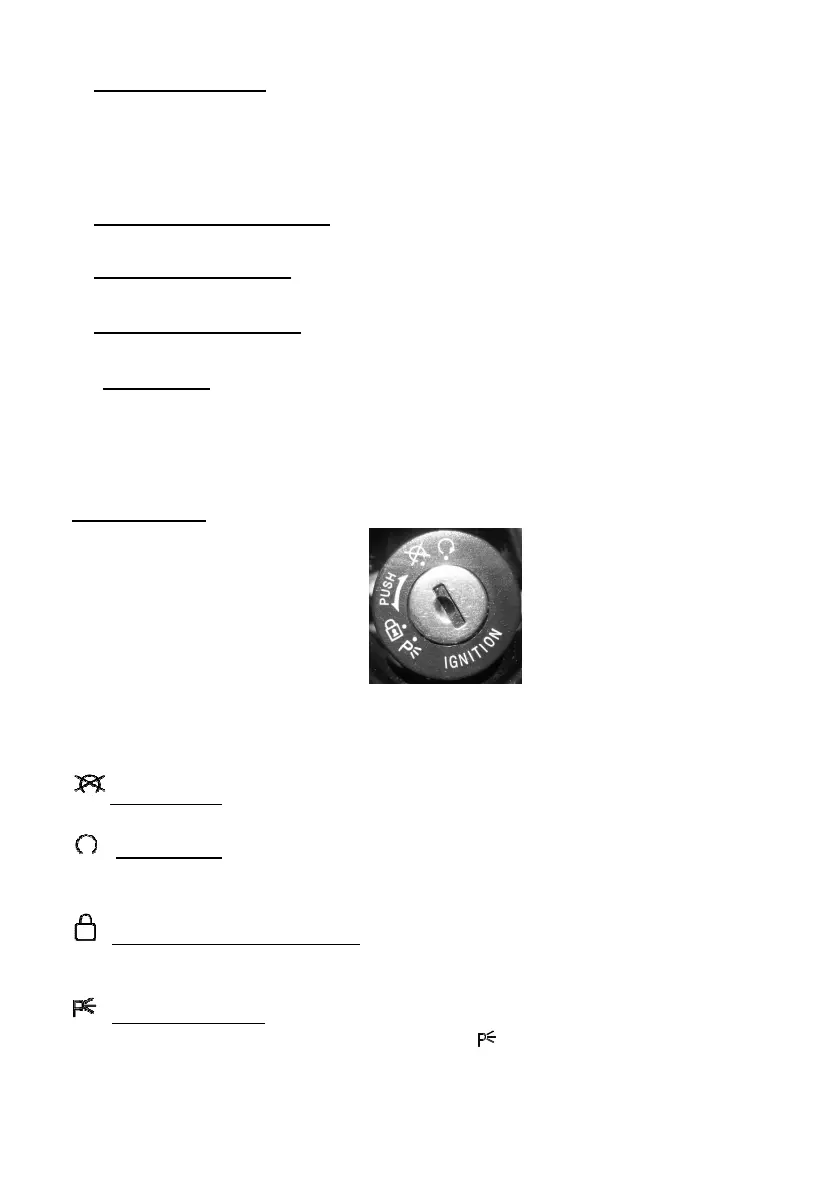

FIG. 1
There are four types position as showed in following sketches
OFF Position
All circuits are disconnected and the key can be removed.
ON Position
All igniting circuits are ON and the engine can be started. The key cannot
be removed in this position.
Lock the handlebar Position
In order to lock the handlebar, turn the bar to the left, then insert the
key. Rotate it clockwise to full stop for locking the handlebar.
Parking position.
To park the motorcycle, turn the key to “ ” position. In this position, the
key can be removed and the tail lamps (parking lamps) and front
positioning lamps keep ON for parking on roadside at night.
