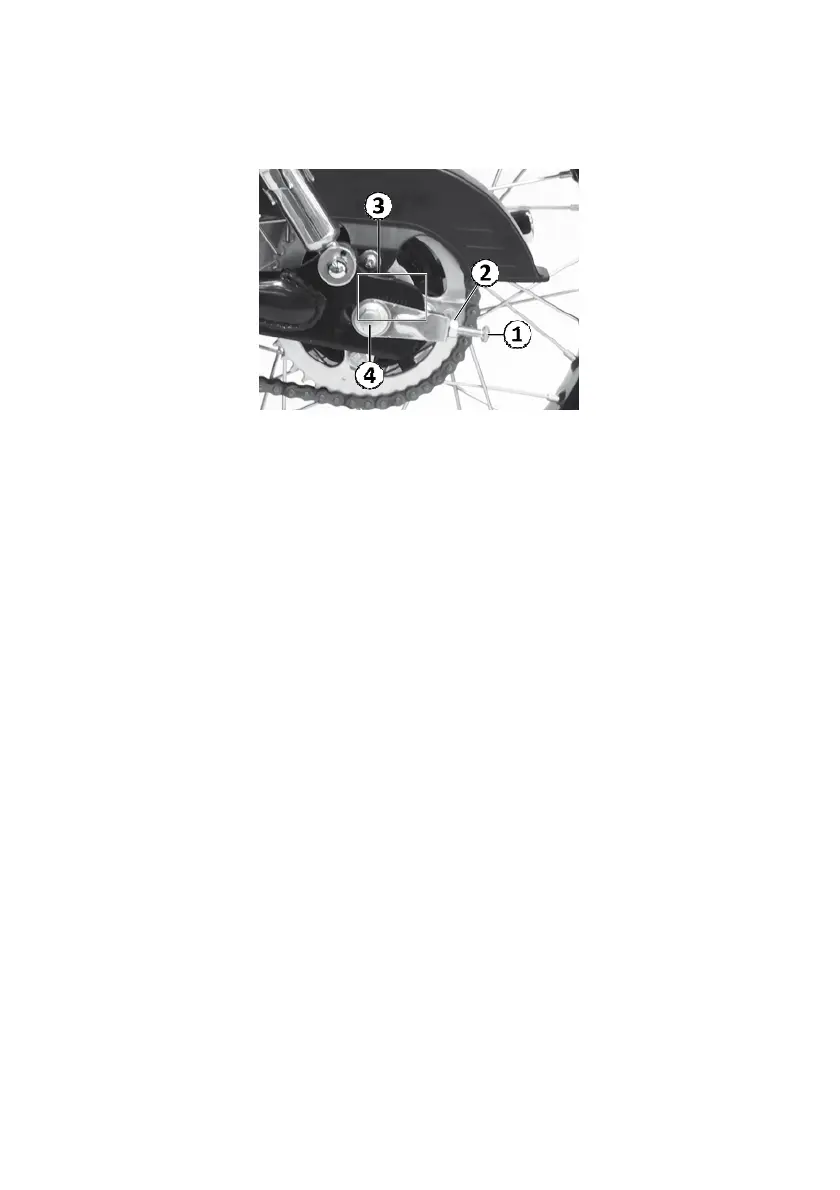

Adjustment of driving chain
1. Adjusting bolt 2. Locking nut
3. Mark 4. Rear wheel shaft nut
To adjust :
1、 Park the motorcycle with central stand.
2、 Loosen rear wheel shaft nut.
3、 Loosen the locking nut.
4、 Rotate the adjusting bolt left and right to adjust the chain.
Note :
When a new chain is installed, it is necessary to check both chain wheels.
Replace if necessary.
The tension of driving chain shall be adjusted every 1000 km, to keep a
removable distance of 20 - 30 mm in the midpoint of the two chain wheels.
