It’s the Whole
Package!
Parts & Features
1.1.
What’s included…

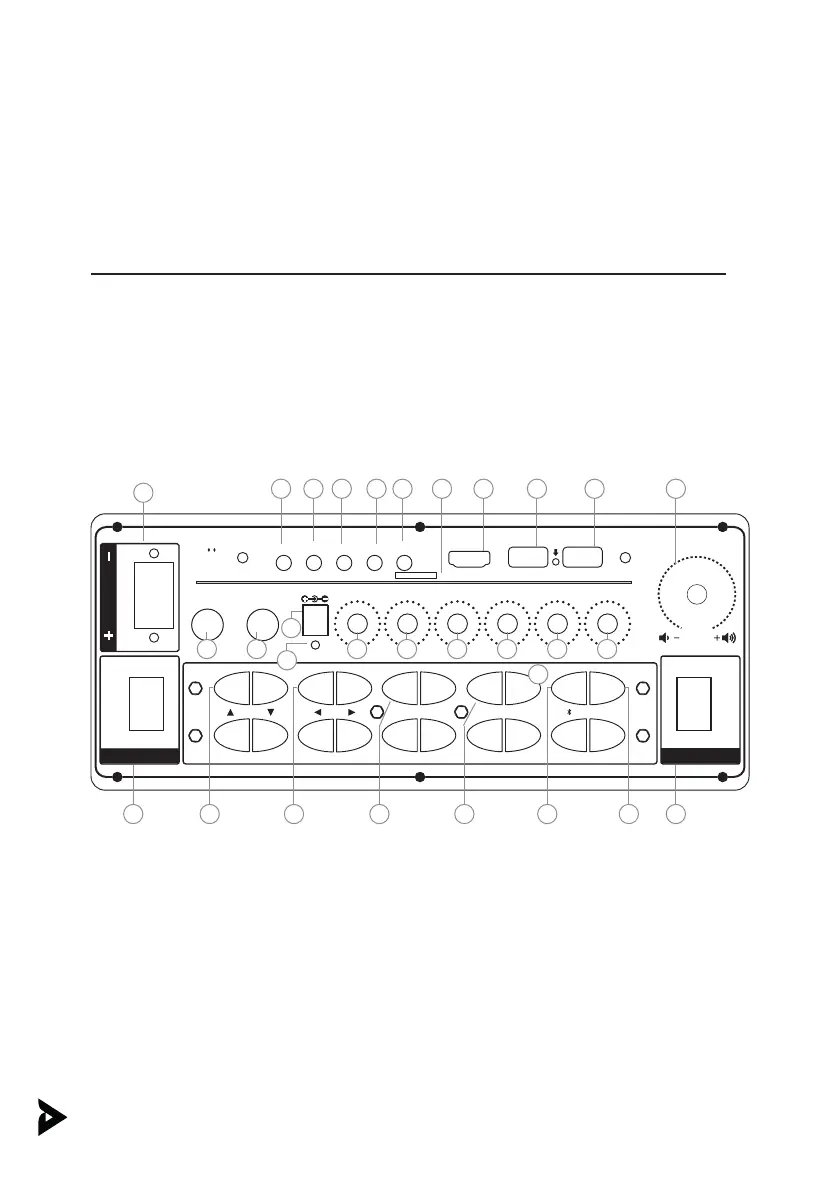

Function Board
1x Masingo Karaoke Machine
2x Wireless Microphones
1x Remote Control
1x Charging (DC15V) Cable
1x Performer’s Manual
1x 3.5 mm Aux Cable
1. DC12V Car Charging Port
2. 3.5mm AUX Line Out
3. 3.5mm Live Audio Port
4. 3.5mm Headset Port
5. 3.5mm AUX Line In
6. 3.5mm Condenser Mic Input
7. TF Slot (MicroSD)
8. HDMI Line Out
9. USB Slot
10. USB Slot
11. Audio Volume
12. LED on/o
13. 6.5mm Mic Input
14. Guitar-In Port
15. DC15V (regular) charging port
16. Charging Indicator Light
17. Guitar Volume
18. Voice Delay
1 9. Audio Echo
20. Mic Bass
21. Mic Treble
22. Mic Volume
23. Up/Down
24. Left/Right
25. Enter/Exit
26. Karaoke Mode
2 7. Media Player
28. Bluetooth
2 9. Mic Priority
30. Sound Eects / Manual Input
31. Machine Power
AUDIO OUT
MIC. IN GT. IN
M. VOLM. TREBLEGT. VOL
DC15V
CHARGING
DELAY
M. BASSECHO
TF
LIVE HEADSET LINE IN CONDENSER MIC
HDMI
USB 2 USB 1
ON
OFF
ON
OFF
POWER
ENTER EXIT
KARAOKE
MODE
MEDIA
PLAYER
BT MIC PRITY
LED POWER
DC+12V INPUT
1 2 3 4 5 6 7 8 9 0
VOLUME
10986 75432
1
12 312928
2220
27
1814
15
211917
16
13
26252423
11
[Parts & Features]
