Masport H Series User Manual

34
Owner/Operator Manual

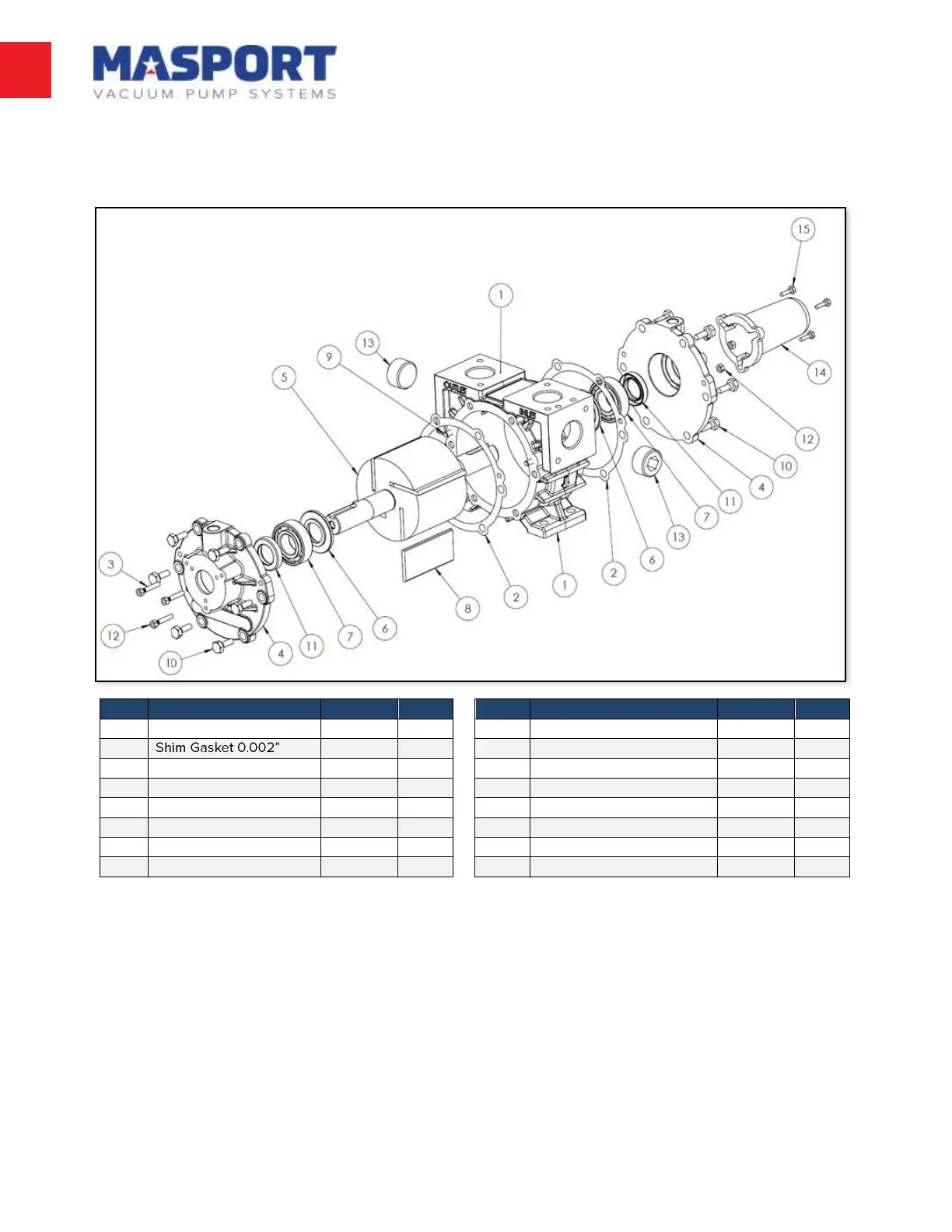

Exploded Views
H1F:
* Quantity may vary pump to pump
Item
Description
Part No.
Qty
Item
Description
Part No.
Qty
1
Cylinder
968111
1
9
Dowel Pin
575111
4
2
575024
*
10
Screw M8 x 30
501848
12
3
Grub Screw M5 x 20
503225
6
11
Seal
501578
2
4
End Cover
968109
2
12
Nut M5
220221
6
5
Rotor Assembly
968154
1
13
Plug
501679
2
6
Spacer
975109
2
14
Shaft Guard
675264
1
7
Bearing
501574
2
15
Screw M5 x 26
503227
3
8
Vane Pack
968217
4
