AUSTRALIA
A # C# G H J K L W S #
Horizon (with flue shield) 150* 320* 170 435 555 160 300 875 885*
LE 2000 (with flue shield) 125 295 170 435 555 160 300 875 860
Siena (with flue shield) 150 320 170 490 555 160 300 875 940
Siena (without flue shield) 360 530 170 490 555 160 300 875 1150
LE 3000 & LE 5000 (with fl. shld) 150* 375* 225 490 660 138 350 935 990*
Verona (with flue shield) 250† 470† 220 560 660 140 300 940 1110†
Toronto (with flue shield) 125 320 195 540 660 153 300 965 965
Grandview (with flue shield) 150 345 195 610 760 103 300 965 1060
* Reduce by 25mm for a polished stainless steel heat shield instead of an enamelled one.
Reduce by 50mm for a polished stainless steel heat shield instead of an enamelled one.
† Reduce by 125mm for a polished stainless steel heat shield instead of an enamelled one.

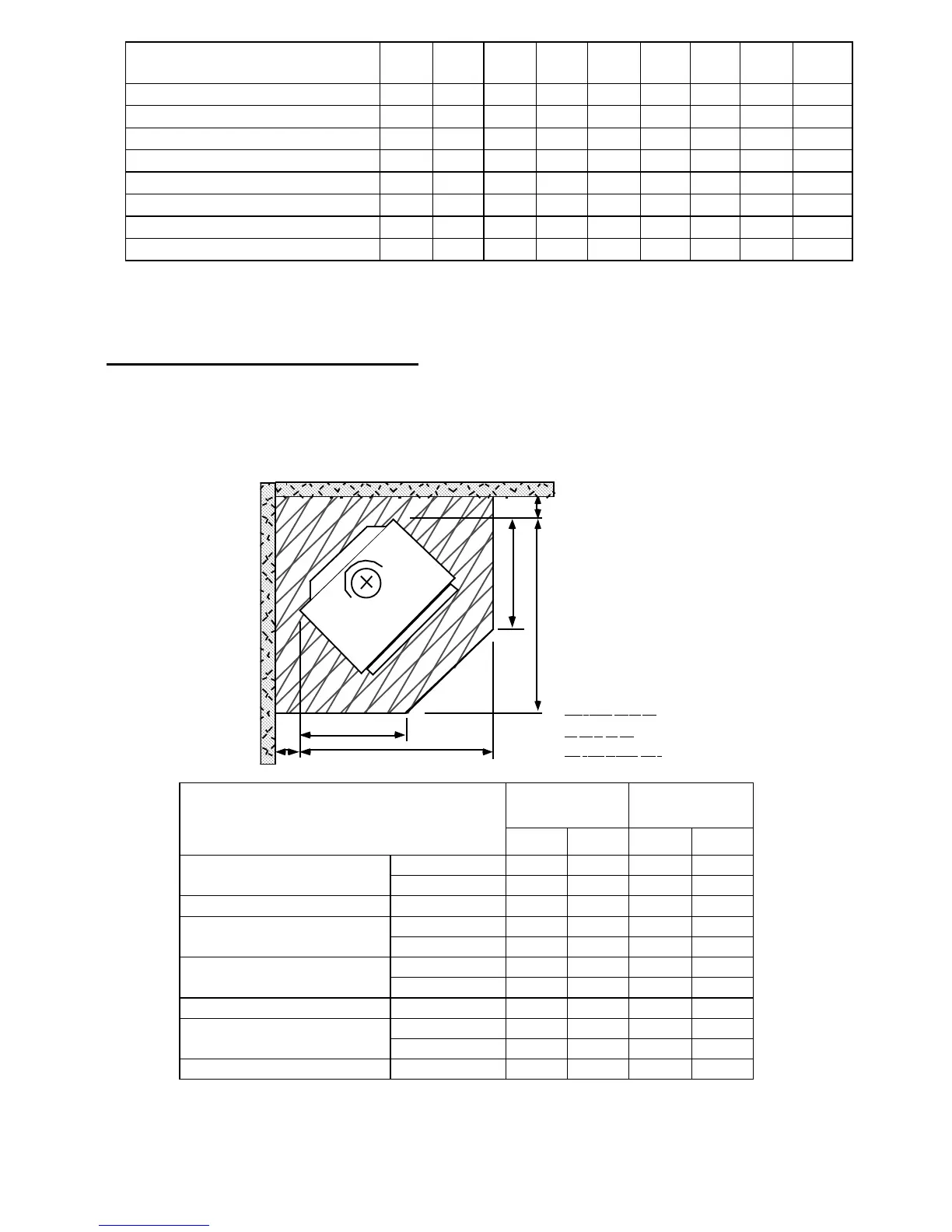

CORNER FLOOR PROTECTORS (Hearths)
While the information in the previous section details the MINIMUM size of floor protector necessary
to comply with the Safety Standards, it may often be desirable to use a somewhat larger size for
aesthetic reasons. A particular example is when the woodfire is installed diagonally in a corner. It will
be more practical to carry the protector right into the corner and shape it as shown. The chart
facilitates calculation of the MINIMUM dimensions required for floor protectors of this shape.
Minimum allowable values for dimension ‘E’ are given in the tables on page 4.
E
E
X
X
Y
Y
Corner Floor
Protect or
Arrangement
MINIMUM DIMENSIONS — mm AUSTRALIA
NEW
ZEALAND
See pages 6, 8 for construction.
X Y X Y
Horizon, With Shelf 880 560 880 565
LE 2000 Without Shelf 880 560 — —
Siena 880 600 880 600
With Shelf 980 605 950 570LE3000
Without Shelf 980 605 1035 650†
LE 5000 With Shelf 980 605 950 570
Without Shelf 980 605 — —
Verona 970 655 970 655
Toronto With Shelf — — 1015 640
Without Shelf 1025 625 — —
Grandview 1100 725 1250 890†
Your measurement ‘E’ must be added to ‘X’ and ‘Y’ to find the appropriate minimum overall
floor protector dimensions. See page 4 for minimum values of ‘E’.
† Increase ‘Y’ by 120mm if the floor protector top is not at least 50mm above the floor.
