4-17 Control Functions
vehicle from moving while parked.
To set the parking brake, depress the parking
brake pedal completely.
To release the parking brake, Pull down the
parking brake release handle and depress
the parking pedal simultaneously; Release
the handle and lift foot off the parking brake
gradually. Spring pressure helps return the
pedal to the released position. Be sure to
fully release the parking brake before starting
out. Failure to do so may result in poor
performance and premature wearing of the
rear brake and V-belt.

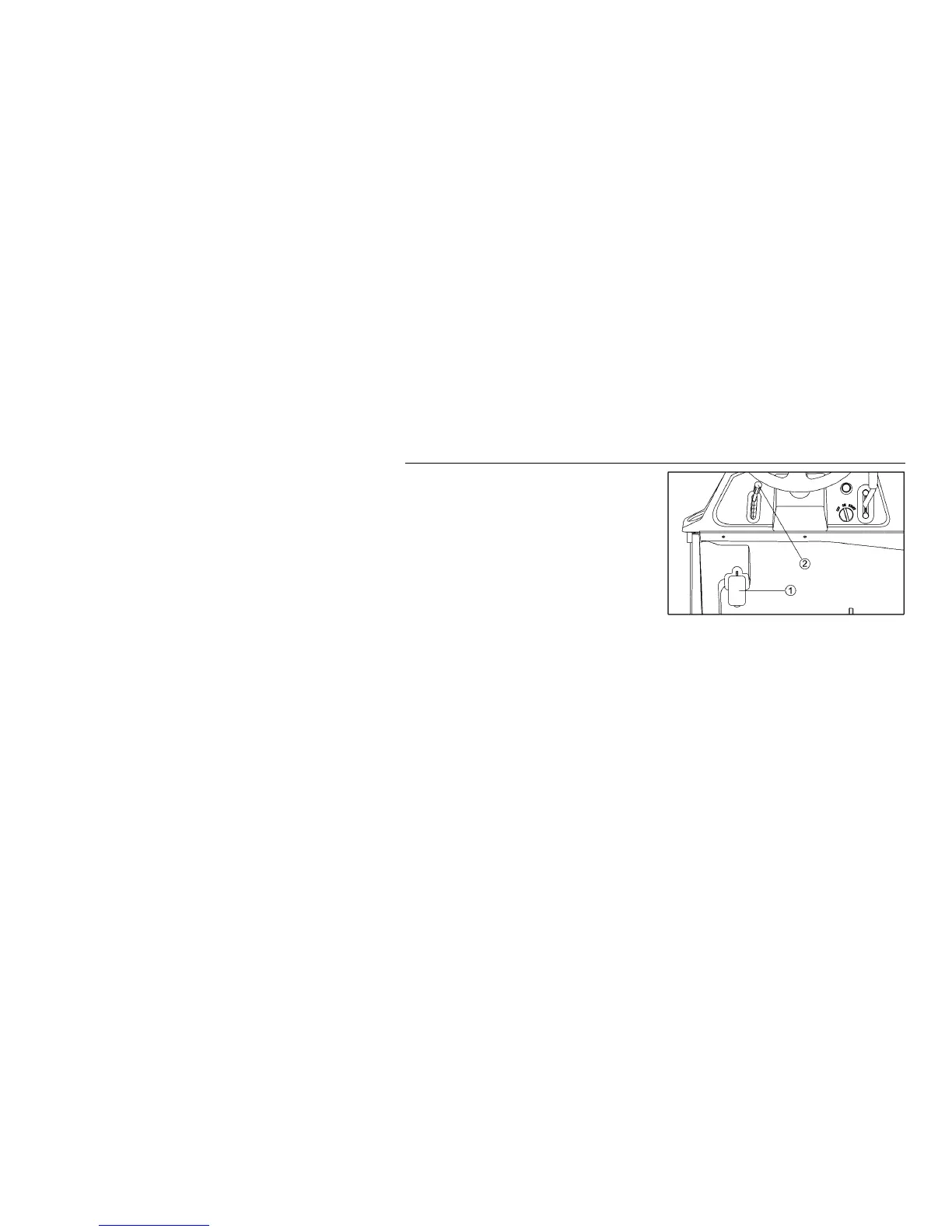

1. Parking brake pedal
2. Parking brake pedal release lever
Drive Select Lever
The drive select lever is used to shift the
vehicle into forward, neutral and reverse
positions. (Refer to pages 6-5 for drive select
lever operation.)
