Massive Audio BP200.2 - Page 10

4 OHM MINIMUM
2 OHM MINIMUM

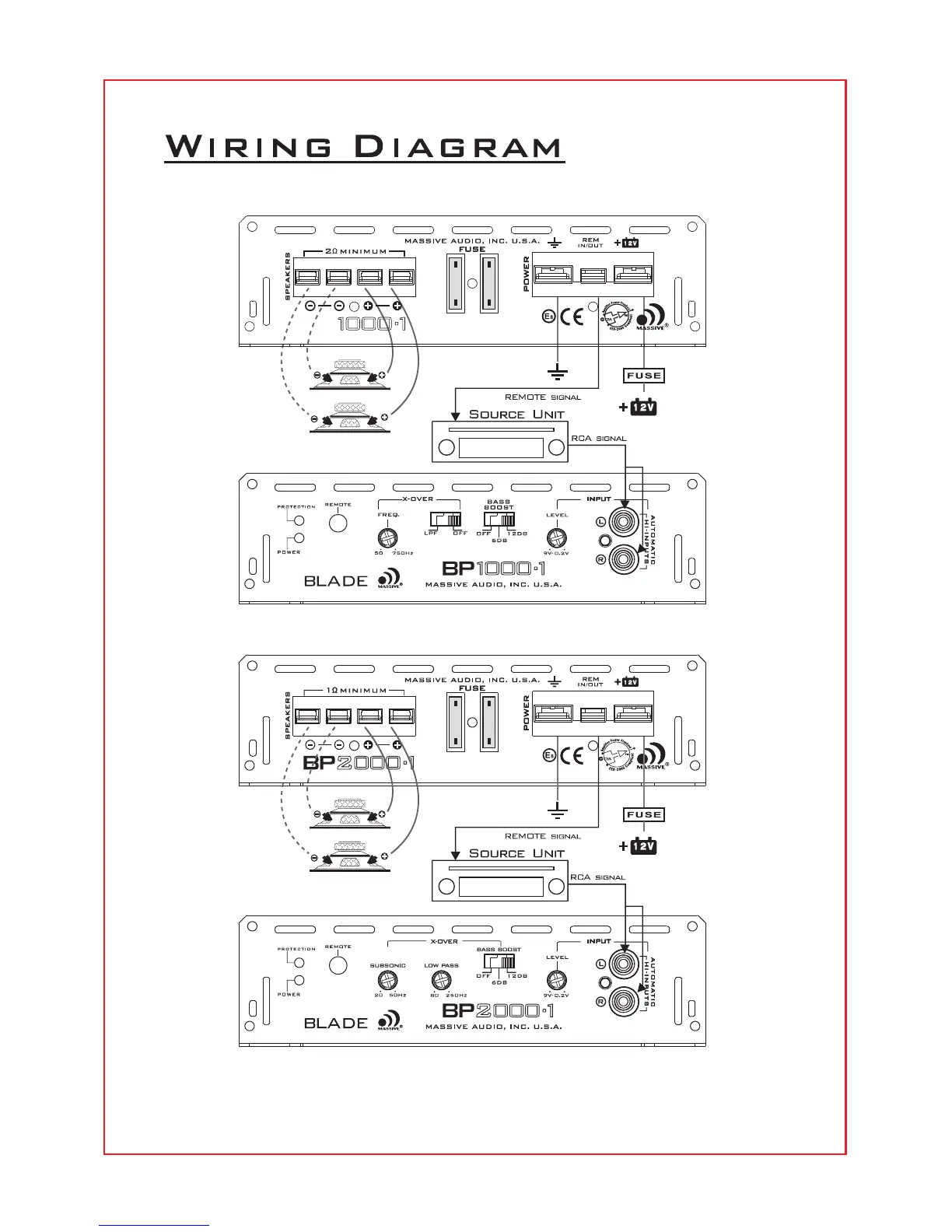

Fig 6. Mono Amplifier Wiring
BP1200.1/BP2000.1
BP600.1/BP1000.1
BP
9
*Subwoofer loads cannot be less than the minimum stable impedance rated
in this manual.
The two negative and positive speaker terminanls are wired internally.
Only one neagative and one positive terminalis required when wiring to bp
mono amplifiers.
