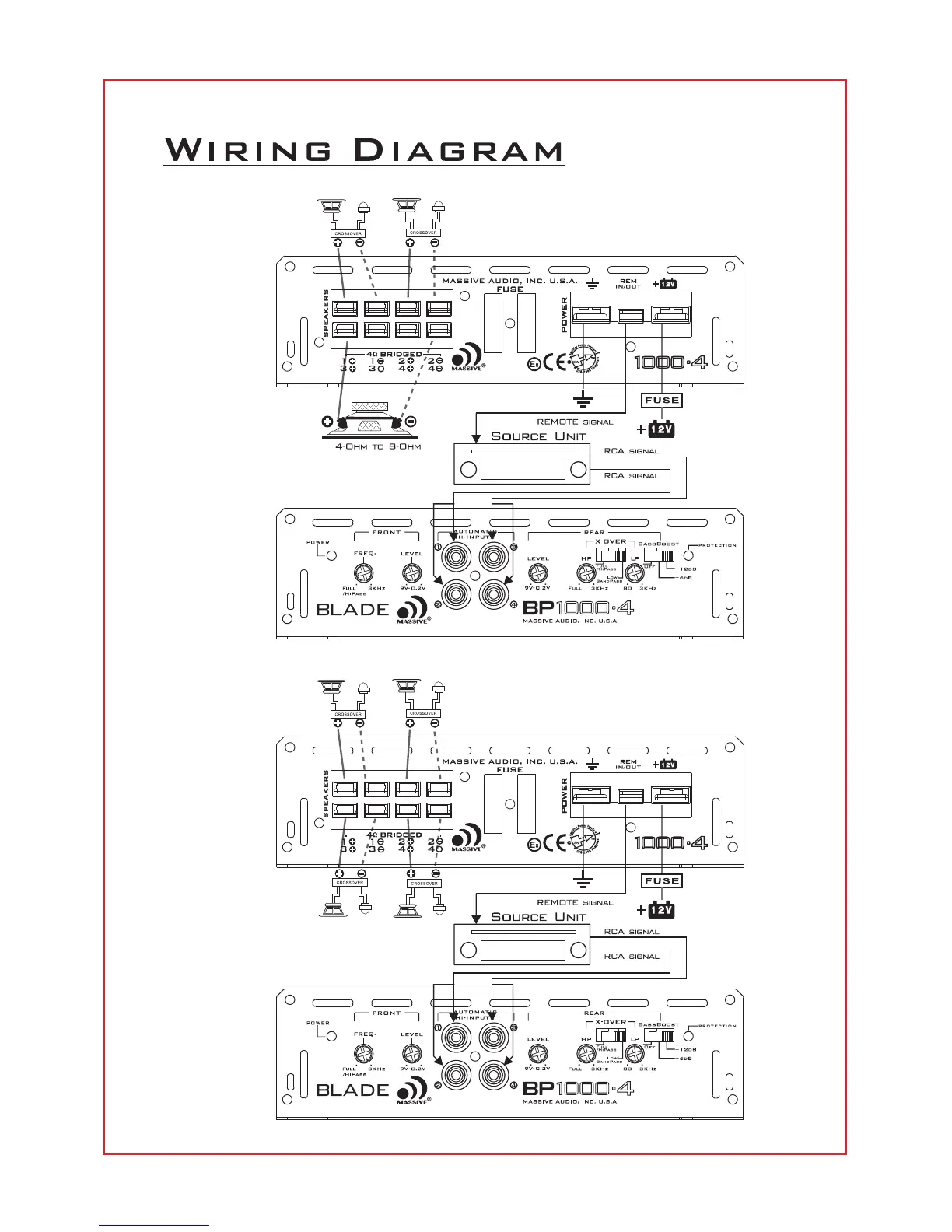

Fig 10. BP800.4/1000.4 Amplifier Wiring
(3-CHANNEL MODE)
2OHM-4 OHM 2OHM-4 OHM
BP
Fig 11. BP800.4/1000.4 Amplifier Wiring
(4-CHANNEL MODE)
2OHM-4 OHM 2OHM-4 OHM
2OHM-4 OHM 2OHM-4 OHM
BP
12
