11
Fig 8. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
In 2ohm state
EX46/EX48

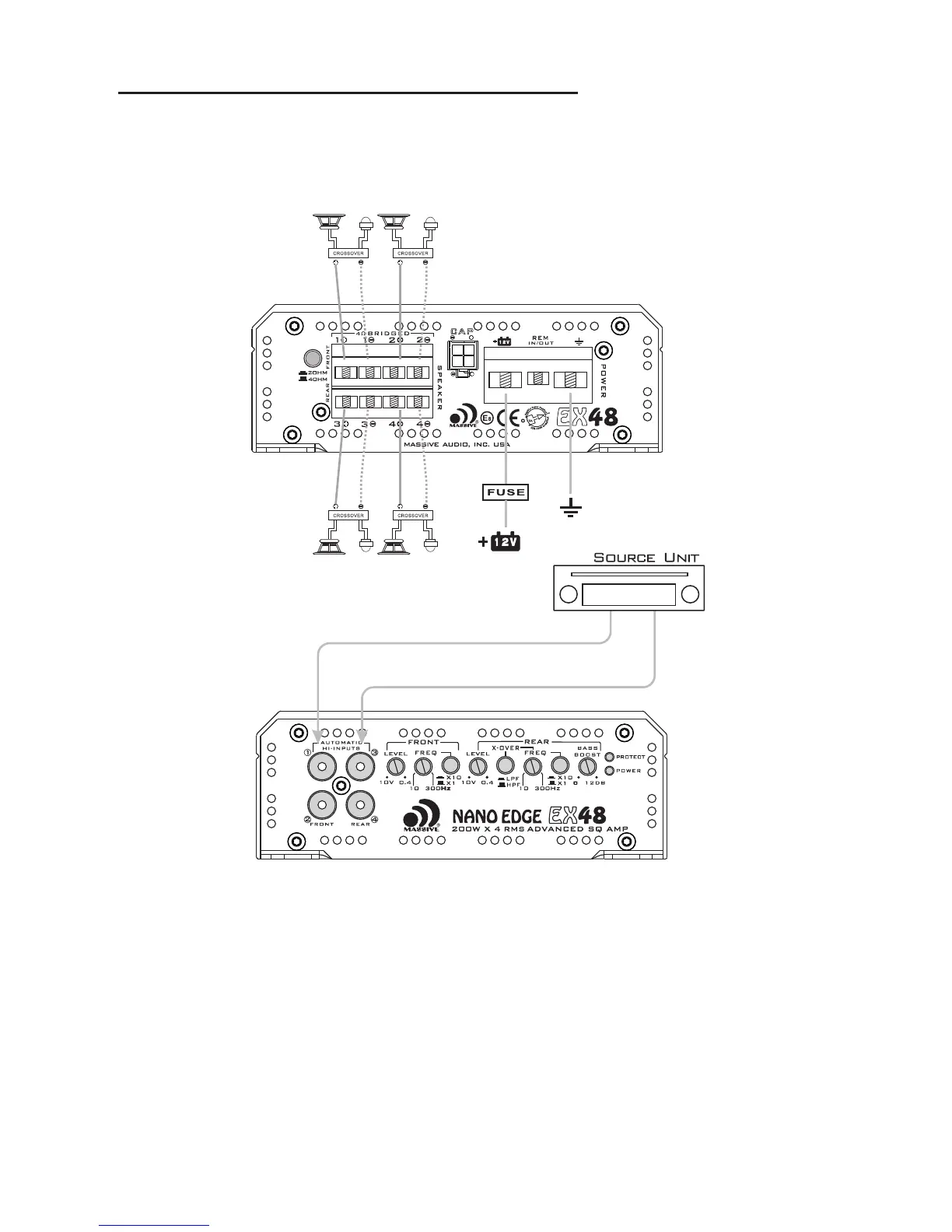

Fig 9. Ex44 / Ex46 / Ex48 AMPLIFIER WIRING
(4-CHANNEL MODE)
Wiring Diagram
Explain: EX46/ EX48 has regulated power supply circuit to offer dual output
power. When use 2ohm/4ohm BTL speaker output, please choose 2ohm option.
When use 4ohm speaker output, please choose 4ohm option.
SPEAKER Signals
SPEAKER Signals
12
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM
2OHM-4OHM 2OHM-4OHM
