Fig 10. EX5 AMPLIFIER WIRING
(5-CHANNEL MODE)
Wiring Diagram

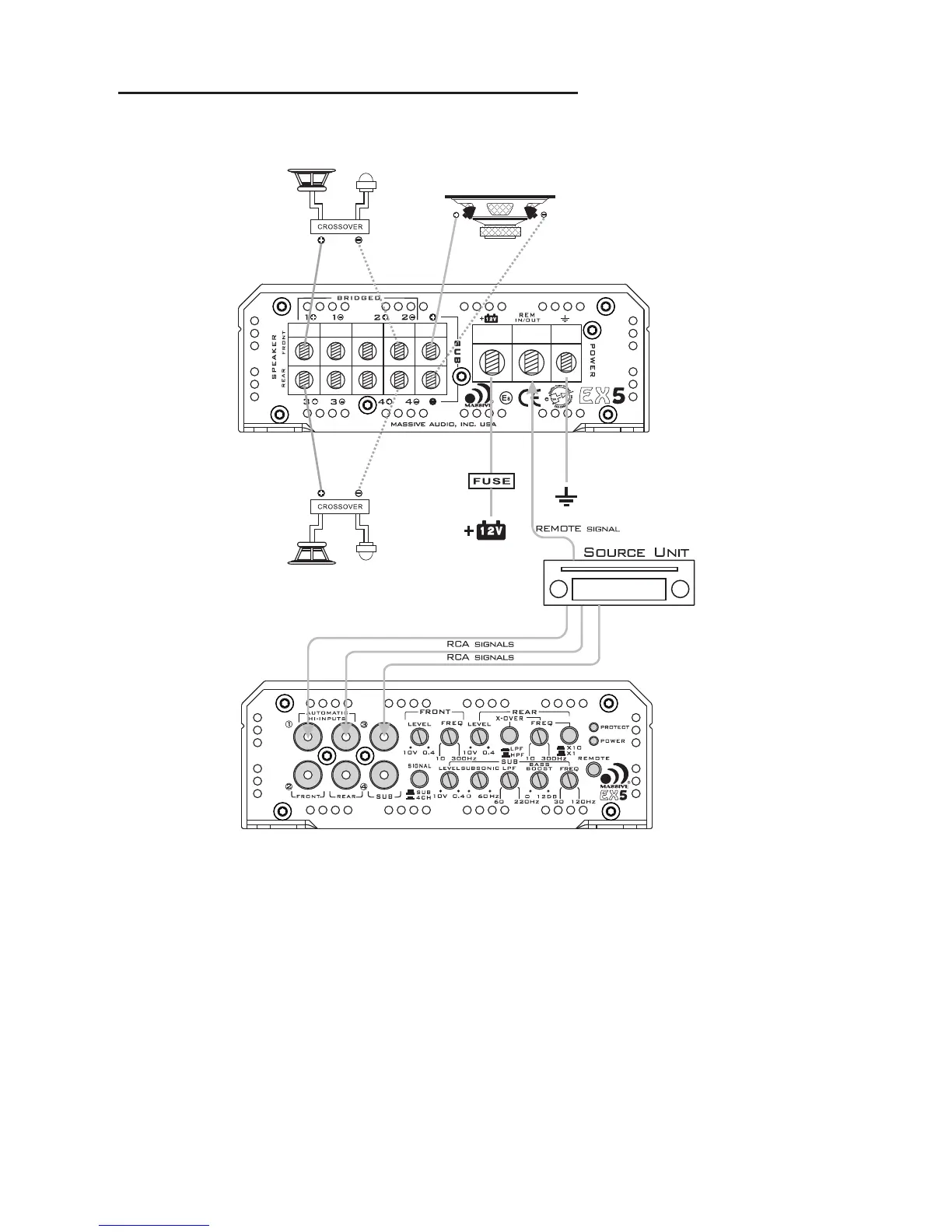

Fig 11. EX5 AMPLIFIER WIRING
(3-CHANNEL MODE)
Wiring Diagram
1OHM Minimum
1OHM Minimum
4OHM-8OHM
2OHM-8OHM 2OHM-8OHM
2OHM-8OHM 2OHM-8OHM
4OHM-8OHM
