Mastech MS7220 - Operation: Measuring a Thermocouple

Operation:
Measuring a Thermocouple

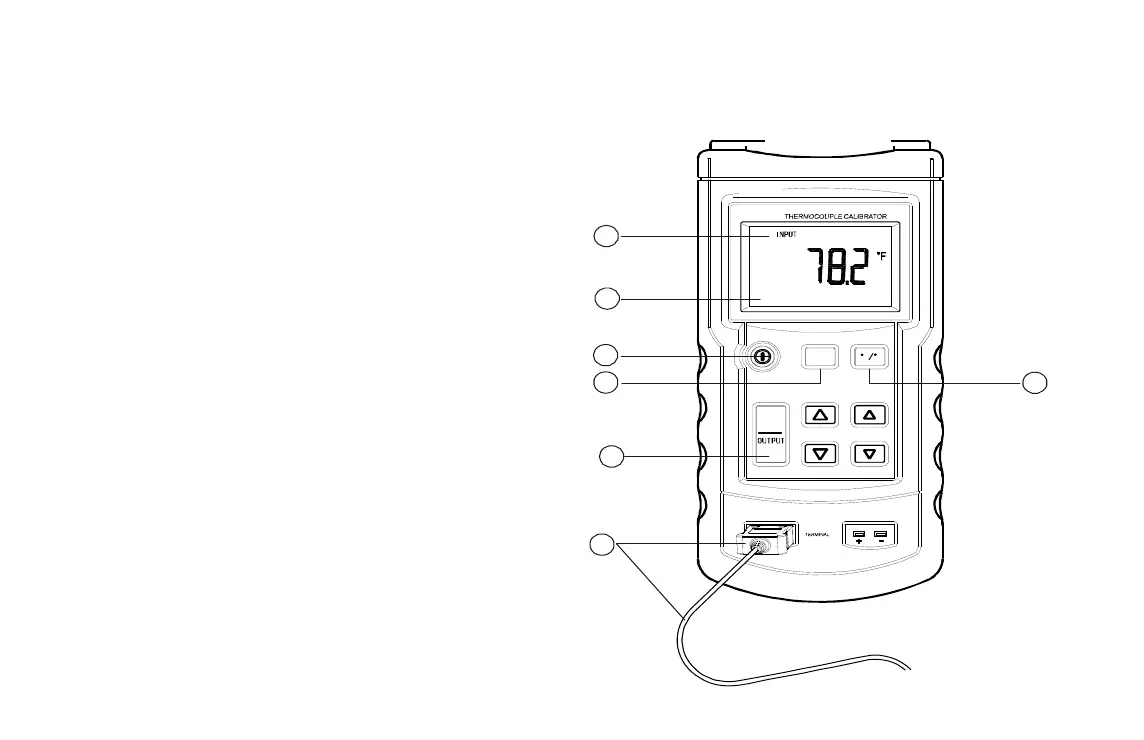

① INPUT.
② Shows TC type select.
③ Press to select ON or OFF.
④ Press to select TC type or mV.
⑤ Press so that INPUT is on the display.
⑥ TC wire and mini plug of same type as selected.
⑦ Press to toggle ℃ or ℉.
