1.4 Maintenance
1.4.1 Please do not attempt to adjust or repair the
meter by removing the rear case while voltage
is being applied. A technician who fully
understands danger involved should only carry
out such actions.
1.4.2 Before opening the battery cover or case of the
meter, always disconnect test leads from all
tested circuits.
1.4.3 To avoid the wrong reading causing electricity
attack, when the meter displays“ ”, you must
change the battery.
1.4.4 For continue protection against fire, replace fuse
only with the specified voltage and current
ratings: F 200mA/250V (quick acting).
1.4.5 Do not use abrasives or solvents on the meter,
use a damp cloth and mild detergent only.
1.4.6 Always set the power switch to the OFF position
when the meter is not in use.
1.4.7 If the meter is to be stored for a long period of
time, the batteries should be removed to prevent
damage to the unit.
2. Description
- This meter is a portable professional measuring
instrument with handsome LCD and back light
easily reading.
- Single operation of a transform switch makes
measurement convenient. Overload protection and
low battery indication are provided, this meter is
ideal for use in the fields, workshop, school, hobby
and home applications.

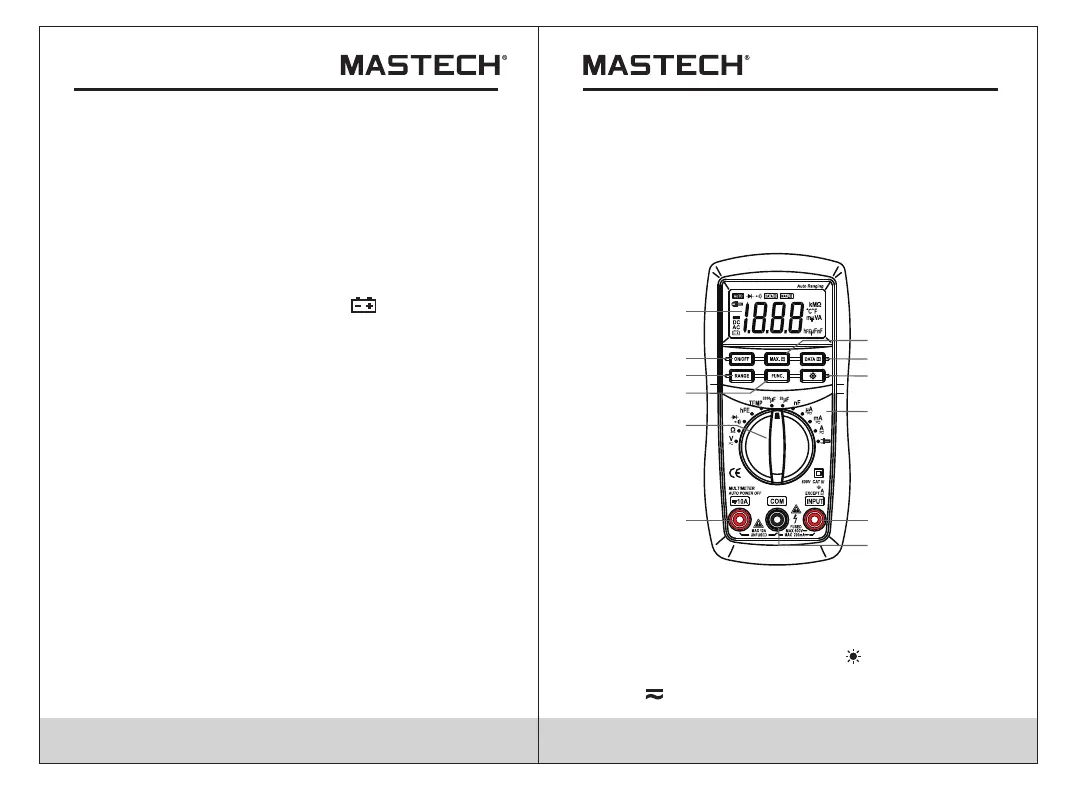

2.1 Names of Components
- This meter has function of auto range and manual
range.
- This meter has function of auto power off.
- This meter is with the functions of data hold and
maximum value hold.
(1) LCD Display
(2) ON/OFF Button
(3) RANGE Button
(4) FUNC. Button
(5) Transform Switch
(6) 10A Jack
(7) INPUT Jack
(8) COM Jack
(9) Panel
(10) Button
(11) DATA-H Button
(12) MAX. H Button
(1)
(2)
(3)
(4)
(5)
(6) (7)
(8)
(9)
(10)
(11)
(12)
