Evaporator Suction Outlet Temperature Sensor Location
:

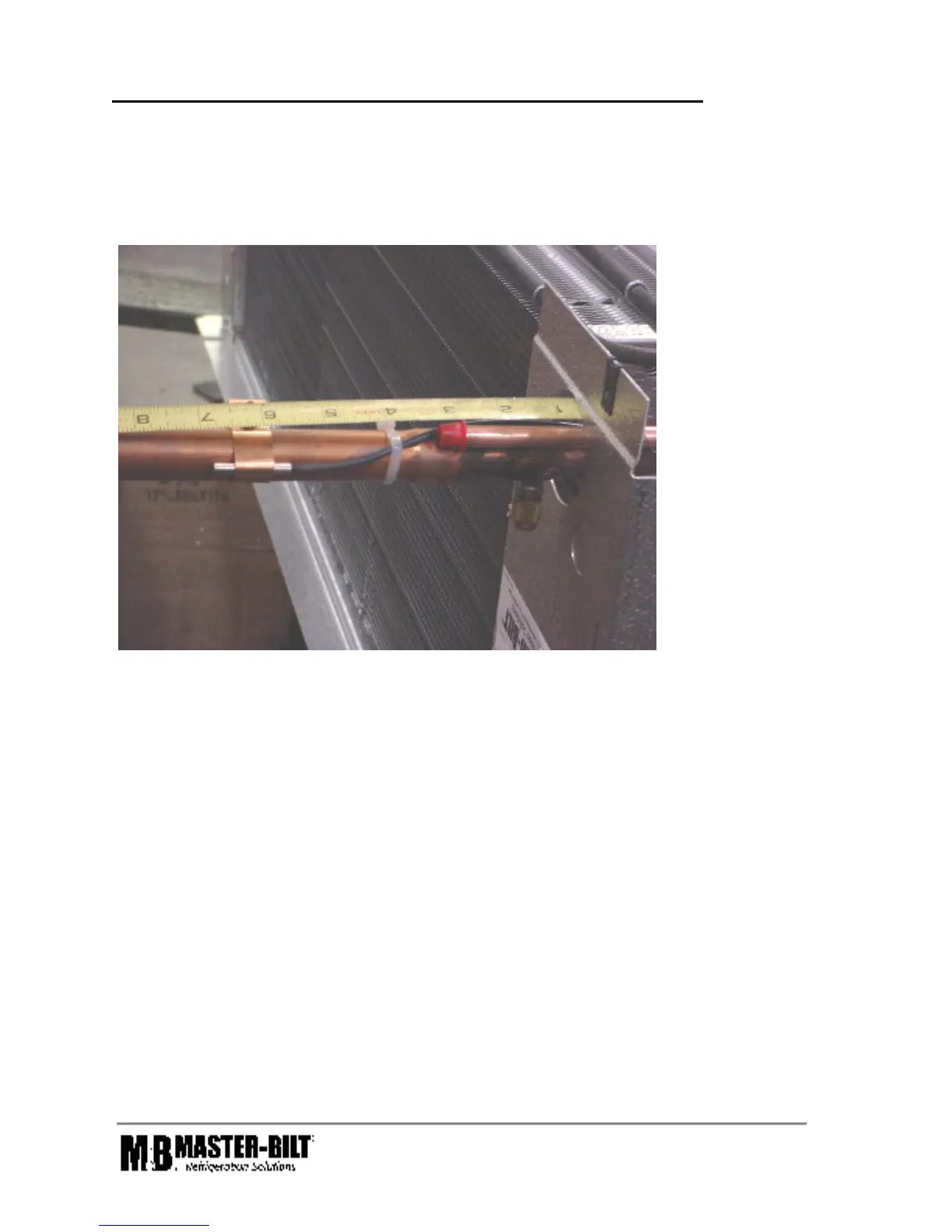

The sensor should be mounted on the suction line about 6” or more away from the evaporator as
indicated in the picture below. The sensor should be mounted on 10:00 to 2:00 O’clock position for true
vapor temperature reading. Use metal strap provided by factory to fasten the sensor bulb. Apply insulation
around the suction line after installation.
