3

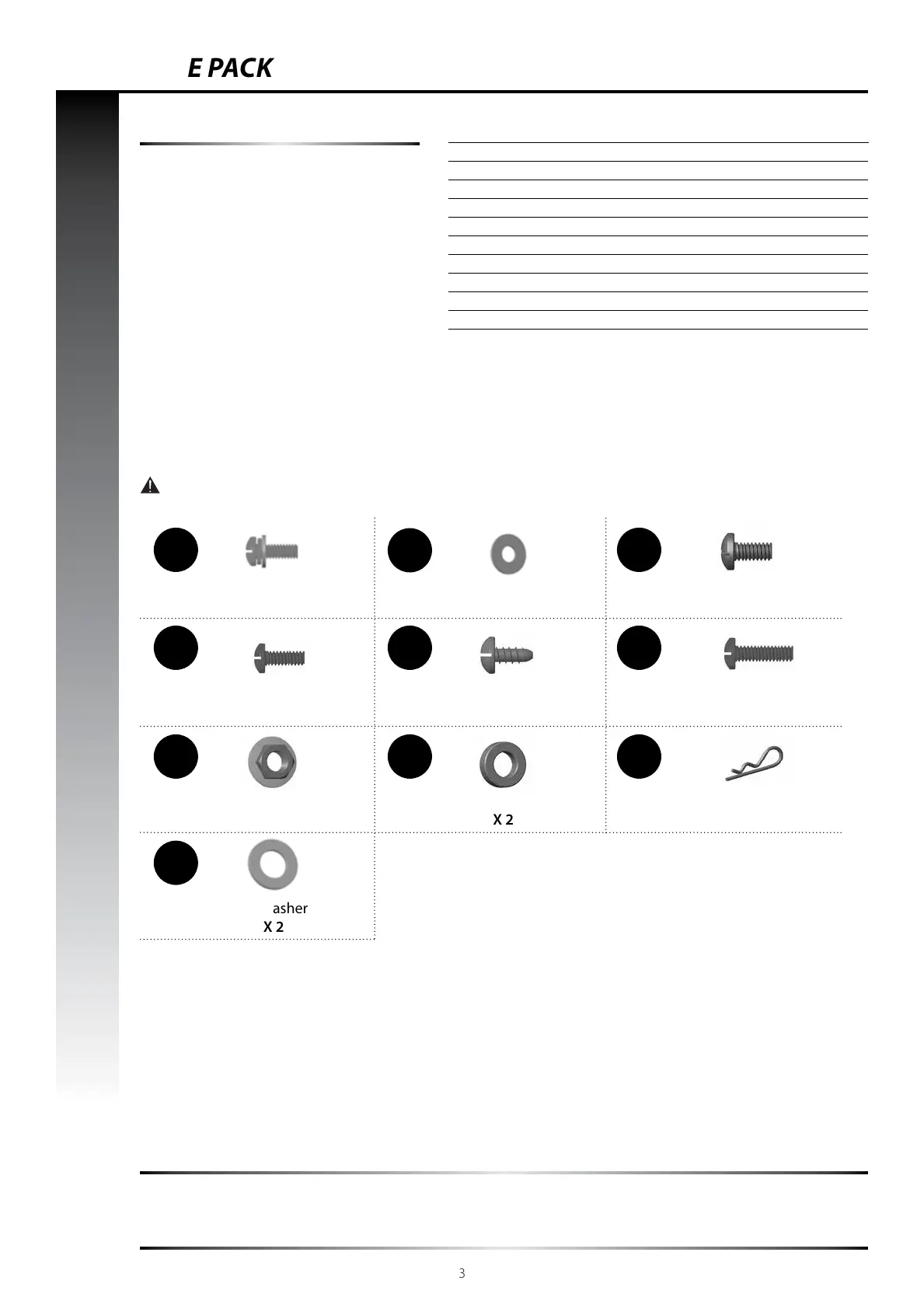

HARDWARE PACK
1/4”X18 Screw Assembly
X 2
1/4”-20UNC×13 Screw
X 36
NO.10-24UNC x18 Screw
X 1
Axle Spacer
X 2
φ6.5 Washer
X 6
NO.10-24UNC×13 Screw
X 6
NO.10-24UNC Nut
X 1
Hitch Pin
X 2
ST4.2×8 Tapping Screw
X 8
φ8 Washer
X 2
1 3
4
7
10
5
8
6
9
KEY # DESCRIPTION PART NUMBER QUANTITY
1 1/4”X18 Screw Assembly G560-3900-9091 2
2 φ6.5 Washer G466-0042-9000 6
3 1/4”-20UNC×13 Screw 20120-13013-036 36
4 NO.10-24UNC×13 Screw 20124-10013-036 6
5 ST4.2×8 Tapping Screw 24200-42008-136 8
6 NO.10-24UNC x18 Screw 20124-10018-036 1
7 NO.10-24UNC Nut 31224-10000-036 1
8 Axle Spacer G305-0024-9088 2
9 Hitch Pin G306-0005-9088 2
10 φ8 Washer 40300-08000-036 2
TOOLS NEEDED FOR ASSEMBLY
• #2 Star-head screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. The grill is heavy, two people are
recommended to complete assembly.
2
