Ignition heat shield
Push button igniter lock
nut and push button
igniter
Ignition wire

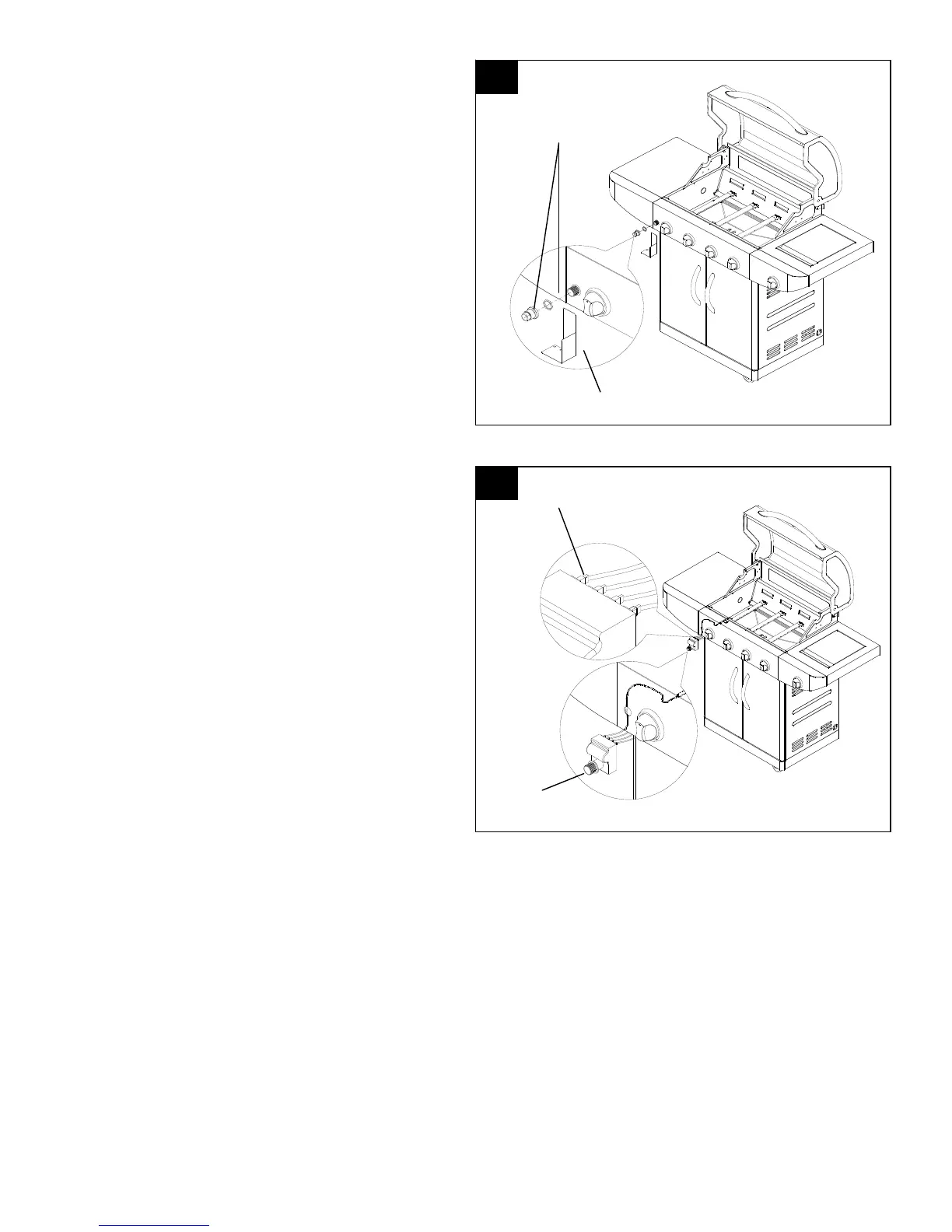

5. Feed the new main burner electrode
wire through the hole on the inside of the
grill and then reinstall the main burner
electrode with the two screws previously
removed. Fig. 04.
6. Plug the wire into the back of the push
button igniter where the previous wire was
removed. Fig. 5.
7. Reinstall the push button igniter lock
nut and push button, and then reinstall the
ignition heat shield with the two screws
previously removed.
8. Replace the flame tamers, cooking
grates and warming rack.
