Master Forge 5139524 User Manual

8

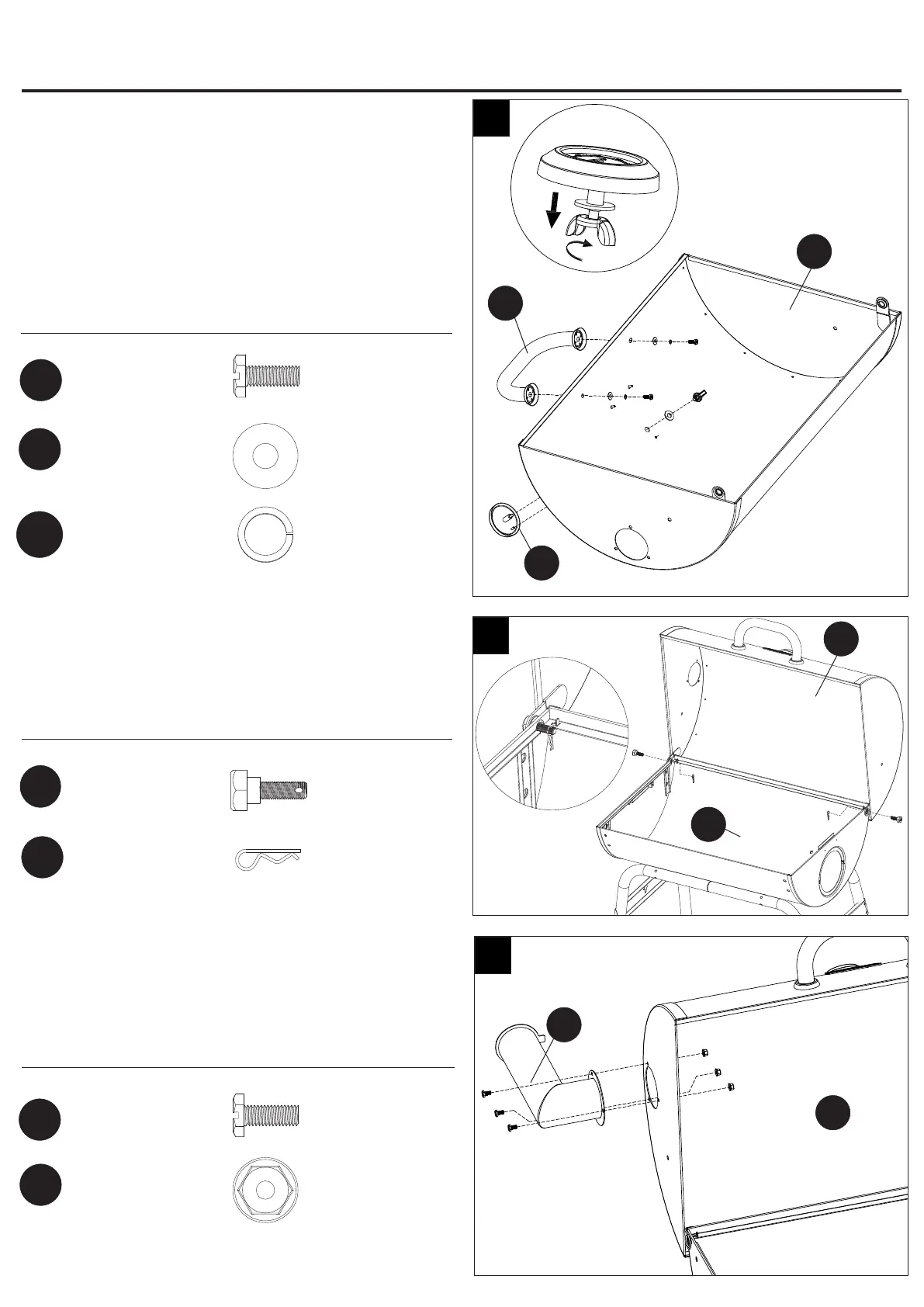

Step 5: Attach Lid Handle and Temperature Gauge
Remove the nut and washer pre-assembled on the
temperature gauge (A). Then attach the temperature
gauge (A) onto the lid (D) with the nut and washer.
Attach lid handle (B) onto the lid (D) with two M6x20
bolts (CC) and Ø16x6.2 washers (EE) and Ø6 lock
washers (HH).
Hardware Used
M6x20
Bolt
CC
x 2
5
ASSEMBLY INSTRUCTIONS
Ø16x6.2
Washer
EE
x 2
Ø6
Lock Washer
HH
x 2
Step 7: Attach Smoke Stack
Attach smoke stack (C) onto the lid (D) with three
M6x12 bolts (BB) and M6 nuts (GG).
Hardware Used
7
M6x12
Bolt
BB
x 3
Step 6: Attach Lid
Attach lid (D) onto the bottom bowl (I) with two M8
screws (KK) and Ø1.4x30 cotter pins (II).
Hardware Used
6
M6
Nut
x 3
Ø1.4x30
Cotter Pin
II
x 2
M8
Screw
x 2
D
C
D
D
I
B
A
KK
GG
