ASSEMBLY INSTRUCTIONS

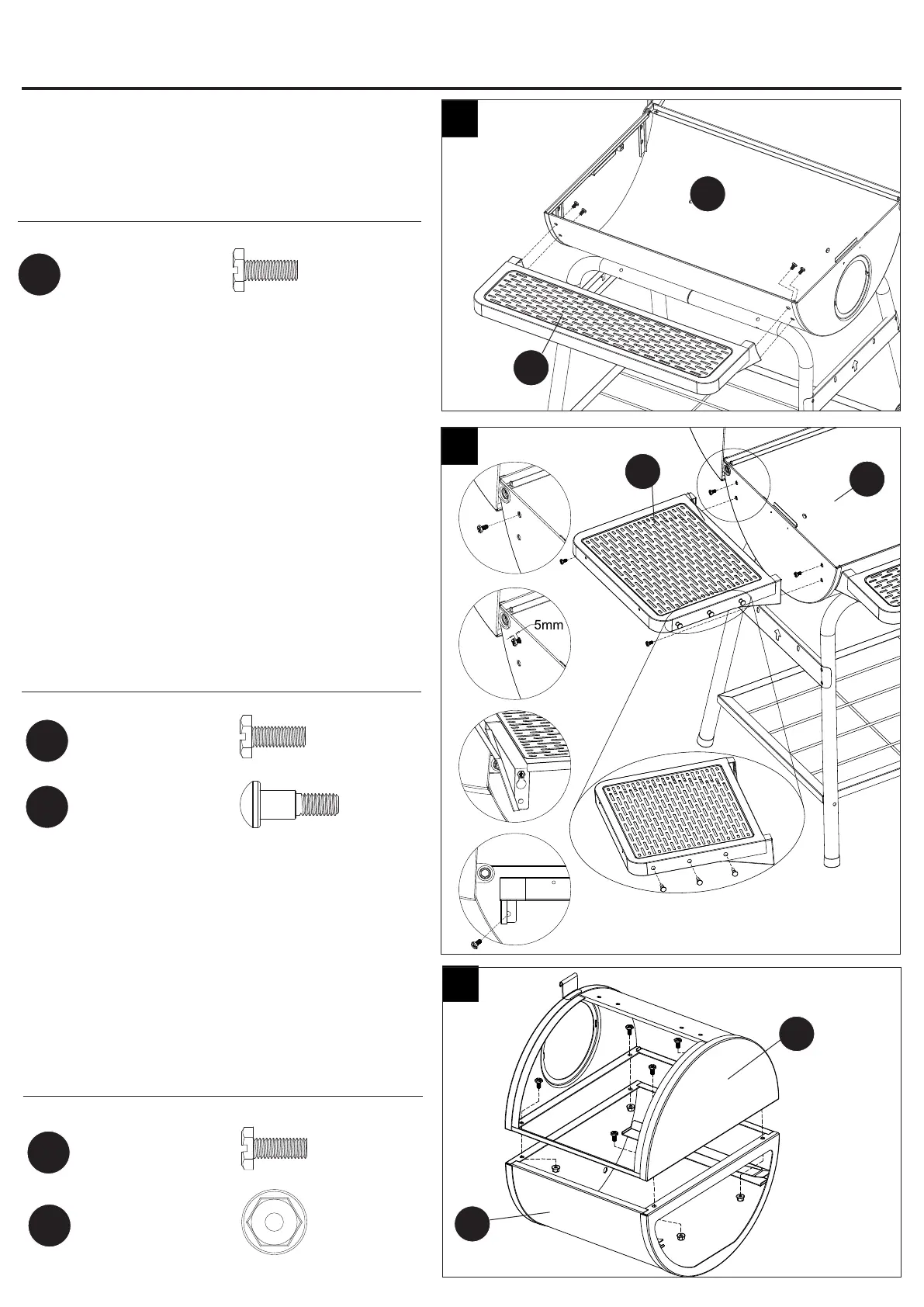

Step 8: Attach Front Shelf
Attach the front shelf (L) to the bottom bowl (I)
with four M6x12 bolts (BB).
Hardware Used
8
M6x12
Bolt
BB
x 4
I
M6x12
Bolt
BB
x 4
Step 9: Attach Left Side Shelf
Attach the left side shelf (H) to the bottom bowl (I)
with four M6x12 bolts (BB).
Attach three M6 screws (JJ) onto the left side
shelf (H).
Note: Insert two M6x12 bolts (BB) into the upper
holes with leaving 5 mm threads exposed.
Hardware Used
9
M6
Screw
JJ
x 3
First
Second
Third
Fourth
I
H
M6x12
Bolt
BB
x 4
Step 10: Attach SFB Body Top and SFB Body
Attach SFB body top (W) onto the SFB body (X)
with four M6x12 bolts (BB) and M6 nuts (GG).
Hardware Used
10
W
M6
Nut
x 4
GG
L
X
