ASSEMBLY INSTRUCTIONS

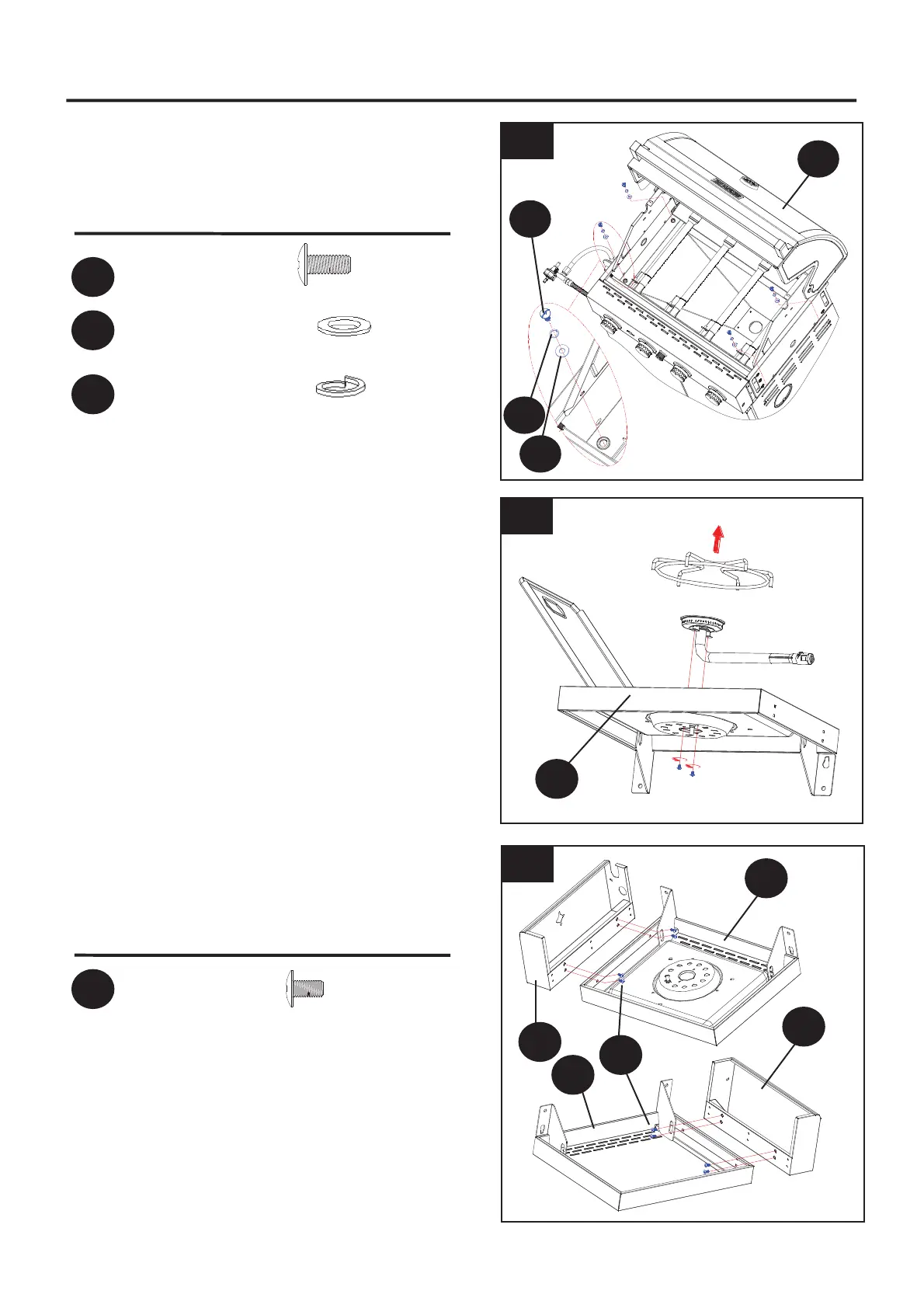

10. Attach Firebox Assembly (A) to the top of
the cabinet assembly
and fasten the
screws and washers as shown.
Hardware Used
M6x16 mm Screw x4
¶6 Flat Washer x4
¶6 Spring Washer x4
11. Remove the trivet from the Side Burner
Assembly (I), then untighten the scr
ews
and remove the side burner as shown.
12. Attach the Side Burner Support (J) to the
Side Burner Assembly (I). Attach the Right
Shelf Support (H) to the Right Shelf (G)
.
Hardware Used
M4x8 mm Screw x8
