Master Forge CBC23032L User Manual

10

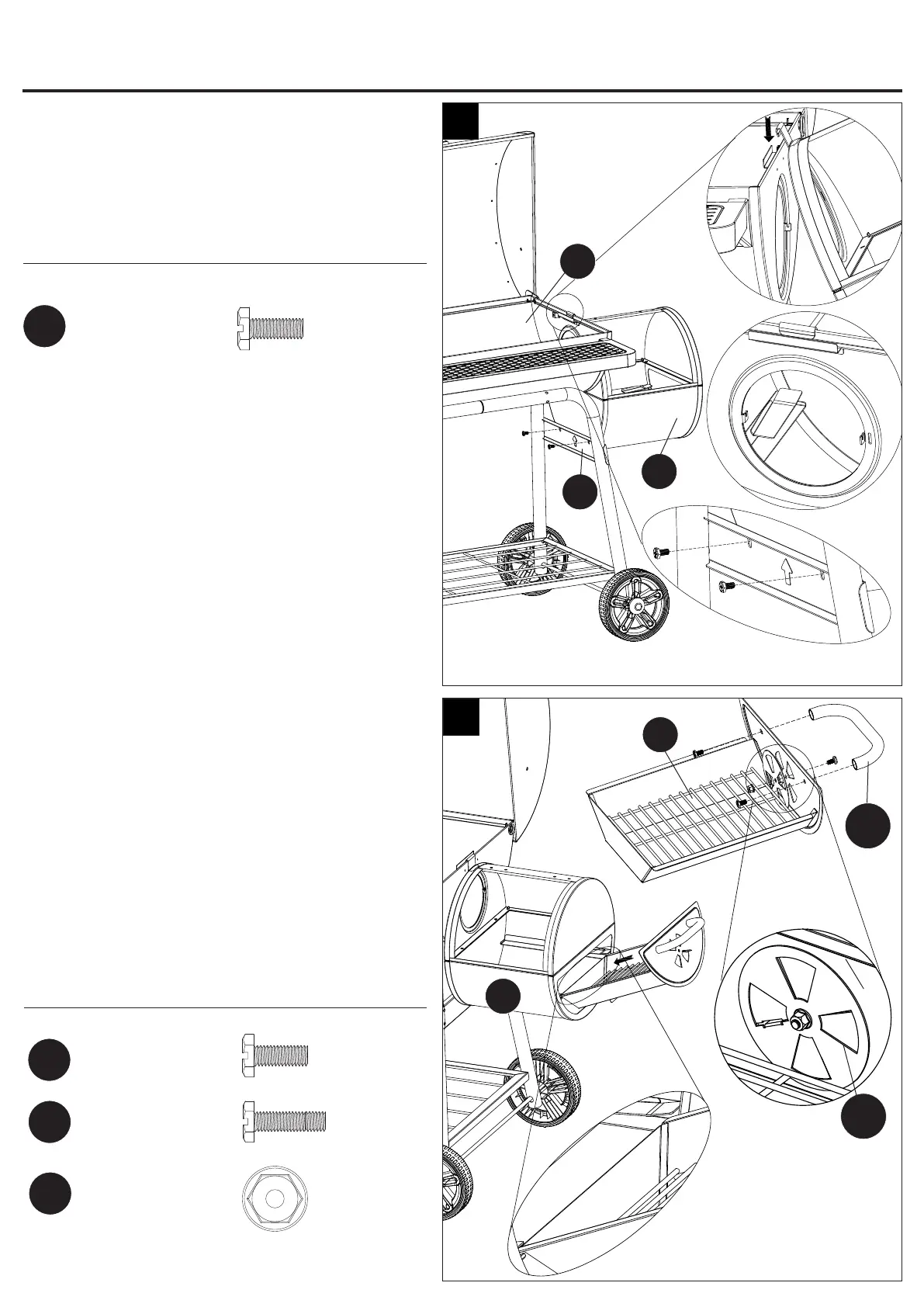

ASSEMBLY INSTRUCTIONS
Step 11: Attach SFB
Hang the SFB body top onto the bottom bowl (I).
Attach the SFB body (X) to the Leg Brace (M)
with two M6x12 bolts (BB).
Step 12: Attach SFB Side Handle, SFB Damper
and SFB Charcoal Pan
Attach the SFB side handle (AA) onto the SFB
charcoal pan (Z) with two M6x20 bolts (CC).
Attach the SFB damper (AB) onto the SFB
charcoal pan (Z) with one M6x12 bolt (BB) and
M6 nut (GG).
Insert the SFB charcoal pan (Z) to the SFB body
(X).
Hardware Used
11
12
Hardware Used
M6x12
Bolt
BB
x 2
First
Second
Third
X
Z
X
I
M6x12
Bolt
BB
x 1
M6
Nut
x 1
GG
AA
AB
M
M6x20
Bolt
CC
x 2
