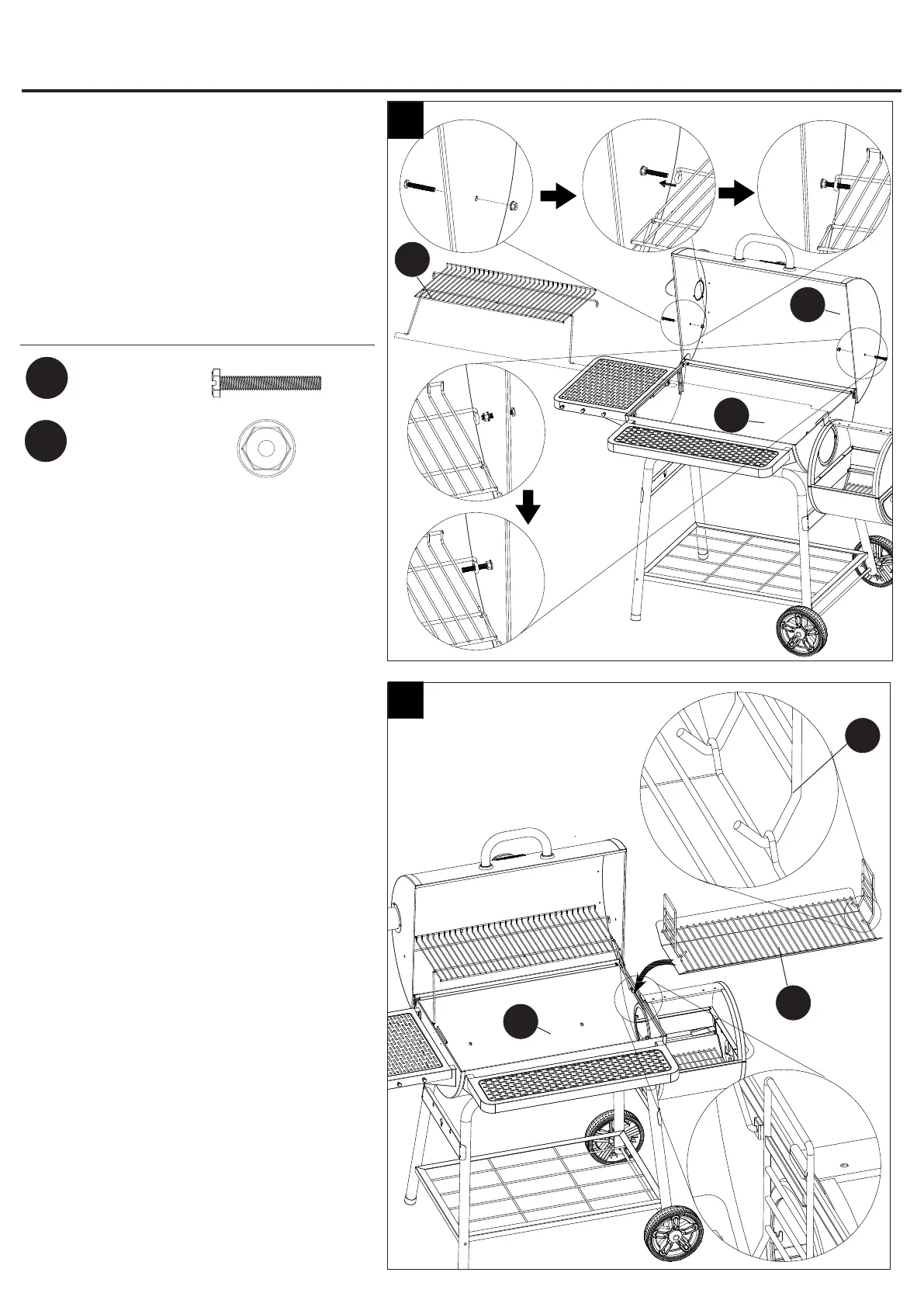

Step 13: Attach Warming Rack
Attach the warming rack (E) onto the lid (D)
and bottom bowl (I) with two M6x45 bolts
(DD) and M6 nuts (GG).
Note: Please attach each corner of the
warming rack (E) in order shown in Fig.13.
Hardware Used
13
ASSEMBLY INSTRUCTIONS
First
Second
Third
Fourth
E
D
I
I
M6x45
Bolt
DD
x 2
GG
M6
Nut
x 2
Step 14: Place Charcoal Pan and
Charcoal Pan Handle
Place the charcoal pan (G) and charcoal
pan handle (J) into the bottom bowl (I).
Note: Hang the charcoal pan handle (J) on
either side support of the bottom bowl (I).
