26

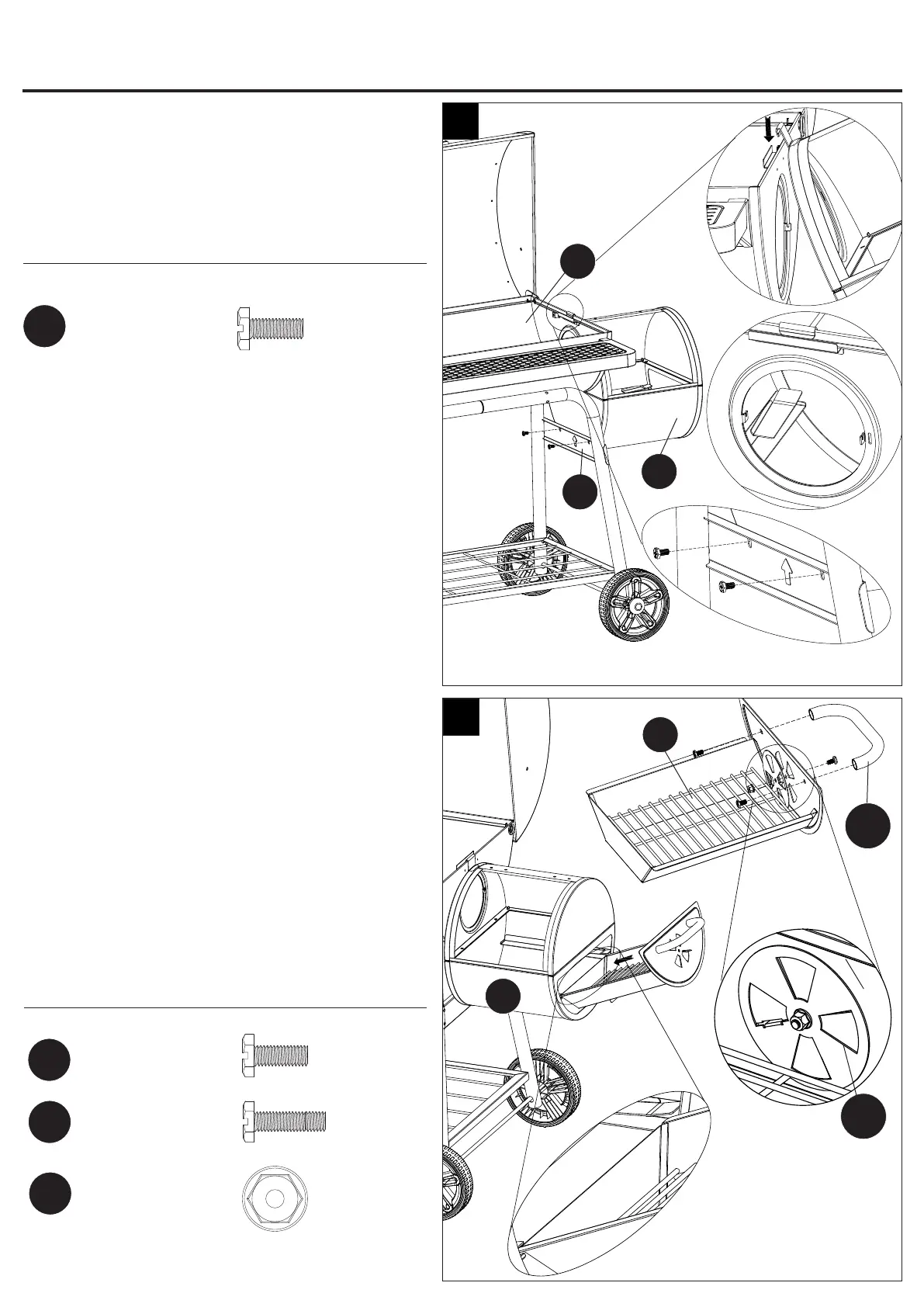

INSTRUCCIONES DE ENSAMBLAJE
Paso 11: je el SFB
Cuelgue la parte superior del cuerpo del SFB en la
fuente inferior (I).
Fije el cuerpo del SFB (X) al soporte de la pata (M) con
dos pernos M6x12 (BB).
Paso 12: je la manija lateral del SFB, el regulador de
tiro del SFB y la bandeja para carbón del SFB
Fije la manija lateral del SFB (AA) en la bandeja para
carbón del SFB (Z) con dos pernos M6x20 (CC).
Fije el regulador de tiro del SFB (AB) en la bandeja para
carbón del SFB (Z) con un perno M6x12 (BB) y una
tuerca M6 (GG).
Inserte la bandeja para carbón del SFB (Z) en el cuerpo
del SFB (X).
Aditamentos utilizados
11
12
Aditamentos utilizados
Perno
M6x12
BB
x 2
Primero
Segundo
Tercero
X
Z
X
I
Perno
M6x12
BB
x 1
Tuerca
M6
x 1
GG
AA
AB
M
Perno
M6x20
CC
x 2
