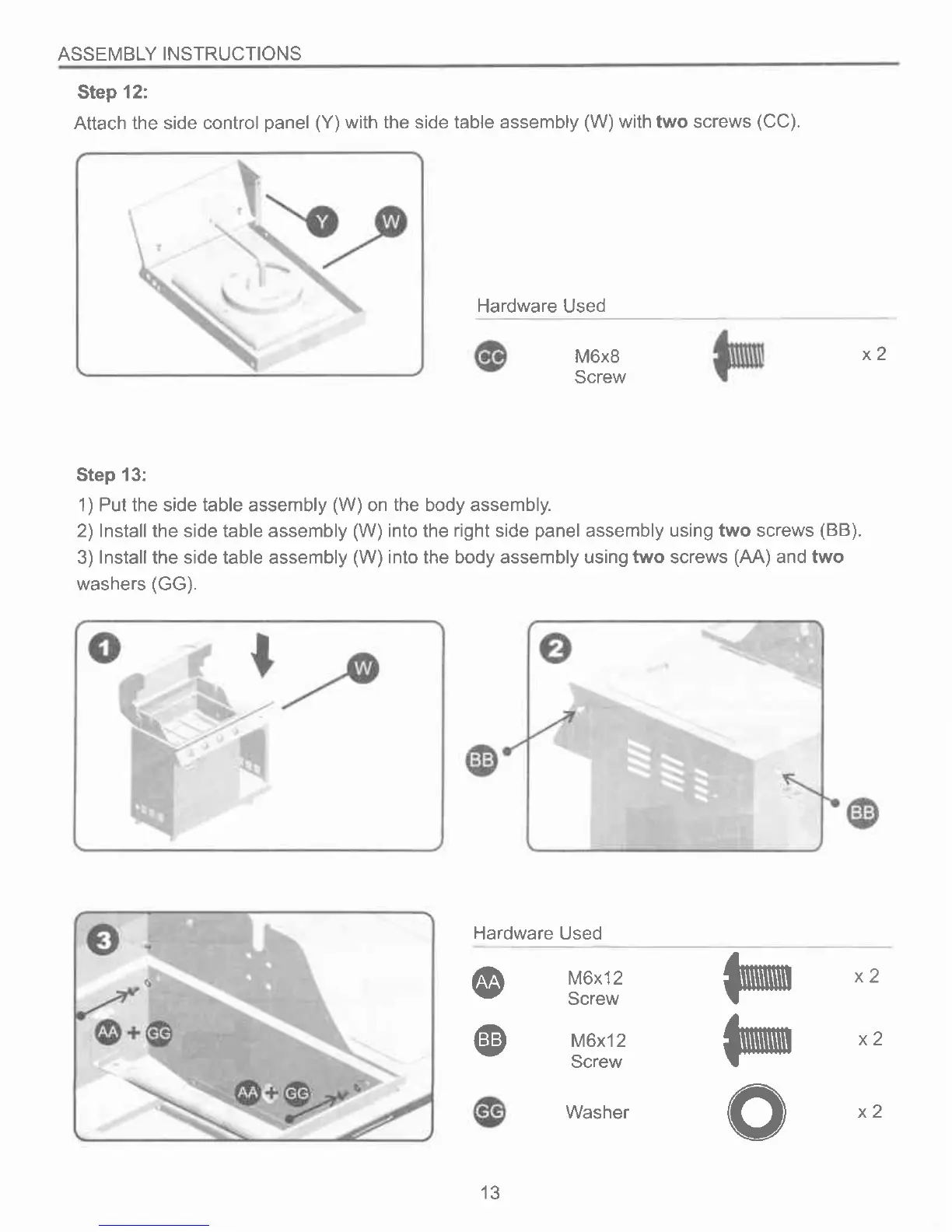

ASSEMBLY INSTRUCTIONS
Step
12:
Attach
the side control
panel
(Y)
with the side table assembly
(W)
with two screws
(CC).
x2
Hardware Used
M6xB
Screw
Step 13:
1) Put the side table assembly
(W)
on
the
body assembly.
2) lnstall the side table assembly
(W)
into the
right
side
panel
assembly
using two screws
(BB).
3)
lnstall
the side table assembly
(W)
into the body assembly using
two
screws
(AA)
and two
washers
(GG).
Hardware Used
@
@
$*
$N
o
M6x12
Screw
M6x12
Screw
Washer
x2
13
x2
